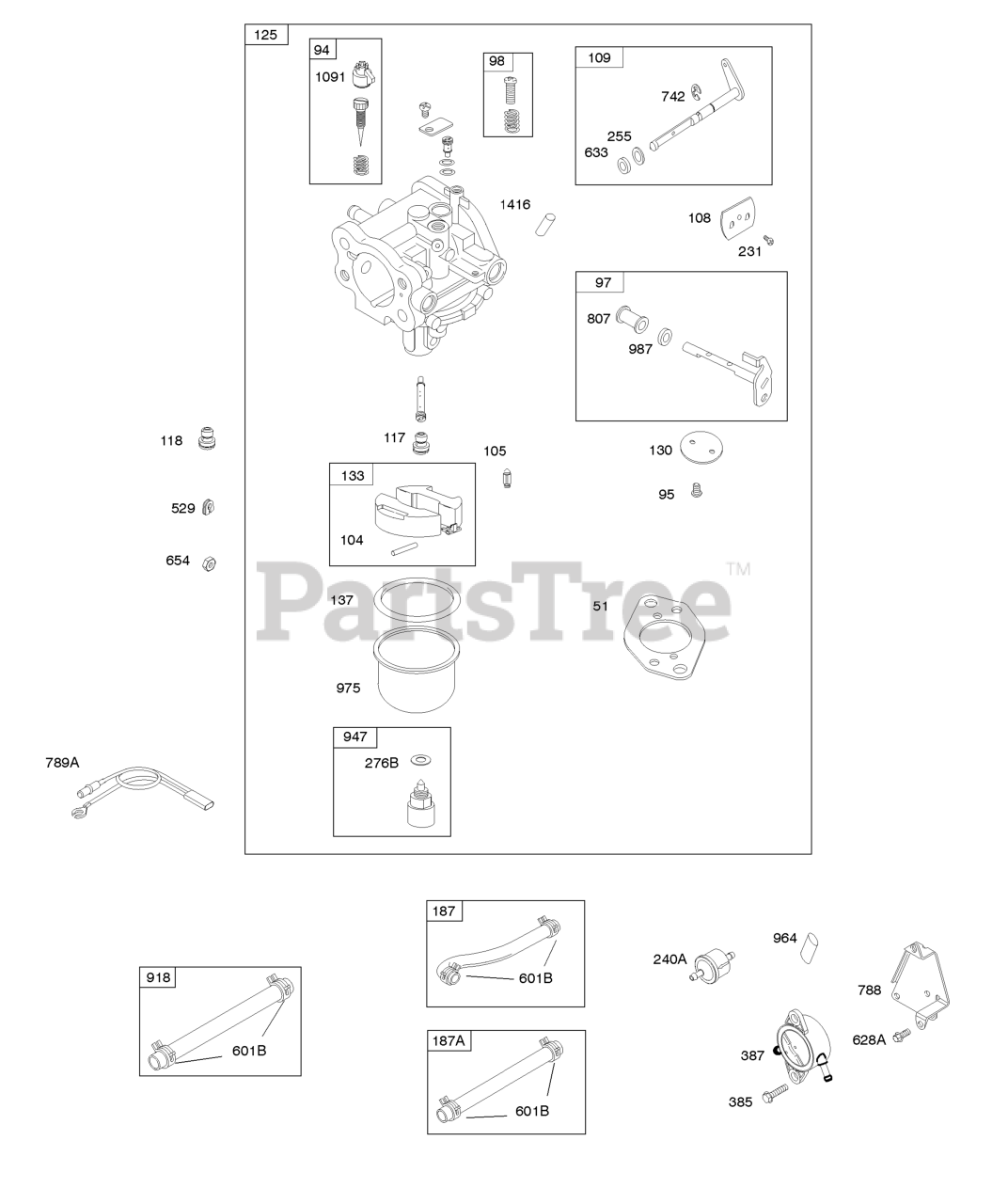

385877-0001-B1 - Briggs & Stratton Vertical Engine Carburetor, Fuel Supply, Cylinder Heads Parts Diagram

Vertical Engine

Carburetor, Fuel Supply, Cylinder Heads Parts Diagram

  • Title

94

Briggs & Stratton 844935

Kit-Idle Mixture

$31.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 690718

SCREW

Note: (Throttle Valve)

$5.99

$

Usually ships in 2-12 days

0

97

Briggs & Stratton 844934

Shaft-Throttle

$53.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 807705

Kit-Idle Speed

$13.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 844906

Pin-Float Hinge

$10.99

$

Usually ships in 2-12 days

0

105

Briggs & Stratton 844907

Valve-Float Needle

$42.99

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 844903

Valve-Choke

Note: (No Longer Available, For Replacement See Reference 125)

$7.99

$

Usually ships in 2-12 days

0

109

Briggs & Stratton 844913

Shaft-Choke

$39.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 844936

Jet-Main

Note: (Standard)

$17.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 845469

Jet-Main

Note: (High Altitude) (5000 Feet)

$20.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 845837

Jet-Main

Note: (High Altitude) (9000 Feet)

$22.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 845836

Carburetor

$302.99

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 806470

Valve-Throttle

$10.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 844905

Float-Carburetor

$31.99

$

Usually ships in 2-12 days

0

137

Briggs & Stratton 844908

Gasket-Float Bowl

$11.99

$

Usually ships in 2-12 days

0

231

Briggs & Stratton 690718

SCREW

Note: (Choke Valve)

$5.99

$

Usually ships in 2-12 days

0

240B

Briggs & Stratton 691035

FILTER, Fuel
(Superseded to 84001895)

Note: (Includes Paper Element With A 40 Micron Rating)

$7.99

$

In Stock, Qty 20+

0

255

Briggs & Stratton 690737

Bushing-Choke Shaft

$8.49

$

Usually ships in 2-12 days

0

276B

Briggs & Stratton 806476

Washer-Sealing

Note: (Fuel Solenoid)

$6.99

$

In Stock, only 2 left!

0

385

Briggs & Stratton 807084

SCREW

Note: (Fuel Pump)

$3.49

$

In Stock, Qty 7

0

387

Briggs & Stratton 808656

PUMP, Fuel
(Superseded to 597338)

$27.99

$

In Stock, Qty 20+

0

529

Briggs & Stratton 690744

Grommet

$7.49

$

Usually ships in 2-12 days

0

601B

Briggs & Stratton 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

628A

Briggs & Stratton 806660

Screw

Note: (Fuel Pump Bracket) (M8x18mm)

$3.99

$

In Stock, only 1 left!

0

633

Briggs & Stratton 690738

Seal-Choke/Throttle Shaft

$11.99

$

Usually ships in 2-12 days

0

654

Briggs & Stratton 690939

NUT

Note: (Carburetor)

$3.49

$

In Stock, only 2 left!

0

742

Briggs & Stratton 805578

Retainer-E Ring

$4.99

$

Usually ships in 2-12 days

0

788

Briggs & Stratton 691559

Bracket-Fuel Pump

$24.99

$

In Stock, only 1 left!

0

789A

Briggs & Stratton 844914

Harness-Wiring

$42.99

$

Usually ships in 2-12 days

0

807

Briggs & Stratton 690733

Spacer-Throttle

$15.99

$

Usually ships in 2-12 days

0

918

Briggs & Stratton 791880

Hose-Vacuum

Note: (Cut To Required Length)

$11.99

$

Usually ships in 2-12 days

0

947

Briggs & Stratton 844911

Solenoid-Fuel

$136.99

$

Usually ships in 2-12 days

0

964

Briggs & Stratton 590799

CAP, Connector

$9.49

$

Usually ships in 2-12 days

0

975

Briggs & Stratton 844909

Bowl-Float

$67.99

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 691548

Seal-Throttle Shaft

$5.99

$

Usually ships in 2-12 days

0

1091

Briggs & Stratton 691515

Cap-Limiter

$8.99

$

Usually ships in 2-12 days

0

1416

Briggs & Stratton 809640

Cap-Carburetor

Note: USE REFERENCE 964 ONLY

$10.99

$

Usually ships in 2-12 days

0
