38587 - Toro Power Clear Snow Thrower (SN: 311000001 - 311020000) (2011) SHROUD ASSEMBLY Parts Diagram

Power Clear Snow Thrower

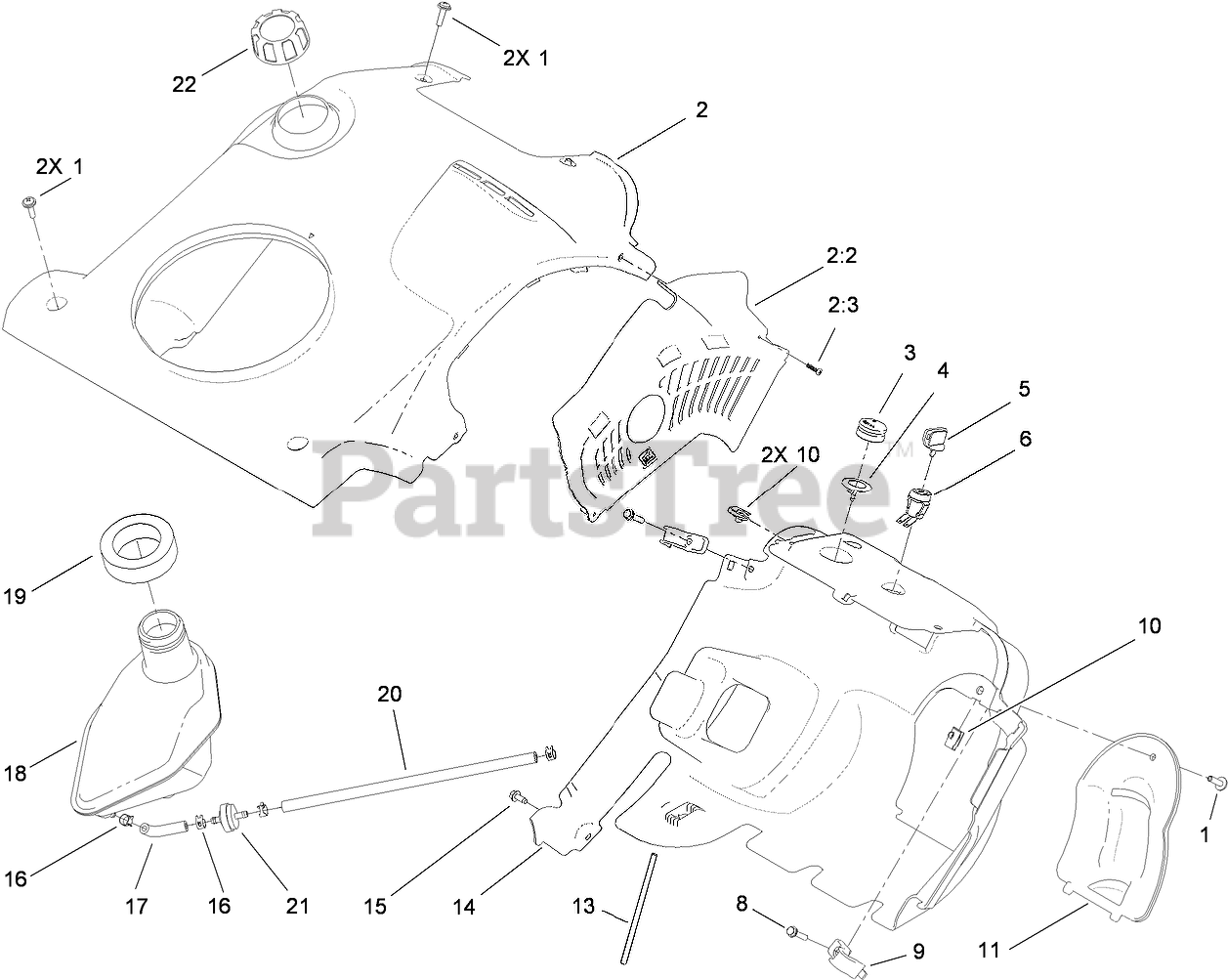

SHROUD ASSEMBLY Parts Diagram

  • Title

1

Toro 110-9361

SCREW-PPH
(Superseded to 137-3013)

$2.99

$

In Stock, Qty 20+

0

2

Toro 117-9127

SHROUD ASM

$

$

Not available

2:2

Toro 114-3793

BAFFLE-HEAT

$

$

Not available

2:3

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

3

Toro 66-7460

BULB-PRIMER

$6.49

$

In Stock, Qty 20+

0

4

Toro 44-2750

BODY-PRIMER

$8.99

$

In Stock, Qty 20+

0

5

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

6

Toro 40-5940

SWITCH

$15.99

$

In Stock, only 1 left!

0

8

Toro 46-8092

SCREW-PLASTITE
(Superseded to 137-3101)

$1.49

$

In Stock, Qty 7

0

9

Toro 108-4947

CLIP-SHROUD

$3.49

$

In Stock, only 3 left!

0

10

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

11

Toro 108-4896

PANEL-ACCESS, CARBURETOR

$

$

Not available

13

Toro 114-3767

HOSE-PRIMER

$10.99

$

In Stock, only 1 left!

0

14

Toro 114-3752

SHROUD-LOWER

$

$

Not available

15

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

16

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

17

Toro 114-3765

HOSE-FUEL

$4.99

$

Usually ships in 3-6 days

0

18

Toro 108-4880

TANK-GAS
(Superseded to 120-9848)

$65.99

$

In Stock, only 2 left!

0

19

Toro 114-3773

SEAL-TANK

$3.49

$

In Stock, only 1 left!

0

20

Toro 114-3766

HOSE-FUEL

$11.99

$

In Stock, Qty 9

0

21

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, Qty 6

0

22

Toro 104-4133

GAS CAP ASM

$14.99

$

In Stock, only 1 left!

0
