38587 - Toro Power Clear Snow Thrower (SN: 310000001 - 310999999) (2010) ROTOR DRIVE ASSEMBLY Parts Diagram

Power Clear Snow Thrower

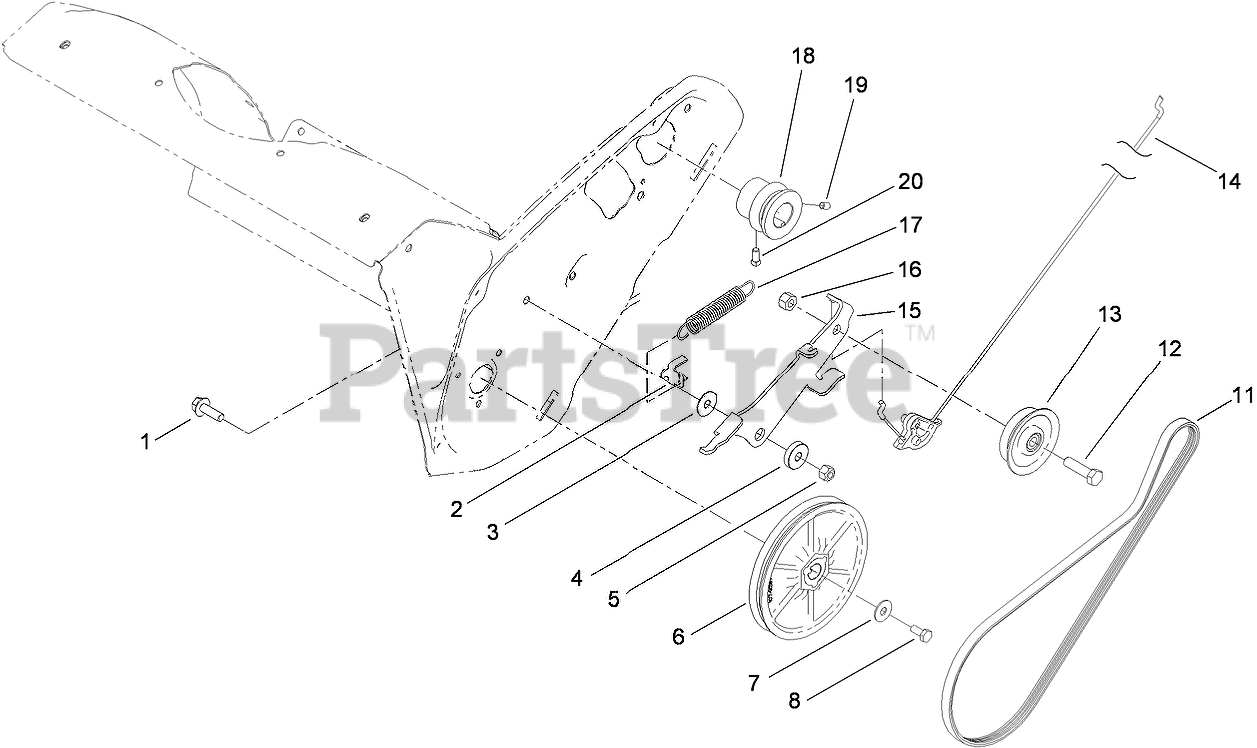

ROTOR DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

2

Toro 108-4938

CLIP-SPRING, BRAKE
(Superseded to 136-7133)

$1.99

$

In Stock, Qty 20+

0

3

Toro 108-4925

WASHER

$1.99

$

In Stock, Qty 5

0

4

Toro 108-4916

BUSHING-PIVOT

$2.99

$

In Stock, only 2 left!

0

5

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

6

Toro 107-9287

ROTOR PULLEY ASM

$19.99

$

In Stock, only 1 left!

0

7

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

8

Toro 110-9381

SCREW-HH

$1.99

$

In Stock, only 3 left!

0

11

Toro 108-4921

BELT-DRIVE

$20.99

$

In Stock, Qty 7

0

12

Toro 323-29

SCREW-HH

$0.99

$

In Stock, Qty 16

0

13

Toro 114-3785

PULLEY-IDLER

$13.99

$

In Stock, only 1 left!

0

14

Toro 117-9145

CABLE-CLUTCH

$19.99

$

In Stock, only 1 left!

0

15

Toro 114-3782

ARM-IDLER
(Superseded to 136-7138)

$11.99

$

In Stock, only 2 left!

0

16

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

17

Toro 114-3788

SPRING-EXTENSION
(Superseded to 121-6630)

$5.49

$

In Stock, Qty 5

0

18

Toro 107-9291

PULLEY-3 GROOVE

$

$

Not available

19

Toro 3245-32

SCREW-HSH

$5.49

$

In Stock, only 3 left!

0

20

Toro 3241-7

SCREW-SQH

$3.99

$

In Stock, only 2 left!

0
