38585 - Toro Power Clear Snow Thrower (SN: 290000001 - 290999999) (2009) ENGINE ASSEMBLY NO. 1 TECUMSEH LH195SP-67529D Parts Diagram

Power Clear Snow Thrower

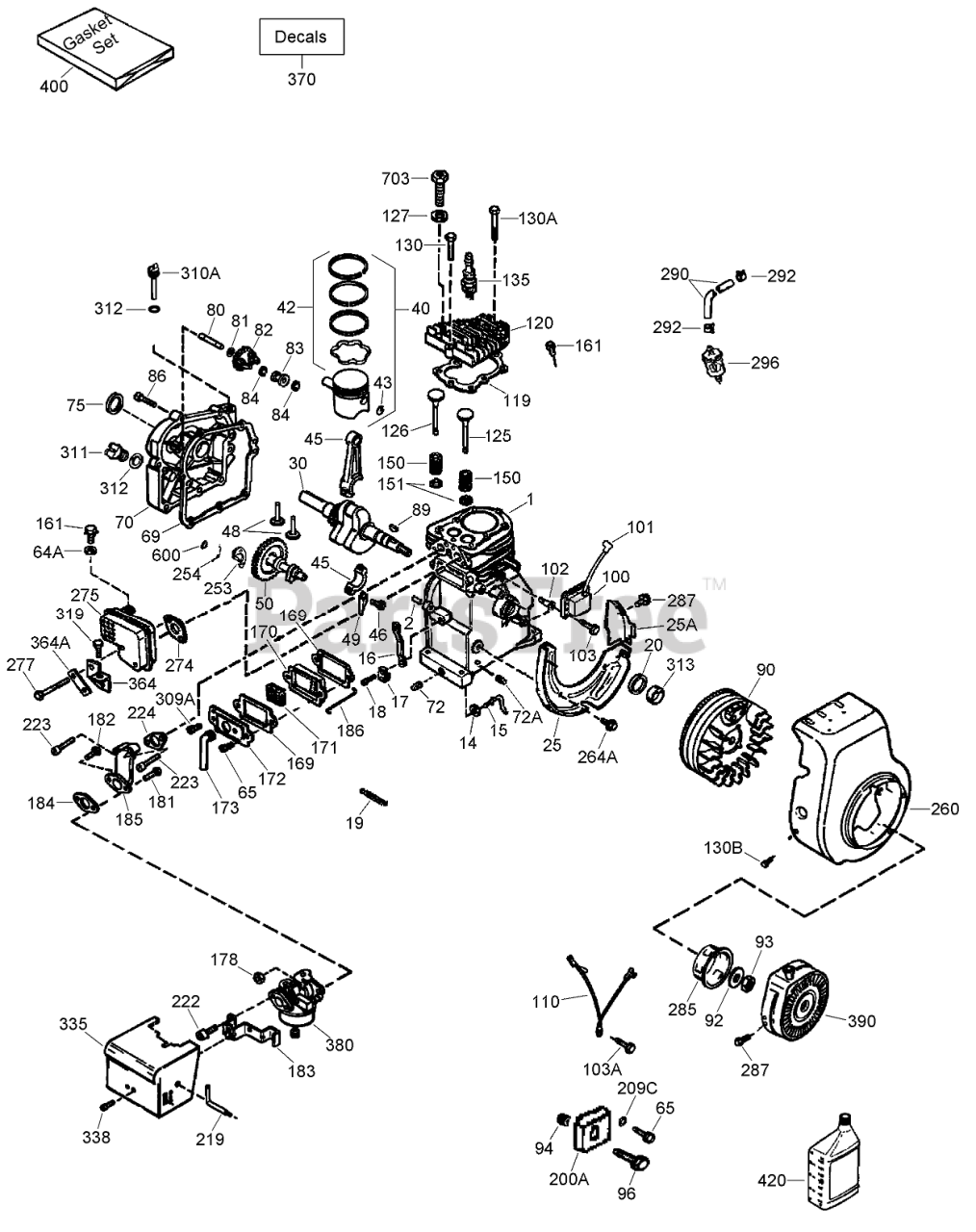

ENGINE ASSEMBLY NO. 1 TECUMSEH LH195SP-67529D Parts Diagram

  • Title

1

Tecumseh 36469A

Cylinder Asm (Includes 2, 20, 72, 125)

Note: Original Tecumseh Part

$

$

Not available

2

Tecumseh 26727

Pin-Dowel

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 5

0

14

Tecumseh 28277

Washer-Flat

Note: Original Tecumseh Part

$1.99

$

In Stock, only 4 left!

0

15

Tecumseh 31334

Rod-Governor

Note: Original Tecumseh Part

$5.49

$

In Stock, only 1 left!

0

16

Tecumseh 37729

Chute Idler Arm ASM

Note: Original Tecumseh Part

$8.49

$

In Stock, only 1 left!

0

17

Tecumseh 31335

Clamp-Lever, Governor

Note: Original Tecumseh Part

$1.99

$

In Stock, only 3 left!

0

18

Tecumseh 651018

Screw (T-15, 8-32 x 19/64)

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 9

0

19

Tecumseh 30342

Spring-Extension

Note: Original Tecumseh Part

$3.99

$

Usually ships in 3-12 days

0

20

Tecumseh 32600

Seal-Oil

Note: Original Tecumseh Part

$

$

Not available

25

Tecumseh 36552

Baffle-Housing, Blower

Note: Original Tecumseh Part

$9.49

$

Usually ships in 3-12 days

0

25A

Tecumseh 35883

Extension-Baffle

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 5

0

30

Tecumseh 37842

Crankshaft

Note: Original Tecumseh Part

$118.99

$

In Stock, only 1 left!

0

40

Tecumseh 40005

Piston, Pin and Ring Set (.010 O S) (Includes 41-43)
(Superseded to 40045)

Note: Original Tecumseh Part

$

$

Not available

40

Tecumseh 40004

Piston, Pin and Ring Set (Std) (Includes 41-43)

Note: Original Tecumseh Part

$74.99

$

In Stock, only 1 left!

0

42

Tecumseh 40007

Ring Set (.010 O S)
(Superseded to 40045)

Note: Original Tecumseh Part

$

$

Not available

42

Tecumseh 40006

Ring Set (STD)

Note: Original Tecumseh Part

$42.99

$

Usually ships in 3-12 days

0

43

Tecumseh 20381

Ring-Retaining, Piston Pin

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 7

0

45

Tecumseh 32875A

Connecting Rod Asm (Includes 46, 49)

Note: Original Tecumseh Part

$47.99

$

Usually ships in 3-12 days

0

46

Tecumseh 32610A

Bolt-Rod, Connecting

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 6

0

48

Tecumseh 37670

Lifter-Valve

Note: Original Tecumseh Part

$

$

Not available

49

Tecumseh 32654

Dipper-Oil

Note: Original Tecumseh Part

$8.99

$

In Stock, only 4 left!

0

50

Tecumseh 37671

Camshaft (M C R)
(Superseded to 36620)

Note: Original Tecumseh Part

$30.99

$

In Stock, only 1 left!

0

64A

Tecumseh 8345

Washer

Note: Original Tecumseh Part

$1.99

$

In Stock, only 2 left!

0

65

Tecumseh 30200

Screw (10-24 x 9/16)

Note: Original Tecumseh Part

$1.49

$

In Stock, Qty 10

0

69

Tecumseh 27677A

Gasket-Cover, Cylinder

Note: Original Tecumseh Part

$7.49

$

In Stock, Qty 7

0

70

Tecumseh 32700B

Cover-Cylinder (Includes 75-83, 311)

Note: Original Tecumseh Part

$

$

Not available

72

Tecumseh 27642

Plug-Drain, Oil (SQH 1/4-18)

Note: Original Tecumseh Part

$1.99

$

In Stock, only 2 left!

0

72A

Tecumseh 28582

Plug-Pipe (Internal Hex, 1/4-18)

Note: Original Tecumseh Part

$1.99

$

In Stock, only 1 left!

0

75

Tecumseh 27897

Seal-Oil

Note: Original Tecumseh Part

$8.49

$

In Stock, only 2 left!

0

80

Tecumseh 30574A

Shaft-Governor

Note: Original Tecumseh Part

$7.49

$

In Stock, only 4 left!

0

81

Tecumseh 30590A

Washer-Flat

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 7

0

82

Tecumseh 30591

Governor Gear ASM

Note: Original Tecumseh Part

$13.99

$

In Stock, only 1 left!

0

83

Tecumseh 30588A

Spool-Governor

Note: Original Tecumseh Part

$1.99

$

In Stock, only 4 left!

0

84

Tecumseh 29193

Ring-Retaining

Note: Original Tecumseh Part

$1.99

$

In Stock, only 4 left!

0

86

Tecumseh 650488

Screw (1/4-20 x 1-1/4)

Note: Original Tecumseh Part

$1.99

$

Usually ships in 3-12 days

0

89

Tecumseh 610961

Key-Flywheel

Note: Original Tecumseh Part

$1.49

$

In Stock, Qty 20+

0

90

Tecumseh 611195

Flywheel

Note: Original Tecumseh Part

$

$

Not available

92

Tecumseh 650815

Washer-Belleville

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 10

0

93

Tecumseh 650816

Nut-Flywheel

Note: Original Tecumseh Part

$4.49

$

In Stock, Qty 6

0

94

Tecumseh 651016

Nut (10-32)

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 5

0

96

Tecumseh 30845A

Bolt-Adjusting, R.P.M.

Note: Original Tecumseh Part

$7.49

$

Usually ships in 3-12 days

0

100

Tecumseh 34443C

Ignition-State, Solid
(Superseded to 34443D)

Note: Original Tecumseh Part

$44.99

$

Usually ships in 3-12 days

0

101

Tecumseh 610118

Cover-Spark Plug

Note: Original Tecumseh Part

$6.49

$

In Stock, only 3 left!

0

102

Tecumseh 651024

Stud-Mounting, Solid State

Note: Original Tecumseh Part

$3.99

$

In Stock, only 2 left!

0

103

Tecumseh 651007

Screw (T-15, 10-24 x 15/16)

Note: Original Tecumseh Part

$1.99

$

In Stock, only 4 left!

0

103A

Tecumseh 650821

Screw (10-32 x 1/2)

Note: Original Tecumseh Part

$1.99

$

Usually ships in 3-12 days

0

110

Tecumseh 37682

Wire-Ground

Note: Original Tecumseh Part

$3.49

$

In Stock, only 2 left!

0

119

Tecumseh 36443

Gasket-Head, Cylinder

Note: Original Tecumseh Part

$5.99

$

In Stock, Qty 8

0

120

Tecumseh 37675

Head-Cylinder (Includes 130A)

Note: Original Tecumseh Part

$41.99

$

In Stock, only 1 left!

0

125

Tecumseh 36472

Valve-Exhaust (1/32 O S) (Includes 151)

Note: Original Tecumseh Part

$

$

Not available

125

Tecumseh 36471

Valve-Exhaust (STD) (Includes 151)

Note: Original Tecumseh Part

$13.99

$

Usually ships in 3-12 days

0

126

Tecumseh 32645A

Valve-Intake (1/32 O S) (Includes 151)

Note: Original Tecumseh Part

$61.99

$

In Stock, only 2 left!

0

126

Tecumseh 32644A

Valve-Intake (STD) (Includes 151)

Note: Original Tecumseh Part

$9.99

$

In Stock, only 1 left!

0

127

Tecumseh 650691

Washer-Flat

Note: Original Tecumseh Part

$1.99

$

Usually ships in 3-12 days

0

130

Tecumseh 6021A

Screw (5/16-18x1-1/2)

Note: Original Tecumseh Part

$1.99

$

In Stock, only 3 left!

0

130A

Tecumseh 650694A

Screw (5/16-18 X 2)

Note: Original Tecumseh Part

$3.49

$

In Stock, Qty 20+

0

130B

Tecumseh 650737

Screw (1/4-20 x 1/2)

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 6

0

135

Tecumseh 35395

Spark Plug-Resistor (R J19 L M)

Note: Original Tecumseh Part

$3.49

$

In Stock, Qty 20+

0
