38583 - Toro Power Clear Snow Thrower (SN: 280000001 - 280999999) (2008) ENGINE, FRAME AND WHEEL ASSEMBLY Parts Diagram

Power Clear Snow Thrower

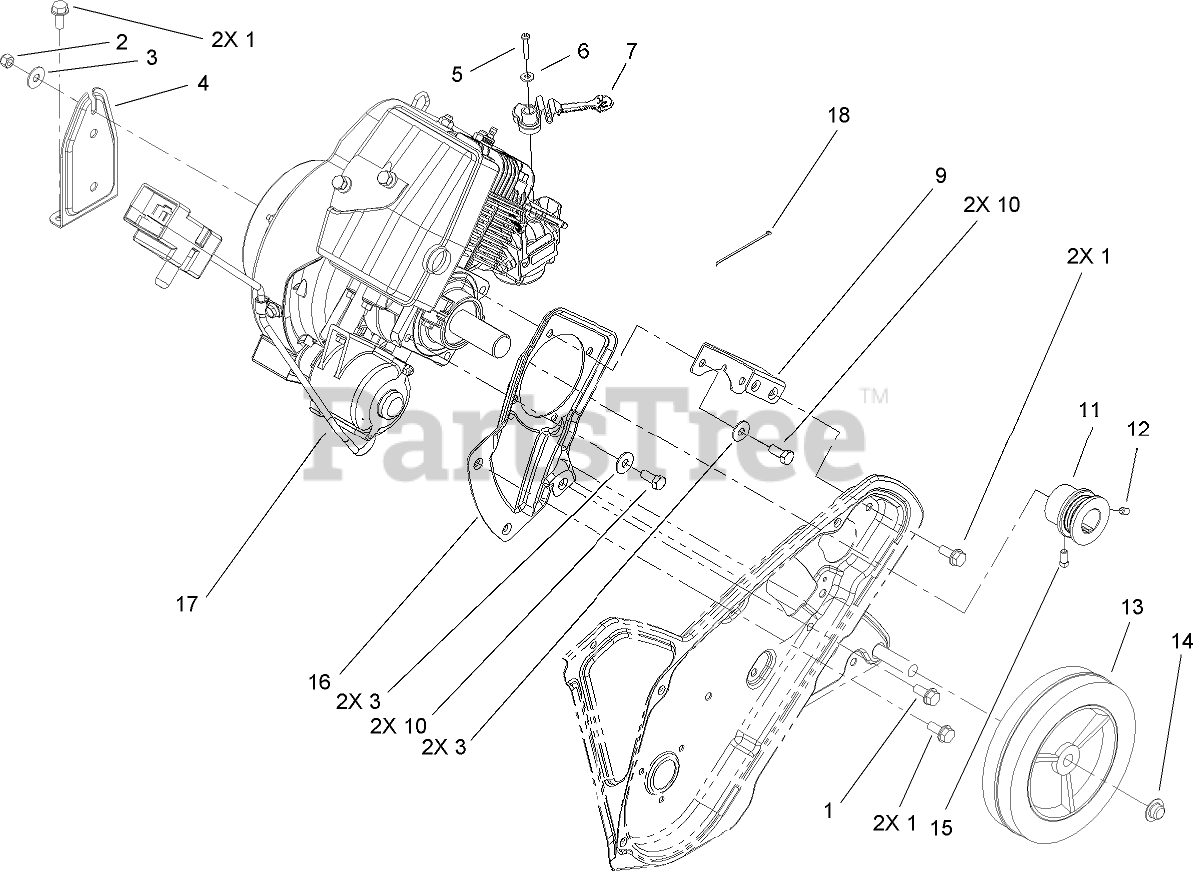

ENGINE, FRAME AND WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

2

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

3

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

4

Toro 108-4891-03

BRACKET-RECOIL

$7.99

$

Usually ships in 3-6 days

0

5

Toro 32144-97

SCREW-PPH, PLASTITE

$0.99

$

In Stock, Qty 11

0

6

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 110-9382

LEVER-CHOKE

$5.49

$

In Stock, only 1 left!

0

9

Toro 108-4888-03

SUPPORT-ENGINE, SIDE

$6.99

$

Usually ships in 3-6 days

0

10

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 107-9291

PULLEY-3 GROOVE

$67.99

$

Usually ships in 3-6 days

0

12

Toro 3245-32

SCREW-HSH

$5.49

$

In Stock, only 3 left!

0

13

Toro 66-6510

WHEEL

$24.99

$

In Stock, Qty 6

0

14

Toro 32112-14

NUT-PUSH

$2.99

$

In Stock, Qty 20+

0

15

Toro 3241-7

SCREW-SQH

$3.99

$

In Stock, only 2 left!

0

16

Toro 108-4890-03

PLATE-ENGINE, PTO

$

$

Not available

17

ENGINE-BRIGGS AND STRATTON, 084232-0121-E8

Note: Not serviced separately

$

$

Not available

17

ENGINE-BRIGGS AND STRATTON, 084232-0121-E8

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

18

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0
