38580 (1132) - Toro 32" Power Shift Snow Thrower (SN: 009000001 - 009999999) (1989) TRANSMISSION ASSEMBLY NO. 66-8030 Parts Diagram

32" Power Shift Snow Thrower

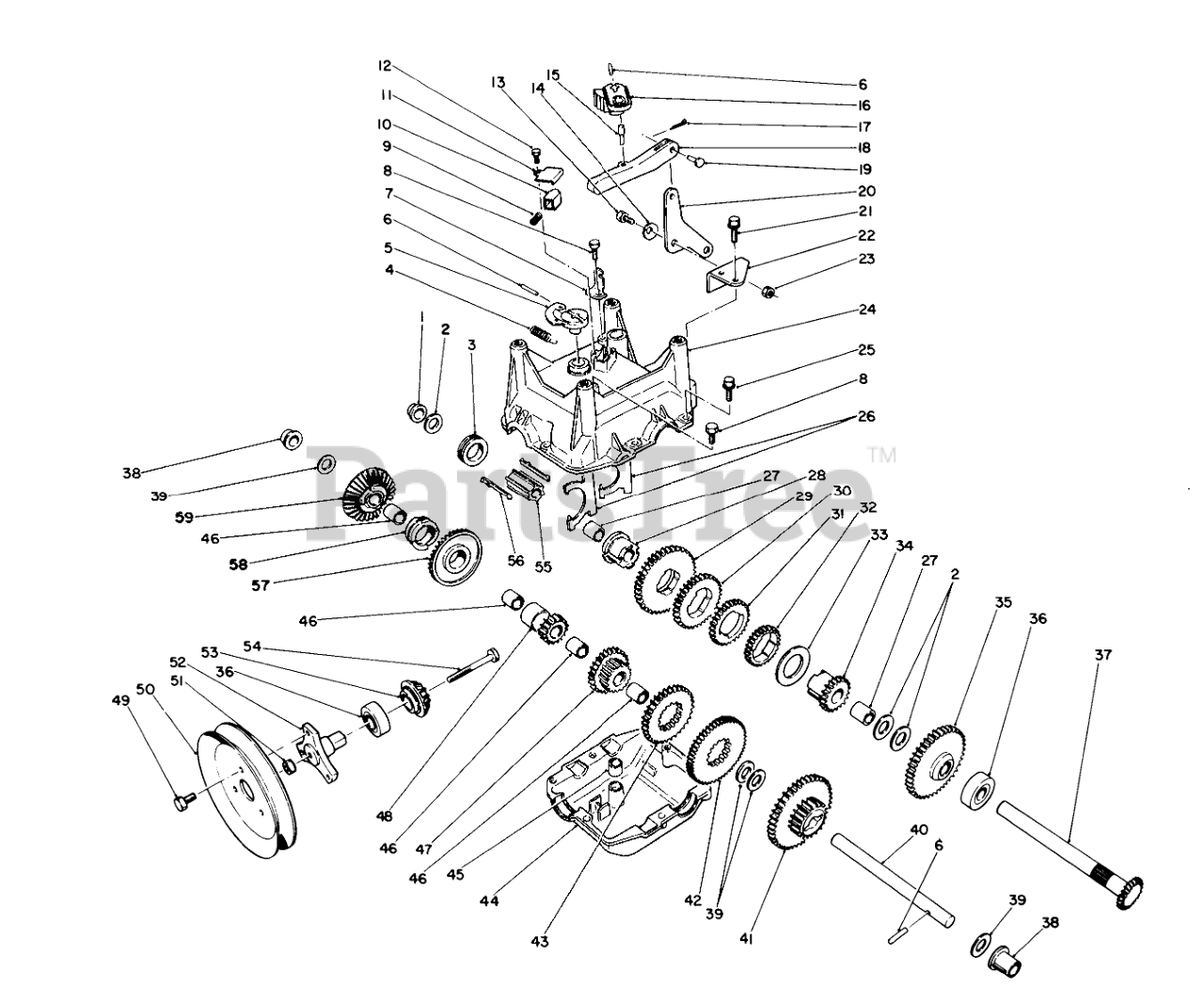

TRANSMISSION ASSEMBLY NO. 66-8030 Parts Diagram

  • Title
1

Toro 62-1180

BUSHING-FLANGE, OUTPUT

$18.99

$

In Stock, only 1 left!

0

2

Toro 252-59

BEARING-THRUST
(Superseded to 7418)

$7.49

$

In Stock, only 4 left!

0

3

Toro 62-0430

COLLAR-SHIFT

$24.99

$

In Stock, only 1 left!

0

4

Toro 63-2920

SPRING-EXTENSION

$12.99

$

Usually ships in 3-6 days

0

5

Toro 62-0880

LEVER

$11.99

$

In Stock, only 1 left!

0

6

Toro 32121-106

PIN-SPRING
(Superseded to 32121-108)

$6.99

$

Usually ships in 3-6 days

0

7

Toro 62-1740

BRACKET-CABLE

$

$

Not available

8

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

9

Toro 63-2890

SPRING-DETENT

$

$

Not available

10

Toro 62-1020

BUTTON-DETENT

$

$

Not available

11

Toro 62-1690

COVER-DETENT

$

$

Not available

12

Toro 32104-71

SCREW-HWH

$

$

Not available

13

Toro 63-3410

SCREW-SHOULDER

$3.99

$

Usually ships in 3-6 days

0

14

Toro 3290-477

WASHER-CURVED

$1.49

$

Usually ships in 3-6 days

0

15

Toro 63-2190

PIN-LINK, GEAR SHIFT

$

$

Not available

16

Toro 62-0870

LEVER-SHIFT, GEAR

$15.99

$

Usually ships in 3-6 days

0

17

Toro 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 16

0

18

Toro 62-0860

LINK-SHIFT, GEAR

$15.99

$

Usually ships in 3-6 days

0

19

Toro 283-3

PIN-CLEVIS

$0.99

$

In Stock, only 1 left!

0

20

Toro 63-2600

BELLCRANK

$

$

Not available

21

Toro 32104-95

SCREW-HWH

$0.99

$

Usually ships in 3-6 days

0

22

Toro 62-1190

BRACKET-BELLCRANK

$

$

Not available

23

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

24

Toro 62-0490

GEARCASE-UPPER, CASING

$162.99

$

Usually ships in 3-6 days

0

25

Toro 32144-86

SCREW-HWHTF

$1.49

$

In Stock, Qty 20+

0

26

Toro 62-1040

YOKE-SHIFT

$42.99

$

Usually ships in 3-6 days

0

27

Toro 62-1350

BUSHING-OUTPUT

$6.49

$

Usually ships in 3-6 days

0

28

Toro 62-0320

SLEEVE-GEAR
(Superseded to 107-2419)

$29.99

$

Usually ships in 3-6 days

0

29

Toro 62-0240

GEAR-45 T

$

$

Not available

30

Toro 62-0220

GEAR-34 T

$

$

Not available

31

Toro 62-0200

GEAR-27 T

$

$

Not available

32

Toro 62-0250

GEAR-29 T

$28.99

$

Usually ships in 3-6 days

0

33

Toro 63-2280

WASHER-THRUST

$

$

Not available

34

Toro 62-0340

GEAR-SLEEVE, 19 T
(Superseded to 107-2418)

$

$

Not available

35

Toro 62-0370

GEAR-41 T

$139.99

$

Usually ships in 3-6 days

0

36

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 18

0

37

Toro 62-1080

SHAFT-OUTPUT

$

$

Not available

38

Toro 62-1170

BUSHING-INTERMEDIATE

$18.99

$

Usually ships in 3-6 days

0

39

Toro 257-10

WASHER-THRUST

$3.49

$

Usually ships in 3-6 days

0

40

Toro 62-0330

SHAFT-INTERMEDIATE

$

$

Not available

41

Toro 62-0360

GEAR-19/41 T

$93.99

$

Usually ships in 3-6 days

0

42

Toro 62-0260

GEAR-51 T

$59.99

$

Usually ships in 3-6 days

0

43

Toro 62-0210

GEAR-33 T

$58.99

$

In Stock, only 1 left!

0

44

Toro 62-0480

GEARCASE-LOWER, CASING

$162.99

$

Usually ships in 3-6 days

0

45

Toro 29-9570

BUSHING-YOKE

$11.99

$

In Stock, only 4 left!

0

46

Toro 62-1160

Bushing-Output

$5.99

$

Usually ships in 3-6 days

0

47

Toro 68-4310

GEAR-26 T
(Superseded to 107-2417)

$

$

Not available

48

Toro 62-0500

GEAR-BEVEL, 15 T
(Superseded to 107-2416)

$41.99

$

Usually ships in 3-6 days

0

49

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

50

Toro 62-1310

TRACTION-SHEAVE, HALF

$

$

Not available

51

Toro 32128-32

NUT-HHF

$2.99

$

In Stock, only 2 left!

0

52

Toro 62-0380

HUB-PULLEY

$

$

Not available

53

Toro 62-0350

PINION-BEVEL

$50.99

$

Usually ships in 3-6 days

0

54

Toro 321-15

SCREW-HH

$1.49

$

In Stock, Qty 11

0

55

Toro 68-4320

SLEEVE-SHIFT

$12.99

$

In Stock, only 4 left!

0

56

Toro 62-0310

KEY-SHIFT

$37.99

$

In Stock, only 1 left!

0

57

Toro 67-5870

GEAR-BEVEL, 36 T

$95.99

$

Usually ships in 3-6 days

0

58

Toro 67-5880

COLLAR-SHIFT

$47.99

$

In Stock, only 3 left!

0

59

Toro 67-5860

Gear-Bevel, Rev, 36 T
(Superseded to 13-3559)

$84.99

$

Usually ships in 3-6 days

0
