38580 (1132) - Toro 32" Power Shift Snow Thrower (SN: 009000001 - 009999999) (1989) ENGINE BRIGGS & STRATTON MODEL 252416 TYPE 0756-01 & 0757-01 (MODEL NO. 38580 & 38565) Parts Diagram

32" Power Shift Snow Thrower

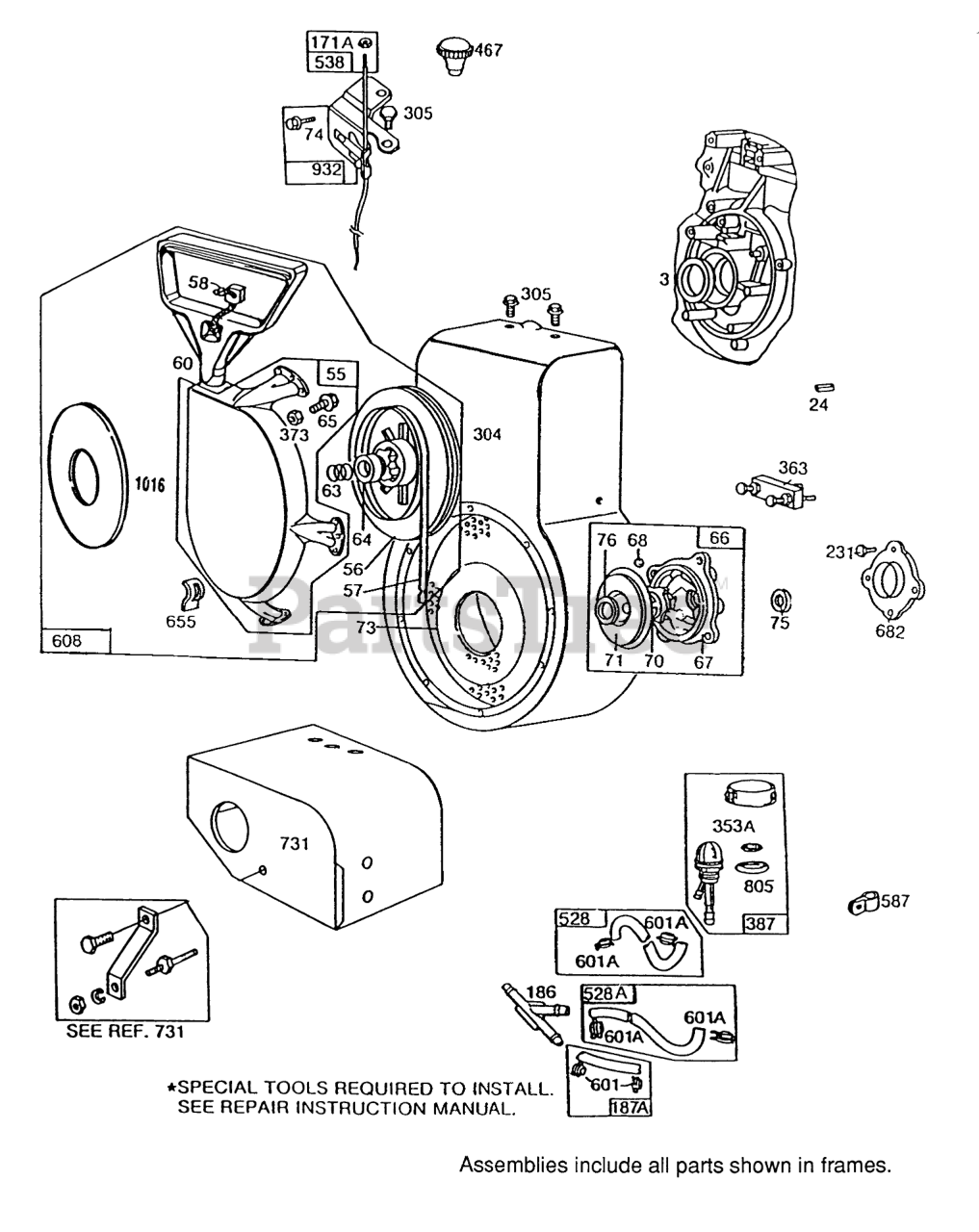

ENGINE BRIGGS & STRATTON MODEL 252416 TYPE 0756-01 & 0757-01 (MODEL NO. 38580 & 38565) Parts Diagram

  • Title

3

Briggs & Stratton 391086

Seal-Oil
(Superseded to 391086S)

$6.49

$

In Stock, Qty 20+

0

24

Briggs & Stratton 222698

Key
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

55

Briggs & Stratton 398099

Housing-Rewind Starter

$17.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 295871

Pulley-Rewind Starter (Includes 63" Rope)

$14.99

$

In Stock, Qty 20+

0

57

Briggs & Stratton 490179

Spring-Rewind

$

$

Not available

58

Briggs & Stratton 66884

Rope-Rewind
(Superseded to 692188)

$8.49

$

In Stock, only 1 left!

0

60

Briggs & Stratton 398101

Handle-Grip
(Superseded to 699334)

$13.99

$

In Stock, only 1 left!

0

63

Briggs & Stratton 260414

Spring
(Superseded to 690547)

$8.49

$

In Stock, Qty 5

0

64

Briggs & Stratton 230543

Adapter
(Superseded to 691920)

$11.99

$

In Stock, Qty 5

0

65

Briggs & Stratton 93105

Screw-Sem
(Superseded to 690837)

$3.49

$

In Stock, Qty 20+

0

66

Briggs & Stratton 399671

Clutch-Starter

$34.99

$

In Stock, Qty 20+

0

67

Briggs & Stratton 394897

Ball-Clutch

$36.99

$

In Stock, only 1 left!

0

68

Briggs & Stratton 63770

Ball
(Superseded to 691604)

$

$

Not available

70

Briggs & Stratton 298799

Ratchet
(Superseded to 691945)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 221653

Washer
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

73

Briggs & Stratton 221796

Screen
(Superseded to 691754)

$31.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 93042

Screw
(Superseded to 691078)

$4.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 220865

Washer
(Superseded to 690582)

$4.49

$

In Stock, only 4 left!

0

76

Briggs & Stratton 68238

Washer
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

171A

Briggs & Stratton 90356

Nut
(Superseded to 690276)

$3.99

$

Usually ships in 2-12 days

0

186

Briggs & Stratton 280727

Connector

$5.99

$

Usually ships in 2-12 days

0

187A

Briggs & Stratton 393815

Line-Vacuum
(Superseded to 791880)

$11.99

$

Usually ships in 2-12 days

0

231

Briggs & Stratton 94238

Screw

$3.99

$

Usually ships in 2-12 days

0

304

Briggs & Stratton 392738

Housing-Blower
(Superseded to 490446)

$49.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 93158

Screw
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

353A

Briggs & Stratton 94281

Washer

$4.99

$

Usually ships in 2-12 days

0

363

Briggs & Stratton 19203

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

373

Briggs & Stratton 92987

Nut
(Superseded to 690800)

$3.99

$

In Stock, Qty 13

0

387

Briggs & Stratton 399255

Primer

$

$

Not available

467

Briggs & Stratton 391908

Knob

$6.49

$

Usually ships in 2-12 days

0

474A

Briggs & Stratton 391595

Stator-Alternator

$98.99

$

Usually ships in 2-12 days

0

474B

Briggs & Stratton 393474

Alternator
(Superseded to 592831)

$101.99

$

In Stock, Qty 8

0

528

Briggs & Stratton 399256

Hose-Fuel
(Superseded to 793006)

$8.49

$

Usually ships in 2-12 days

0

528A

Briggs & Stratton 399254

Hose-Fuel

$9.49

$

Usually ships in 2-12 days

0

538

Briggs & Stratton 396085

Rod-Control

$46.99

$

Usually ships in 2-12 days

0

587

Briggs & Stratton 220162

Clamp
(Superseded to 690389)

$3.99

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 93807

Clamp-Hose
(Superseded to 691038)

$3.99

$

In Stock, Qty 17

0

601A

Briggs & Stratton 94171

Clamp
(Superseded to 691638)

$4.99

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 397982

Nut-Hex.

$

$

Not available

655

Briggs & Stratton 222598

Anchor Spring
(Superseded to 691734)

$4.99

$

Usually ships in 2-12 days

0

682

Briggs & Stratton 211516

Shield

$4.49

$

Usually ships in 2-12 days

0

731

Briggs & Stratton 490173

Hood

$46.99

$

Usually ships in 2-12 days

0

805

Briggs & Stratton 94189

Nut

$4.49

$

Usually ships in 2-12 days

0

932

Briggs & Stratton 396084

Guide-Rod

$32.99

$

Usually ships in 2-12 days

0

1016

Briggs & Stratton 490817

Spacer

$9.49

$

In Stock, Qty 5

0
