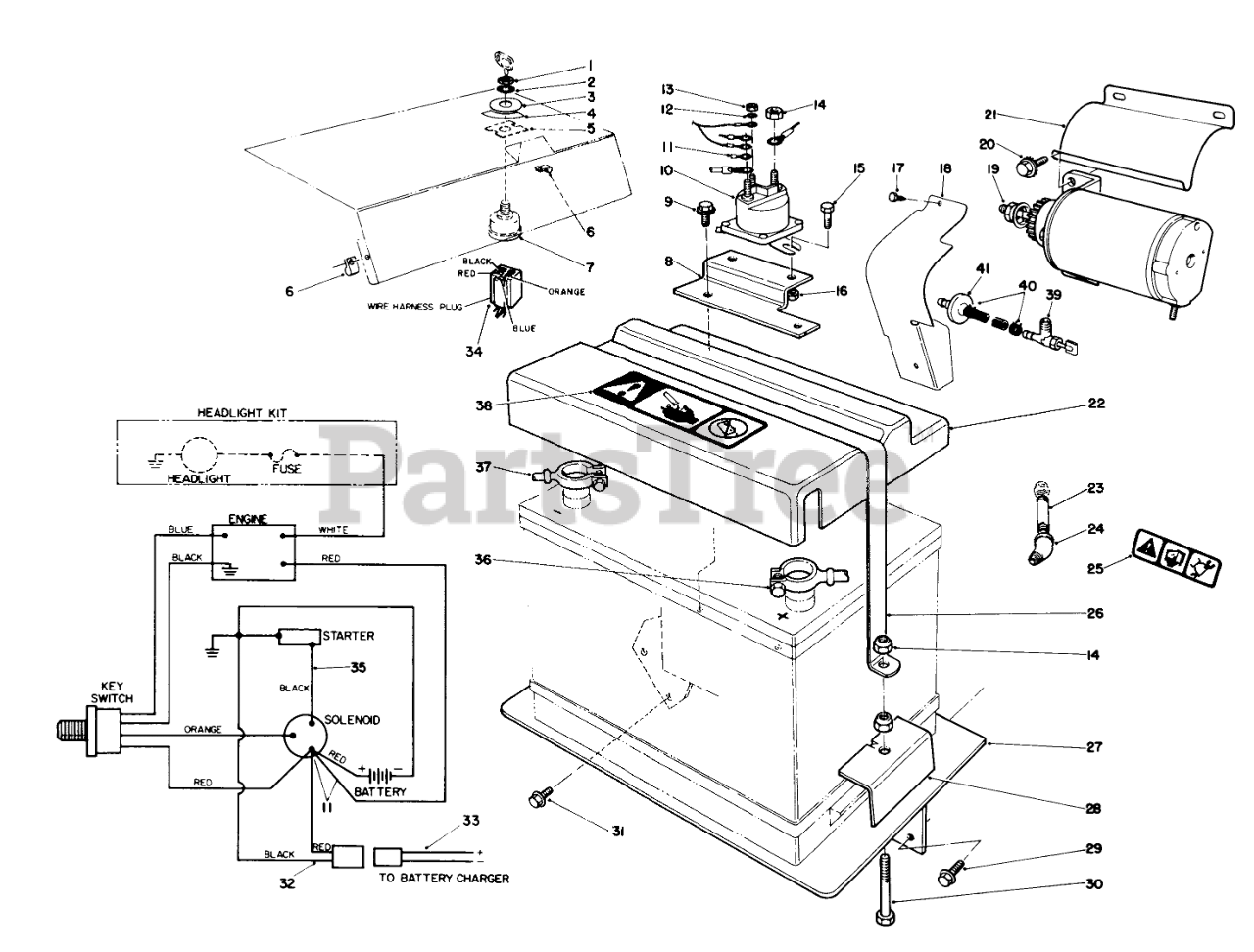

38580 (1132) - Toro 32" Power Shift Snow Thrower (SN: 009000001 - 009999999) (1989) 12 VOLT STARTER MOTOR KIT NO. 66-7700 (OPTIONAL) (FOR MODEL NO. 38565) Parts Diagram

32" Power Shift Snow Thrower

12 VOLT STARTER MOTOR KIT NO. 66-7700 (OPTIONAL) (FOR MODEL NO. 38565) Parts Diagram

  • Title
1

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

2

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

3

Toro 66-7690

WASHER

$

$

Not available

4

Toro 66-7660

DECAL

$

$

Not available

5

Toro 66-7680

ADAPTER

$

$

Not available

6

Toro 2412-101

R CLAMP

$

$

Not available

7

Toro 23-0660

Switch-Starter (Incl.Ref. #1-2)

$22.99

$

In Stock, only 1 left!

0

8

Toro 66-7630

BRACKET

$

$

Not available

9

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 9

0

10

Toro 6-1600

SOLENOID

$72.99

$

Usually ships in 3-6 days

0

11

Toro 218-575

RING TONGUE TERMINAL

$

$

Not available

12

Toro 3254-1

WASHER-LOCK, INT

$0.99

$

Usually ships in 3-6 days

0

13

Toro 3219-14

NUT-HEX

$0.99

$

In Stock, only 1 left!

0

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

15

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

16

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

17

Briggs & Stratton 93984

Screw
(Superseded to 691002)

$8.49

$

In Stock, only 2 left!

0

18

Toro 280265

Shield-Pinion

$

$

Currently unavailable

19

Briggs & Stratton 490420

Starter Motor Ass-y
(Superseded to 795121)

$143.99

$

In Stock, Qty 20+

0

20

Briggs & Stratton 93535

Crew
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

21

Briggs & Stratton 222592

Shield-Dip
(Superseded to 692860)

$31.99

$

Usually ships in 2-12 days

0

22

Toro 22-8900

BATTERY COVER

$

$

Not available

23

Toro 289-36

NIPPLE 3/8NPTX 1.50

$

$

Not available

24

Toro 2811-3

ELBOW

$

$

Not available

25

Toro 63-3470

DECAL-WARNING

$

$

Not available

26

Toro 22-8850

Strap Battery
(Superseded to 22-8850-03)

$101.99

$

Usually ships in 3-6 days

0

27

Toro 66-7600

Plate-Battery

$

$

Not available

28

Toro 22-8870

BATTERY CLAMP

$

$

Not available

29

Toro 3234-17

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

30

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

31

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 16

0

32

Toro 29-7830

MALE WIRE ASM

$17.99

$

Usually ships in 3-6 days

0

33

Toro 29-7820

FEMALE WIRE ASM

$

$

Not available

34

Toro 66-7650

WIRE HARNESS

$

$

Not available

35

Toro 22-9310

STRT MTR-SOLNOID WIRE

$

$

Not available

36

Toro 22-9320

BATT-SOLENOID CABLE

$241.99

$

Usually ships in 3-6 days

0

37

Toro 29-9330

KEY-SHIFT

$27.99

$

In Stock, only 3 left!

0

38

Toro 66-7640

DECAL

$37.99

$

Usually ships in 3-6 days

0

39

Briggs & Stratton 399949

Valve-Fuel Tank
(Superseded to 492649)

$

$

Not available

40

Briggs & Stratton 93053

Clamp-Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

41

Briggs & Stratton 298090

Filter
(Superseded to 298090S)

$

$

Not available

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0
