38580 (1132) - Toro 32" Power Shift Snow Thrower (SN: 008000001 - 008999999) (1988) HOUSING & CHUTE ASSEMBLY Parts Diagram

32" Power Shift Snow Thrower

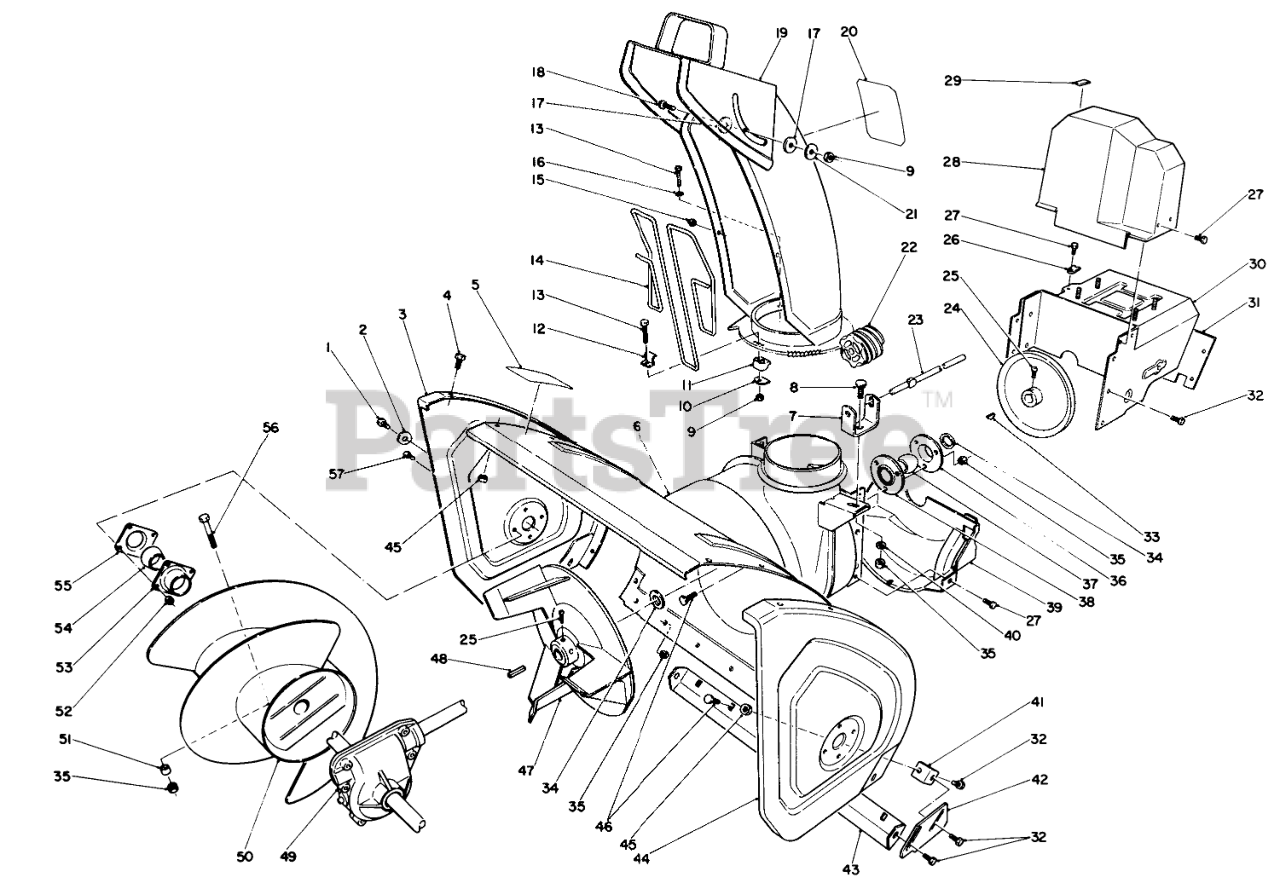

HOUSING & CHUTE ASSEMBLY Parts Diagram

  • Title
1

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

2

Toro 3-0750

WASHER

$9.49

$

In Stock, only 2 left!

0

3

Toro 62-0600

R/H SIDEPLATE R

$

$

Not available

4

Toro 3234-28

SCREW-HHF

$

$

Not available

5

Toro 53-7670

DECAL-WARNING, AUGER
(Superseded to 94-2568)

$10.99

$

In Stock, only 3 left!

0

6

Toro 62-0722

Housing-28"
(Superseded to 62-0722-01)

$

$

Not available

7

Toro 63-2180

BRACKET-WORM, CHUTE

$

$

Not available

8

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 14

0

9

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 63-2670

PLATE-RETAINER, CHUTE

$1.99

$

In Stock, Qty 20+

0

11

Toro 62-1430

RETAINER-CHUTE

$2.99

$

In Stock, Qty 8

0

12

Toro 63-3130

CLIP-GUARD, CHUTE

$2.49

$

In Stock, Qty 20+

0

13

Toro 3274-13

SCREW-HSH

$3.49

$

In Stock, Qty 20+

0

14

Toro 63-3020

GUARD-CHUTE

$

$

Not available

15

Toro 3290-326

NUT-PUSH

$5.49

$

Usually ships in 3-6 days

0

16

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 63-2900

WASHER-PLASTIC

$1.99

$

In Stock, only 3 left!

0

18

$2.49

$

Usually ships in 3-6 days

0

19

Toro 62-0840

Assembly
(Superseded to 62-0840-03)

$

$

Not available

20

Toro 63-3740

Decal-Danger
(Superseded to 94-8079)

$11.99

$

Usually ships in 3-6 days

0

Toro 53-7660

Decal-Danger
(Superseded to 94-2558)

$42.99

$

In Stock, only 1 left!

0

21

Toro 3256-61

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

22

Toro 62-0820

GEAR-WORM

$

$

Not available

23

Toro 62-1720

ROD-CHUTE, LOWER

$28.99

$

In Stock, only 1 left!

0

24

Toro 62-1300

PULLEY-IMPELLER
(Superseded to 136-7119)

$50.99

$

In Stock, only 4 left!

0

25

Toro 3242-4

SCREW-SET, SQH

$2.99

$

In Stock, Qty 11

0

26

Toro 63-2300

RETAINER-CABLE

$5.49

$

Usually ships in 3-6 days

0

27

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

28

Toro 63-2080

COVER-BELT, UPPER

$

$

Not available

29

Toro 63-3290

COVER-CABLE

$4.49

$

In Stock, Qty 5

0

30

Toro 62-0744

Frame-Engine

$

$

Not available

31

Toro 62-1440

Cover-Frame, Engine
(Superseded to 62-1440-01)

$

$

Not available

32

Toro 3234-7

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

33

Toro 3257-23

KEY-WOODRUFF

$7.49

$

In Stock, Qty 20+

0

34

Toro 252-80

WASHER-THRUST

$9.99

$

In Stock, Qty 20+

0

35

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

36

Toro 26-6120

FLANGE-CUP, BEARING

$4.49

$

In Stock, Qty 20+

0

37

Toro 63-3450

BEARING-BALL

$23.99

$

In Stock, Qty 20+

0

38

Toro 26-6110

FLANGE-CUP, BEARING

$6.49

$

In Stock, Qty 20+

0

39

Toro 62-1400

Cover-Belt (Lower)
(Superseded to 68-8410)

$98.99

$

Usually ships in 3-6 days

0

40

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

41

Toro 62-1240

Bracket-Skid

$

$

Not available

42

Toro 62-0980

Plate-Skid LH
(Superseded to 74-1100-01)

$37.99

$

In Stock, only 3 left!

0

Toro 62-0990

Plate-Skid RH
(Superseded to 74-1100-01)

$37.99

$

In Stock, only 3 left!

0

43

Toro 62-0672

Blade-Scraper
(Superseded to 66-7760-01)

$

$

Not available

44

Toro 62-0590

L/H SIDEPLATE R

$

$

Not available

45

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

46

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

47

Toro 63-2590

IMPELLER WA - 4 BLD B

$

$

Not available

48

$12.99

$

Usually ships in 3-6 days

0

49

Toro 62-0442

GEARCASE ASM - AUGER

$

$

Not available

50

Toro 63-2752

Auger-R.H.
(Superseded to 63-2752-03)

$

$

Not available

Toro 63-2762

L/H 32" AUGER WA B

$808.99

$

Usually ships in 3-6 days

0

51

Toro 25-5090

SPACER-HUB, AUGER

$11.99

$

In Stock, Qty 8

0

52

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 20+

0

53

Toro 20-0990

BEARING-FLANGE, FRONT

$11.99

$

In Stock, Qty 11

0

54

Toro 20-0980

BEARING

$22.99

$

In Stock, Qty 17

0

55

Toro 20-1000

BEARING-FLANGE, REAR

$11.99

$

In Stock, Qty 11

0

56

Toro 17-7030

Auger Bolt
(Superseded to 322-12)

$2.49

$

In Stock, Qty 10

0

57

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0
