385777-0350-G1 - Briggs & Stratton Vertical Engine Air Cleaner Group Parts Diagram

Vertical Engine

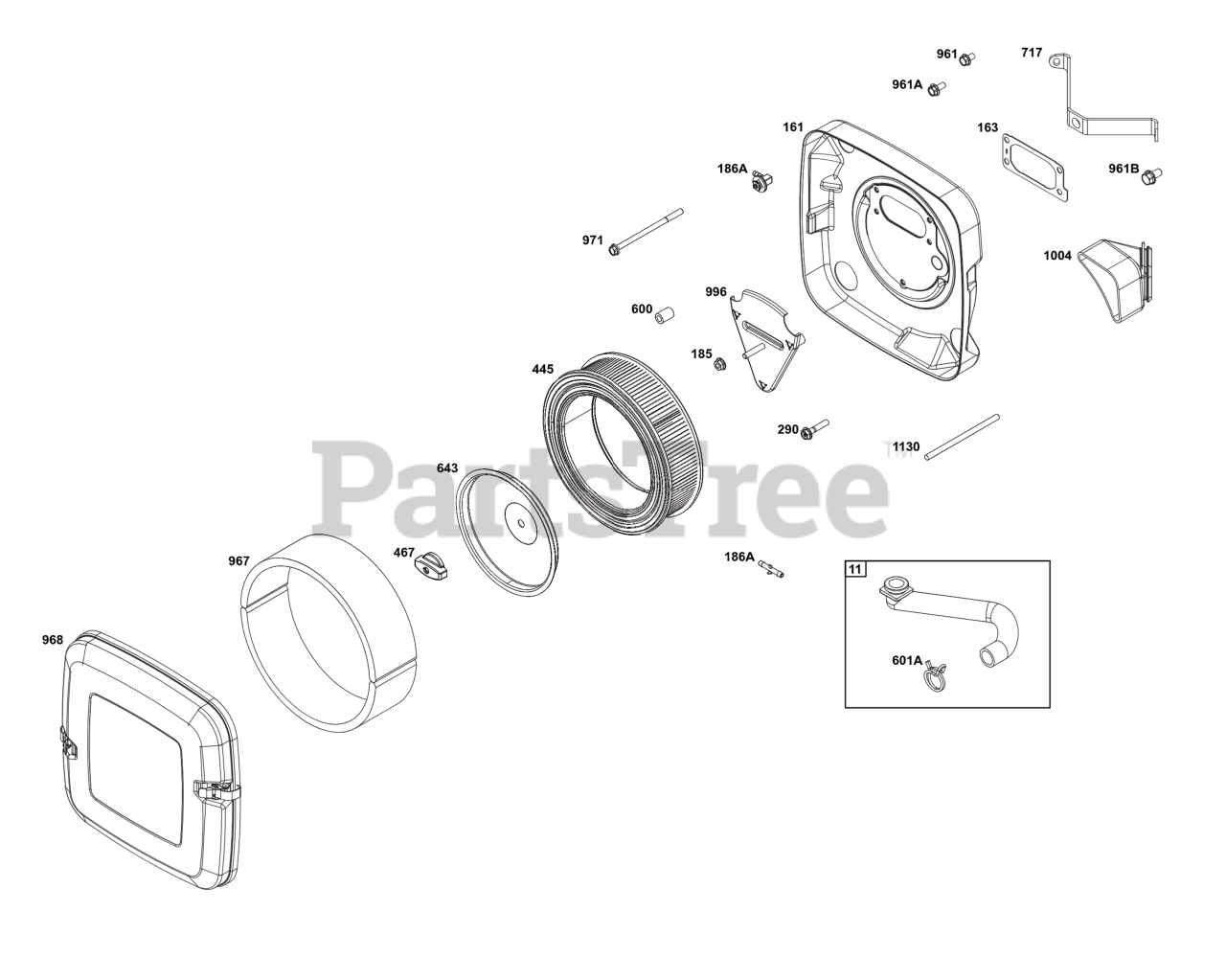

Air Cleaner Group Parts Diagram

  • Title

11

Briggs & Stratton 806379

TUBE, Breather

$15.99

$

In Stock, only 4 left!

0

161

Briggs & Stratton 845217

BASE, Air Cleaner

$72.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 692087

GASKET, Air Cleaner

$5.49

$

In Stock, Qty 20+

0

185

Briggs & Stratton 690939

NUT

Note: (Air Cleaner Base)

$3.49

$

In Stock, Qty 8

0

186A

Briggs & Stratton 845141

CONNECTOR, Hose

$10.99

$

In Stock, only 4 left!

0

290

Briggs & Stratton 691492

SCREW

Note: (Intake Elbow)

$3.99

$

In Stock, only 2 left!

0

445

Briggs & Stratton 692519

FILTER, A/C Cartridge

$20.99

$

In Stock, Qty 20+

0

467

Briggs & Stratton 846431

KNOB, Air Cleaner Cover

$7.99

$

In Stock, Qty 11

0

600

Briggs & Stratton 845213

SPACER, Air Cleaner

$13.99

$

In Stock, only 1 left!

0

601A

Briggs & Stratton 691145

CLAMP, Hose

$3.99

$

In Stock, only 1 left!

0

643

Briggs & Stratton 844932

RETAINER, Air Filter

$22.99

$

In Stock, Qty 7

0

717

Briggs & Stratton 806440

STRAP/STUD, Air Cleaner Mounting

$25.99

$

Usually ships in 2-12 days

0

961

Briggs & Stratton 807084

SCREW

Note: (Air Cleaner Bracket)

$3.49

$

In Stock, Qty 7

0

961A

Briggs & Stratton 841233

SCREW

Note: (Air Cleaner Bracket)

$3.49

$

In Stock, Qty 20+

0

961B

Briggs & Stratton 692056

SCREW

Note: (Air Cleaner Bracket)

$5.99

$

In Stock, Qty 5

0

967

Briggs & Stratton 692520

FILTER, Pre Cleaner

$6.49

$

In Stock, only 1 left!

0

968

Briggs & Stratton 808654

COVER, Air Cleaner

$56.99

$

Usually ships in 2-12 days

0

971

Briggs & Stratton 841853

SCREW

Note: (Air Cleaner Base to Carburetor/Throttle Body)

$6.49

$

Usually ships in 2-12 days

0

996

Briggs & Stratton 845212

SHIELD, Carburetor

$29.99

$

Usually ships in 2-12 days

0

1004

Briggs & Stratton 690865

DUCT, Air

$26.99

$

Usually ships in 2-12 days

0

1130

Briggs & Stratton 690869

STUD

Note: (Intake Manifold)

$8.49

$

Usually ships in 2-12 days

0
