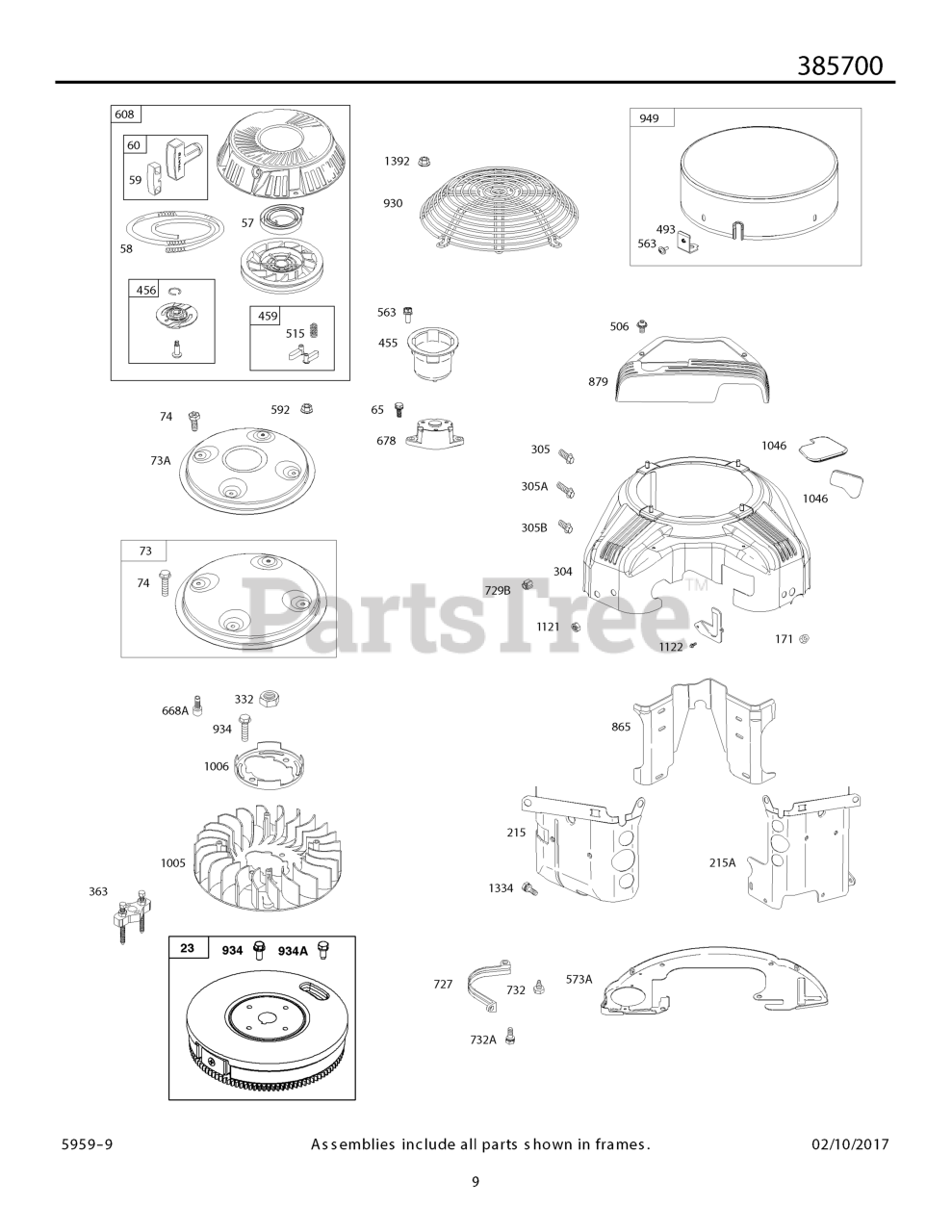

385777-0124-E1 - Briggs & Stratton Vertical Engine Blower Housing, Shrouds, Air Guides Parts Diagram

Vertical Engine

Blower Housing, Shrouds, Air Guides Parts Diagram

  • Title

23

Briggs & Stratton 842442

Flywheel

$531.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 692086

Spring-Rewind Starter

$15.99

$

In Stock, only 1 left!

0

58

Briggs & Stratton 66574

Rope-Starter

$7.49

$

In Stock, Qty 9

0

59

Briggs & Stratton 805957

Insert-Grip

$8.49

$

In Stock, only 4 left!

0

60

Briggs & Stratton 808167

Grip-Starter Rope

$14.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 690341

SCREW

Note: (Rewind Starter) (5/16-18 x 0.875)

$5.99

$

In Stock, only 3 left!

0

73

Briggs & Stratton 841440

Screen-Rotating

$37.99

$

In Stock, only 2 left!

0

73A

Briggs & Stratton 841662

Screen-Rotating

$38.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 841441

Screw
(Superseded to 84007750)

Note: (Rotating Screen)

$3.99

$

Usually ships in 2-12 days

0

171

Briggs & Stratton 690941

NUT

Note: (Air Cleaner) (M8)

$4.99

$

In Stock, Qty 7

0

215

Briggs & Stratton 841183

Guide-Air

Note: (5) Wires

$40.99

$

Usually ships in 2-12 days

0

215A

Briggs & Stratton 841182

Guide-Air

Note: (Cylinder #1)

$35.99

$

Usually ships in 2-12 days

0

304

Briggs & Stratton 841489

Housing-Blower

$130.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 692056

Screw

Note: (Blower Housing) (14mm)

$5.99

$

In Stock, Qty 5

0

305A

Briggs & Stratton 692062

Screw

Note: (Blower Housing) (18mm Long)

$3.49

$

In Stock, Qty 20+

0

305B

Briggs & Stratton 841233

SCREW

Note: (Blower Housing) (12mm Long)

$3.49

$

In Stock, Qty 20+

0

332

Briggs & Stratton 690887

Nut

Note: (Flywheel)

$5.49

$

Usually ships in 2-12 days

0

363

Briggs & Stratton 19203

PULLER, Flywheel

$23.99

$

In Stock, only 1 left!

0

455

Briggs & Stratton 841794

Cup-Flywheel

$33.99

$

Usually ships in 2-12 days

0

456

Briggs & Stratton 845219

Plate-Pawl Friction

$15.99

$

Usually ships in 2-12 days

0

459

Briggs & Stratton 845218

Pawl-Ratchet

$19.99

$

Usually ships in 2-12 days

0

493

Briggs & Stratton 845729

Bracket-Mounting

$41.99

$

Usually ships in 2-12 days

0

506

Briggs & Stratton 807120

Screw

Note: (Carburetor/EFI Cover)

$3.99

$

Usually ships in 2-12 days

0

515

Briggs & Stratton 691528

Spring-Pawl

$6.99

$

In Stock, only 1 left!

0

563

Briggs & Stratton 841735

SCREW

Note: (Debris Screen Guard)

$3.99

$

Usually ships in 2-12 days

0

573A

Briggs & Stratton 841314

Plate-Back

$24.99

$

Usually ships in 2-12 days

0

592

Briggs & Stratton 690939

NUT

Note: (Rewind Starter) (M6)

$3.49

$

In Stock, only 4 left!

0

608

Briggs & Stratton 841729

Starter-Rewind

$142.99

$

Usually ships in 2-12 days

0

668A

Briggs & Stratton 691500

SPACER

Note: (Knurled Insert)

$7.49

$

Usually ships in 2-12 days

0

678

Briggs & Stratton 841730

Spacer-Rewind

$35.99

$

Usually ships in 2-12 days

0

727

Briggs & Stratton 841313

Cover-Starter Drive

Note: (Black)

$16.99

$

Usually ships in 2-12 days

0

729B

Briggs & Stratton 690586

Clip-Wire

Note: (Snap In)(Nylon)

$3.99

$

In Stock, only 3 left!

0

732

Briggs & Stratton 690688

Screw

Note: (Starter Drive Cover)

$3.49

$

Usually ships in 2-12 days

0

732A

Briggs & Stratton 841233

SCREW

Note: (Starter Drive Cover)

$3.49

$

In Stock, Qty 20+

0

865

Briggs & Stratton 843768

Cover-Air Guide

$39.99

$

Usually ships in 2-12 days

0

879

Briggs & Stratton 807460

Cover-Carburetor/EFI

$23.99

$

Usually ships in 2-12 days

0

930

Briggs & Stratton 846284

Guard-Rewind

$51.99

$

Usually ships in 2-12 days

0

934

Briggs & Stratton 691058

Screw

Note: (Fan Retainer)

$5.99

$

In Stock, Qty 11

0

949

Briggs & Stratton 845728

Guard-Debris Screen

$249.99

$

Usually ships in 2-12 days

0

1005

Briggs & Stratton 809179

Fan-Flywheel

Note: (NO LONGER AVAILABLE) Used Before Code Date 04011900

$52.99

$

Usually ships in 2-12 days

0

1005

Briggs & Stratton 841439

Fan-Flywheel

Note: Used After Code Date 04011800

$34.99

$

In Stock, only 2 left!

0

1006

Briggs & Stratton 690452

Retainer-Fan

$10.99

$

Usually ships in 2-12 days

0

1046

Briggs & Stratton 841165

Plug-Blower Housing

$45.99

$

Usually ships in 2-12 days

0

1121

Briggs & Stratton 810056

Nut

Note: (Fuel Pump Bracket) (M8)

$3.49

$

Usually ships in 2-12 days

0

1122

Briggs & Stratton 93410

Screw

Note: (Blower Housing Adapter) (#8-18)

$7.99

$

In Stock, only 1 left!

0

1334

Briggs & Stratton 841233

SCREW

Note: (Air Guide)

$3.49

$

In Stock, Qty 20+

0

1392

Briggs & Stratton 690939

NUT

Note: (Rewind Guard)

$3.49

$

In Stock, only 4 left!

0
