385777-0011-G1 - Briggs & Stratton Vertical Engine Cylinder Head Group Parts Diagram

Vertical Engine

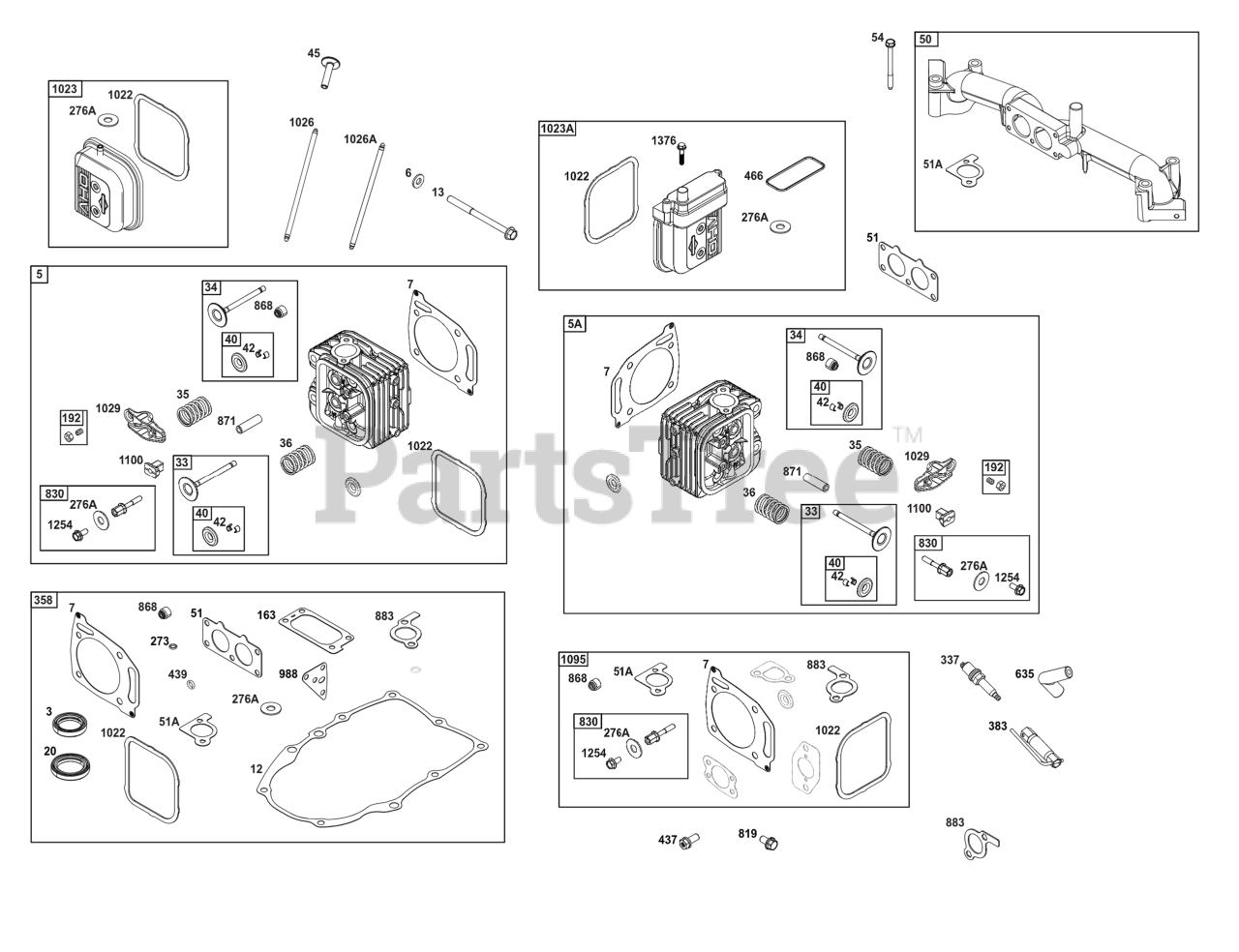

Cylinder Head Group Parts Diagram

  • Title

3

SEAL, Oil

Note: (Part information located in Cylinder Group.)

$

$

Not available

5

Briggs & Stratton 84002012

HEAD, Cylinder

$232.99

$

Usually ships in 2-12 days

0

5A

Briggs & Stratton 84002013

HEAD, Cylinder

$232.99

$

In Stock, Qty 7

0

6

Briggs & Stratton 84005965

WASHER

Note: (Cylinder Head)

$4.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 84006734

GASKET, CYLINDER HEAD

$32.99

$

In Stock, Qty 19

0

12

GASKET, Crankcase

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available

13

Briggs & Stratton 842618

SCREW

Note: (Cylinder Head)

$4.49

$

In Stock, only 4 left!

0

20

SEAL, Oil

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available

33

Briggs & Stratton 843752

VALVE, Exhaust

$47.99

$

In Stock, only 1 left!

0

34

Briggs & Stratton 845712

VALVE, Intake

$26.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 692084

SPRING, Valve

Note: (Intake)

$6.49

$

In Stock, Qty 11

0

36

Briggs & Stratton 692084

SPRING, Valve

Note: (Exhaust)

$6.49

$

In Stock, Qty 11

0

40

Briggs & Stratton 692058

RETAINER, Valve

$5.49

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 807683

KEEPER, Valve

$6.99

$

In Stock, Qty 12

0

45

Briggs & Stratton 843379

TAPPET, Valve

$9.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 806376

MANIFOLD, Intake

$159.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 690950

GASKET, Intake

$2.99

$

In Stock, Qty 18

0

51A

Briggs & Stratton 806418

GASKET, Intake

$3.99

$

In Stock, Qty 20+

0

54

Briggs & Stratton 806444

SCREW

Note: (Intake Manifold)

$4.49

$

In Stock, only 1 left!

0

163

GASKET, Air Cleaner

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

192

Briggs & Stratton 807623

ADJUSTER. Rocker Arm

$11.99

$

In Stock, only 1 left!

0

273

SEAL, O-Ring

Note: (Part information located in Lubrication Group.)

$

$

Not available

276A

Briggs & Stratton 807085

WASHER, Sealing

$3.99

$

In Stock, Qty 17

0

337

Briggs & Stratton 792015

PLUG, Spark

$6.99

$

In Stock, Qty 20+

0

358

GASKET SET, Engine

Note: (Part information located in Cylinder Group.)

$

$

Not available

383

Briggs & Stratton 19576S

WRENCH, Spark Plug

$5.99

$

In Stock, only 1 left!

0

437

Briggs & Stratton 691902

SCREW

Note: (Exhaust Manifold)

$3.49

$

In Stock, only 4 left!

0

439

PLUG, Oil Drain

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available

466

Briggs & Stratton 806466

SEAL, O-Ring

Note: (Breather Assembly)

$10.99

$

In Stock, Qty 11

0

635

BOOT, Spark Plug

Note: (Part information located in Flywheel/Ignition/Starter Group.)

$

$

Not available

819

Briggs & Stratton 692056

SCREW

Note: (Muffler Bracket)

$5.99

$

In Stock, Qty 5

0

830

Briggs & Stratton 809157

STUD, Rocker Arm

$6.99

$

In Stock, Qty 14

0

868

Briggs & Stratton 691963

SEAL, Valve

$10.99

$

In Stock, Qty 20+

0

871

Briggs & Stratton 84002672

BUSHING, Valve Guide

$12.99

$

In Stock, only 2 left!

0

883

Briggs & Stratton 806425

GASKET, Exhaust

$5.49

$

In Stock, Qty 10

0

988

GASKET, Oil Adapter

Note: (Part information located in Lubrication Group.)

$

$

Not available

1022

Briggs & Stratton 806039S

GASKET, Rocker Cover

$7.49

$

In Stock, Qty 20+

0

1023

Briggs & Stratton 691558

COVER, Rocker

$20.99

$

In Stock, only 1 left!

0

1023A

Briggs & Stratton 843750

COVER, Rocker

$81.99

$

In Stock, only 1 left!

0

1026

Briggs & Stratton 691836

ROD, Push

$12.99

$

In Stock, Qty 20+

0

1026A

Briggs & Stratton 691758

ROD, Push

$11.99

$

In Stock, Qty 20+

0

1029

Briggs & Stratton 807323

ARM, Rocker

$12.99

$

In Stock, only 2 left!

0

1095

Briggs & Stratton 84006736

GASKET SET, VALVE

Note: (Service Kits can include parts not for this engine.)

$77.99

$

In Stock, only 2 left!

0

1100

Briggs & Stratton 791959

PIVOT, Rocker Arm

$6.99

$

In Stock, only 2 left!

0

1254

Briggs & Stratton 807084

SCREW

Note: (Rocker Arm Stud)

$3.49

$

In Stock, only 3 left!

0

1376

Briggs & Stratton 806421

SCREW

Note: (Breather Reed Cover)

$

$

Not available
