38575 (CCR 6053) - Toro 21" Quick Clear Snow Thrower (SN: 310000001 - 310999999) (2010) CHUTE ASSEMBLY Parts Diagram

21" Quick Clear Snow Thrower

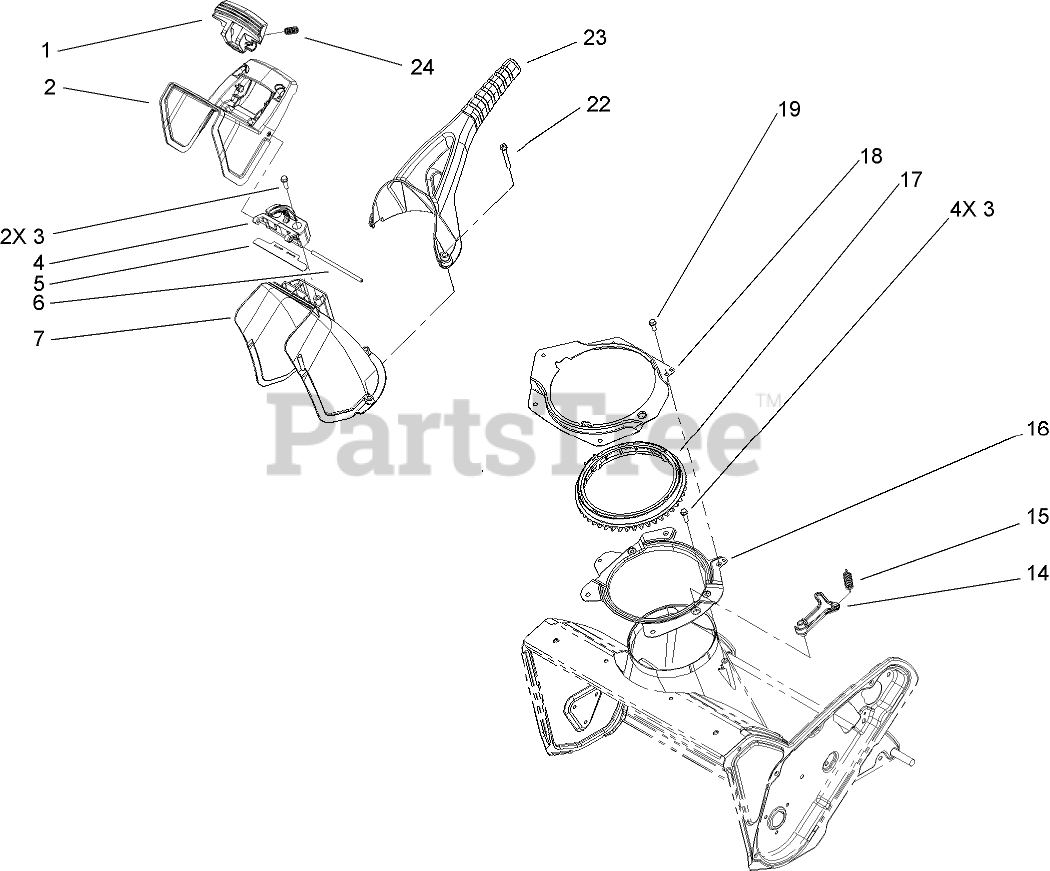

CHUTE ASSEMBLY Parts Diagram

  • Title

1

Toro 108-4941

TRIGGER-DEFLECTOR

$17.99

$

Usually ships in 3-6 days

0

2

Toro 114-1711

DEFLECTOR-CHUTE, CE
(Superseded to 117-9121)

$26.99

$

Usually ships in 3-6 days

0

3

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

4

Toro 108-4942

HINGE-RATCHET, DEFLECTOR

$14.99

$

Usually ships in 3-6 days

0

5

Toro 114-3790

SEAL-DEFLECTOR

$3.49

$

In Stock, Qty 8

0

6

Toro 110-9368

PIN-HINGE, DEFLECTOR
(Superseded to 136-8672)

$3.49

$

In Stock, Qty 13

0

7

Toro 108-4939

CHUTE

$20.99

$

Usually ships in 3-6 days

0

14

Toro 108-4926

PAWL-DETENT

$5.49

$

In Stock, only 1 left!

0

15

Toro 80-4600

SPRING-EXTENSION

$7.99

$

In Stock, Qty 9

0

16

Toro 108-4883-03

RING-SUPPORT, CHUTE

$18.99

$

In Stock, only 1 left!

0

17

Toro 108-4922

RING-CHUTE, DETENT

$18.99

$

In Stock, only 4 left!

0

18

Toro 108-4874-03

RETAINER-RING, CHUTE

$18.99

$

In Stock, only 1 left!

0

19

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

22

Toro 114-3751

SCREW-HWH, PLASTITE

$1.99

$

In Stock, Qty 6

0

23

Toro 110-9366

HANDLE-CHUTE

$22.99

$

In Stock, only 1 left!

0

24

Toro 110-9360

SPRING-COMPRESSION
(Superseded to 136-7136)

$1.49

$

In Stock, Qty 20+

0
