38574 (828) - Toro 28" Power Shift Snow Thrower (SN: 010000001 - 019999999) (1991) HOUSING & CHUTE ASSEMBLY Parts Diagram

28" Power Shift Snow Thrower

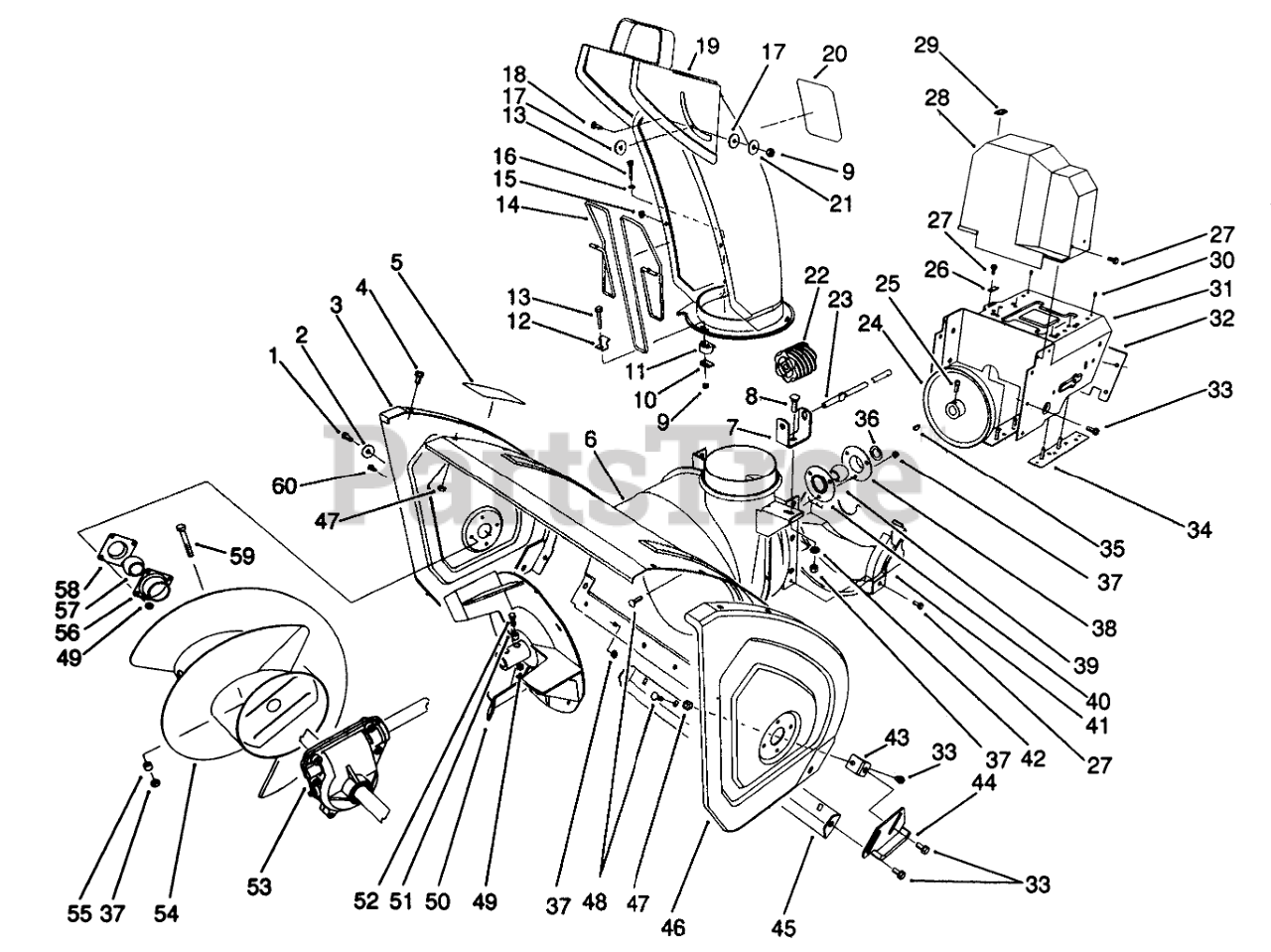

HOUSING & CHUTE ASSEMBLY Parts Diagram

  • Title
1

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

2

Toro 3-0750

WASHER

$9.49

$

In Stock, only 2 left!

0

3

Toro 66-7820

PLATE-SIDE, RH
(Superseded to 66-7821-01)

$224.99

$

Usually ships in 3-6 days

0

4

Toro 3234-28

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

5

Toro 53-7670

DECAL-WARNING, AUGER
(Superseded to 94-2568)

$10.99

$

In Stock, only 3 left!

0

6

Toro 62-0721

Housing-24"
(Superseded to 100-5454)

$

$

Not available

7

Toro 63-2180

BRACKET-WORM, CHUTE

$

$

Not available

8

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

9

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 63-2670

PLATE-RETAINER, CHUTE

$1.99

$

In Stock, Qty 20+

0

11

Toro 62-1430

RETAINER-CHUTE

$2.99

$

In Stock, Qty 11

0

12

Toro 63-3130

CLIP-GUARD, CHUTE

$2.49

$

In Stock, Qty 20+

0

13

Toro 3274-13

SCREW-HSH

$3.49

$

In Stock, Qty 20+

0

14

Toro 63-3020

GUARD-CHUTE

$

$

Not available

15

Toro 3290-326

NUT-PUSH

$5.49

$

Usually ships in 3-6 days

0

16

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 63-2900

WASHER-PLASTIC

$1.99

$

In Stock, only 3 left!

0

18

$2.49

$

Usually ships in 3-6 days

0

19

Toro 62-0840

Assembly
(Superseded to 62-0840-03)

$

$

Not available

20

Toro 63-3760

DECAL-DANGER DISCH.
(Superseded to 94-2558)

$42.99

$

In Stock, only 1 left!

0

21

Toro 3256-61

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

22

Toro 62-0820

GEAR-WORM

$

$

Not available

23

Toro 62-1720

ROD-CHUTE, LOWER

$28.99

$

In Stock, only 1 left!

0

24

Toro 62-1300

PULLEY-IMPELLER
(Superseded to 136-7119)

$50.99

$

In Stock, only 1 left!

0

25

Toro 3242-4

SCREW-SET, SQH

$2.99

$

In Stock, only 2 left!

0

26

Toro 63-2300

RETAINER-CABLE

$5.49

$

Usually ships in 3-6 days

0

27

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

28

Toro 63-2080

COVER-BELT, UPPER

$

$

Not available

29

Toro 63-3290

COVER-CABLE

$4.49

$

In Stock, Qty 5

0

30

Toro 3269-23

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

31

Toro 66-6980

Frame-Engine
(Superseded to 66-6980-01)

$

$

Not available

32

Toro 62-1440

Cover-Frame, Engine
(Superseded to 62-1440-01)

$

$

Not available

33

Toro 3234-7

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

34

Toro 68-4110

LH FRAME PLATE ASM

$47.99

$

Usually ships in 3-6 days

0

Toro 68-4100

RH FRAME PLATE ASM

$

$

Not available

35

Toro 3257-23

KEY-WOODRUFF

$7.49

$

In Stock, Qty 7

0

36

Toro 252-80

WASHER-THRUST

$9.99

$

In Stock, Qty 6

0

37

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

38

Flange-Bearing (Rear)

$

$

Not available

39

Toro 63-3450

BEARING-BALL

$23.99

$

In Stock, Qty 12

0

40

Flange-Bearing (Front)

$

$

Not available

41

Toro 62-1400

Cover-Belt (Lower)
(Superseded to 68-8410)

$98.99

$

Usually ships in 3-6 days

0

42

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

43

Toro 62-1240

Bracket-Skid

$

$

Not available

44

Toro 74-1100

SKID WA
(Superseded to 74-1100-01)

$37.99

$

In Stock, only 3 left!

0

45

Toro 66-7761

Blade-Scraper
(Superseded to 66-7761-01)

$

$

Not available

46

Toro 66-7830

Plate-Side LH
(Superseded to 66-7831-01)

$224.99

$

Usually ships in 3-6 days

0

47

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 12

0

48

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

49

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

50

Toro 66-7920

Impeller
(Superseded to 66-7920-03)

$

$

Not available

51

Toro 66-8010

SPACER

$4.99

$

In Stock, Qty 13

0

52

Toro 321-44

SCREW-HHF

$3.49

$

In Stock, Qty 20+

0

53

Toro 66-8021

Auger Gearbox Assembly
(Superseded to 74-1561)

$1472.99

$

Usually ships in 3-6 days

0

54

Toro 68-7451

Auger-R.H.
(Superseded to 68-7451-03)

$

$

Not available

Toro 68-7461

Auger-L.H.
(Superseded to 68-7461-03)

$

$

Not available

55

Toro 25-5090

SPACER-HUB, AUGER

$11.99

$

In Stock, Qty 8

0

56

Toro 20-0990

BEARING-FLANGE, FRONT

$11.99

$

Usually ships in 3-6 days

0

57

Toro 20-0980

BEARING

$22.99

$

In Stock, Qty 5

0

58

Toro 20-1000

BEARING-FLANGE, REAR

$11.99

$

Usually ships in 3-6 days

0

59

Toro 17-7030

Auger Bolt
(Superseded to 322-12)

$2.49

$

In Stock, Qty 14

0

60

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

Toro 12-8789

Impeller Bearing Assembly (Incl. Ref. #38-40)

$34.99

$

In Stock, Qty 7

0
