38571 (CCR 6053) - Toro 21" Quick Clear Snow Thrower (SN: 310000001 - 310999999) (2010) ENGINE ASSEMBLY NO. 1 TECUMSEH OH195SA-72568G Parts Diagram

21" Quick Clear Snow Thrower

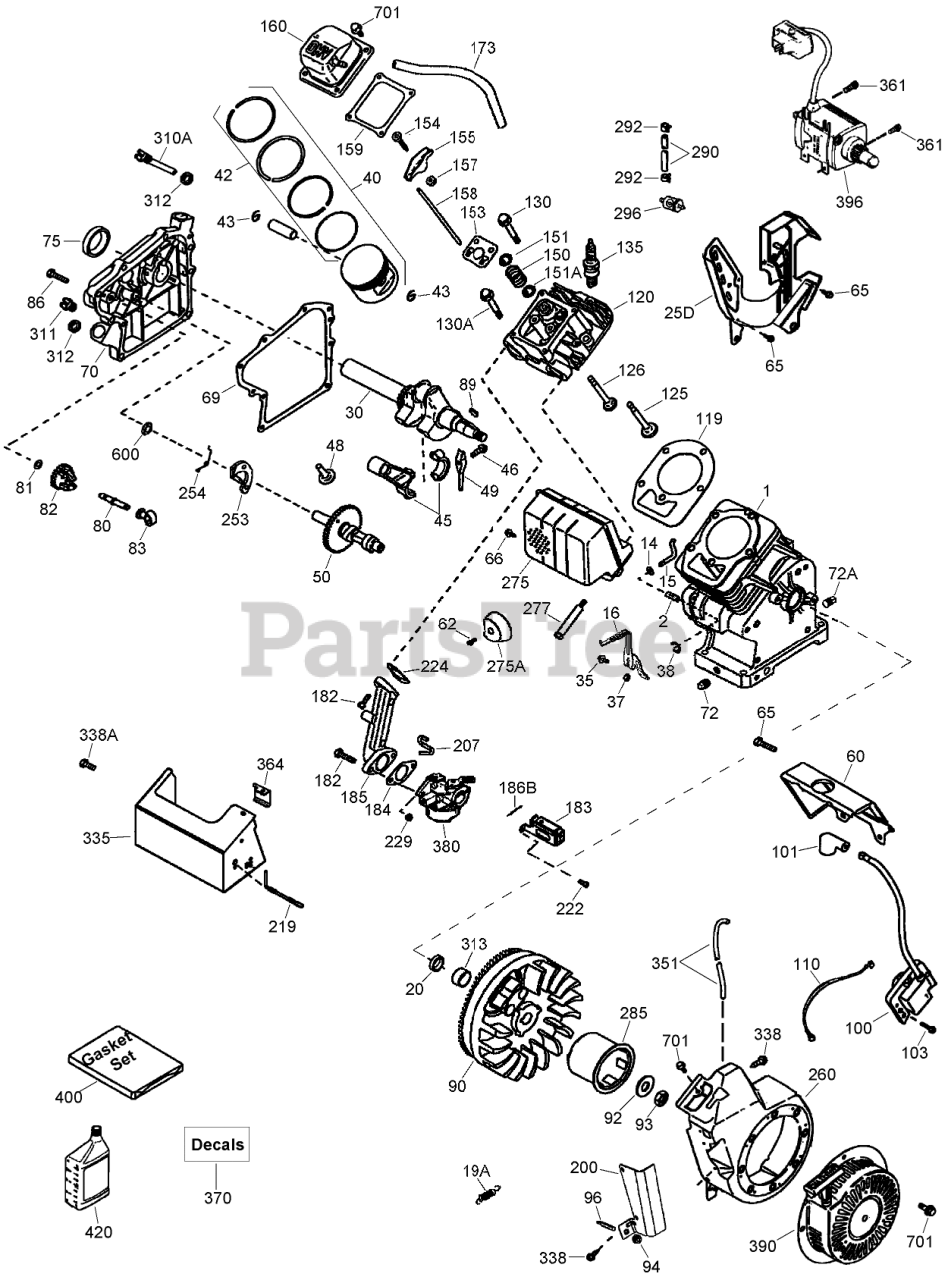

ENGINE ASSEMBLY NO. 1 TECUMSEH OH195SA-72568G Parts Diagram

  • Title
1

Tecumseh 37120B

Cylinder ASM (Includes 2, 20, 72, 72A)

Note: Original Tecumseh Part

$116.99

$

Usually ships in 3-12 days

0

2

Tecumseh 26727

Pin-Dowel

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 5

0

14

Tecumseh 651052

Washer

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 5

0

15

Tecumseh 37108

Rod-Governor (Includes 38)

Note: Original Tecumseh Part

$3.99

$

In Stock, only 1 left!

0

16

Tecumseh 37110

Lever-Governor

Note: Original Tecumseh Part

$5.49

$

Usually ships in 3-12 days

0

19A

Tecumseh 36750

Spring-Governor

Note: Original Tecumseh Part

$5.49

$

Usually ships in 3-12 days

0

20

Tecumseh 32600

Seal-Oil

Note: Original Tecumseh Part

$

$

Not available

25D

Tecumseh 37710

Baffle-Air

Note: Original Tecumseh Part

$

$

Not available

30

Tecumseh 37842

Crankshaft

Note: Original Tecumseh Part

$118.99

$

In Stock, only 1 left!

0

35

Tecumseh 651053

Screw (T-25, 10-32 X 63/64)

Note: Original Tecumseh Part

$1.99

$

Usually ships in 3-12 days

0

37

Tecumseh 651116

Nut-Square

Note: Original Tecumseh Part

$

$

Not available

38

Tecumseh 37109

Ring-Retaining

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 5

0

40

Tecumseh 40004

Piston, Pin and Ring Set (Std) (Includes 41, 42, 43)

Note: Original Tecumseh Part

$74.99

$

In Stock, only 1 left!

0

40

Tecumseh 40005

Piston, Pin and Ring Set (.010 O S) (Includes 41, 42, 43)
(Superseded to 40045)

Note: Original Tecumseh Part

$

$

Not available

42

Tecumseh 40006

Ring Set (STD)

Note: Original Tecumseh Part

$42.99

$

In Stock, only 1 left!

0

42

Tecumseh 40007

Ring Set (.010 O S)
(Superseded to 40045)

Note: Original Tecumseh Part

$

$

Not available

43

Tecumseh 20381

Ring-Retaining, Piston Pin

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 7

0

45

Tecumseh 32875A

Connecting Rod Asm (Includes 46, 49)

Note: Original Tecumseh Part

$47.99

$

In Stock, only 1 left!

0

46

Tecumseh 32610A

Bolt-Rod, Connecting

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 6

0

48

Tecumseh 35616A

Lifter-Valve

Note: Original Tecumseh Part

$3.99

$

In Stock, only 1 left!

0

49

Tecumseh 36611

Dipper-Oil

Note: Original Tecumseh Part

$1.99

$

In Stock, only 1 left!

0

50

Tecumseh 37040

Camshaft

Note: Original Tecumseh Part

$30.99

$

In Stock, only 1 left!

0

60

Tecumseh 36623A

Extension-Housing, Blower

Note: Original Tecumseh Part

$7.49

$

Usually ships in 3-12 days

0

62

Tecumseh 650760

Screw (8-32 x 3/8)

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 7

0

65

Tecumseh 30200

Screw (10-24 x 9/16)

Note: Original Tecumseh Part

$1.49

$

In Stock, Qty 10

0

66

Tecumseh 651027

Screw (1/4-20 x 27/32)

Note: Original Tecumseh Part

$3.49

$

Usually ships in 3-12 days

0

69

Tecumseh 36624

Gasket-Cover, Cylinder

Note: Original Tecumseh Part

$6.99

$

In Stock, only 1 left!

0

70

Tecumseh 36625

Cover-Cylinder (Includes 75 -83, 311)

Note: Original Tecumseh Part

$111.99

$

Usually ships in 3-12 days

0

72

Tecumseh 27642

Plug-Drain, Oil (SQH 1/4-18)

Note: Original Tecumseh Part

$1.99

$

In Stock, only 2 left!

0

72A

Tecumseh 28582

Plug-Pipe (Internal Hex, 1/4-18)

Note: Original Tecumseh Part

$1.99

$

In Stock, only 1 left!

0

75

Tecumseh 27897

Seal-Oil

Note: Original Tecumseh Part

$8.49

$

In Stock, Qty 14

0

80

Tecumseh 30574A

Shaft-Governor

Note: Original Tecumseh Part

$7.49

$

In Stock, only 2 left!

0

81

Tecumseh 30590A

Washer-Flat

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 5

0

82

Tecumseh 30591

Governor Gear ASM (Includes 81)

Note: Original Tecumseh Part

$13.99

$

Usually ships in 3-12 days

0

83

Tecumseh 36057

Spool-Governor

Note: Original Tecumseh Part

$1.99

$

In Stock, only 4 left!

0

86

Tecumseh 650488

Screw (1/4-20 x 1-1/4)

Note: Original Tecumseh Part

$1.99

$

Usually ships in 3-12 days

0

89

Tecumseh 610961

Key-Flywheel (also available in Packaged Part 740007B)

Note: Original Tecumseh Part

$1.49

$

In Stock, Qty 20+

0

90

Tecumseh 611216

Flywheel (18 Watt, Ring Gear)

Note: Original Tecumseh Part

$

$

Not available

92

Tecumseh 650815

Washer-Belleville

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 10

0

93

Tecumseh 650816

Nut-Flywheel

Note: Original Tecumseh Part

$4.49

$

In Stock, Qty 6

0

94

Tecumseh 651016

Nut (10-32)

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 5

0

96

Tecumseh 30845A

Bolt-Adjusting, R.P.M.

Note: Original Tecumseh Part

$7.49

$

Usually ships in 3-12 days

0

100

Tecumseh 34443C

Ignition-State, Solid
(Superseded to 34443D)

Note: Original Tecumseh Part

$44.99

$

In Stock, only 3 left!

0

101

Tecumseh 610118

Cover-Spark Plug

Note: Original Tecumseh Part

$6.49

$

In Stock, only 2 left!

0

103

Tecumseh 651007

Screw (T-15, 10-24 x 15/16)

Note: Original Tecumseh Part

$1.99

$

In Stock, only 4 left!

0

110

Tecumseh 37682

Wire-Ground

Note: Original Tecumseh Part

$3.49

$

In Stock, only 2 left!

0

119

Tecumseh 36719

Gasket-Head, Cylinder

Note: Original Tecumseh Part

$10.99

$

Usually ships in 3-12 days

0

120

Tecumseh 37474

Head-Cylinder (Includes 151A)

Note: Original Tecumseh Part

$

$

Not available

125

Tecumseh 36471

Valve-Exhaust (STD) (Includes 151)

Note: Original Tecumseh Part

$13.99

$

In Stock, only 1 left!

0

125

Tecumseh 36472

Valve-Exhaust (1/32 O S) (Includes 151)

Note: Original Tecumseh Part

$

$

Not available

126

Tecumseh 37711

Valve-Intake (STD) (Includes 151, 151A)

Note: Original Tecumseh Part

$13.99

$

In Stock, only 1 left!

0

130

Tecumseh 650912

Screw (5/16-18 x 1-1/2)

Note: Original Tecumseh Part

$1.99

$

In Stock, only 2 left!

0

130A

Tecumseh 650999

Screw (5/16-18 x 2-41/64)

Note: Original Tecumseh Part

$3.99

$

In Stock, Qty 5

0
