38571 (CCR 6053) - Toro 21" Quick Clear Snow Thrower (SN: 310000001 - 310999999) (2010) CARBURETOR ASSEMBLY NO. 640298 TECUMSEH OH195SA-72568G Parts Diagram

21" Quick Clear Snow Thrower

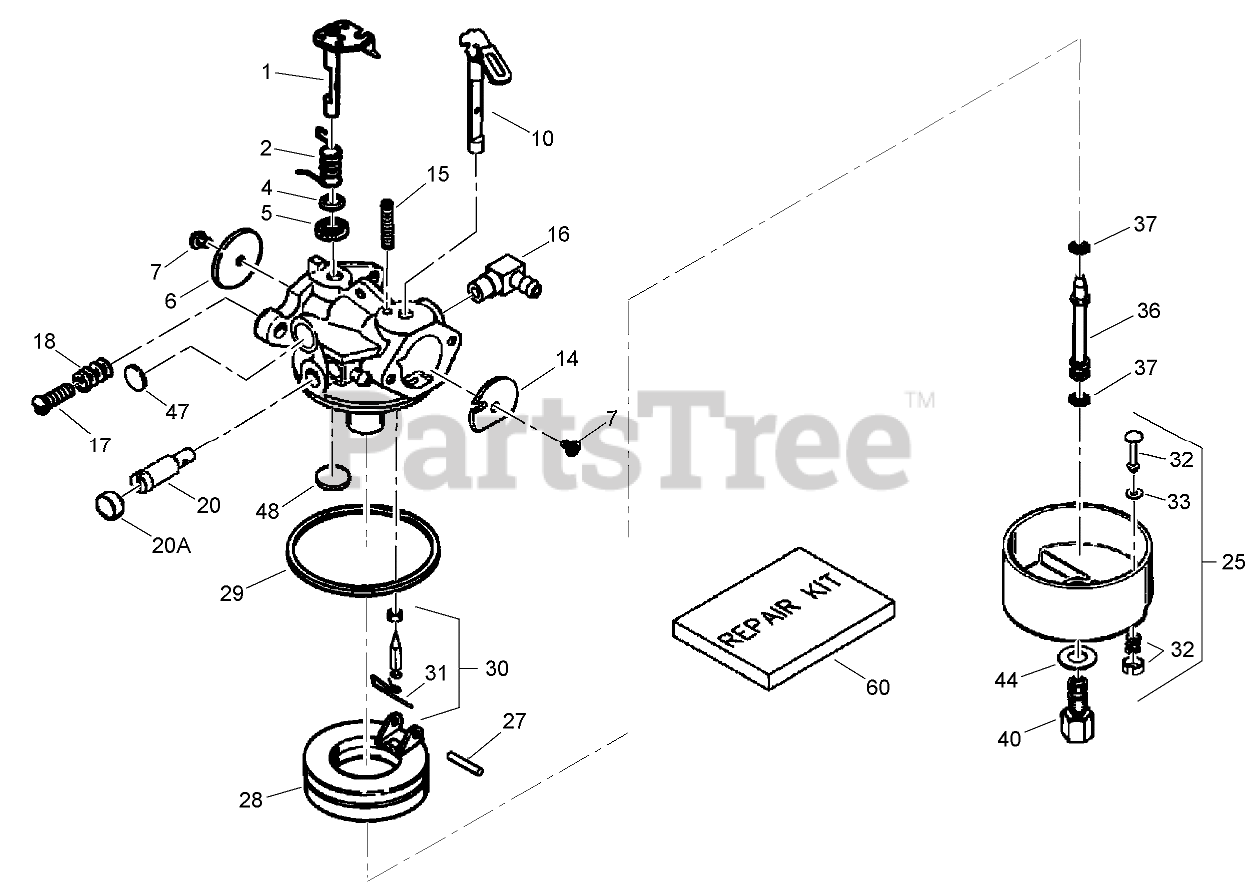

CARBURETOR ASSEMBLY NO. 640298 TECUMSEH OH195SA-72568G Parts Diagram

  • Title

Tecumseh 640298

Carburetor

Note: Original Tecumseh Part

$

$

Not available

1

Tecumseh 631615

Throttle Shaft and Lever ASM

Note: Original Tecumseh Part

$9.49

$

Usually ships in 3-12 days

0

2

Tecumseh 631767

Spring-Return, Throttle

Note: Original Tecumseh Part

$1.99

$

In Stock, only 4 left!

0

4

Tecumseh 631184

Washer-Seal, Dust

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 17

0

4

Tecumseh 631184

Washer-Seal, Dust

Note: Included in Repair Kit 632760

$1.99

$

In Stock, Qty 17

0

5

Tecumseh 631183

Seal-Dust

Note: Included in Repair Kit 632760

$1.99

$

In Stock, Qty 12

0

5

Tecumseh 631183

Seal-Dust

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 12

0

6

Tecumseh 631036

Shutter-Throttle

Note: Original Tecumseh Part

$1.99

$

Usually ships in 3-12 days

0

7

Tecumseh 650506

Screw-Shutter

Note: Original Tecumseh Part

$1.49

$

In Stock, Qty 16

0

7

Tecumseh 650506

Screw-Shutter

Note: Included in Repair Kit 632760

$1.49

$

In Stock, Qty 16

0

10

Tecumseh 632118

Choke Shaft and Lever ASM

Note: Original Tecumseh Part

$7.49

$

Usually ships in 3-12 days

0

14

Tecumseh 631890

Shutter-Choke

Note: Original Tecumseh Part

$1.99

$

In Stock, only 1 left!

0

15

Tecumseh 630735

Spring-Positioning, Choke

Note: Original Tecumseh Part

$1.99

$

In Stock, only 4 left!

0

16

Tecumseh 631807

Fitting-Fuel

Note: Original Tecumseh Part

$8.49

$

In Stock, only 2 left!

0

17

Tecumseh 651025

Screw-Throttle Crack and Idle Speed

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 5

0

18

Tecumseh 630766

Spring-Tension

Note: Original Tecumseh Part

$1.99

$

In Stock, only 2 left!

0

20

Tecumseh 640027

Screw-Restrictor, Idle

Note: Original Tecumseh Part

$3.99

$

In Stock, Qty 5

0

20A

Tecumseh 640053

Cap-Screw, Idle Restrictor

Note: Original Tecumseh Part

$1.49

$

In Stock, Qty 5

0

25

Tecumseh 631951

Float Bowl Asm (Includes 32, 33) (used prior to 1/01/2006)

Note: Original Tecumseh Part

$17.99

$

In Stock, only 1 left!

0

25

Tecumseh 631867

Bowl-Float (no drain) (used after 1/01/2006)

Note: Original Tecumseh Part

$3.49

$

In Stock, Qty 12

0

27

Tecumseh 631024

Shaft-Float

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 11

0

27

Tecumseh 631024

Shaft-Float

Note: Included in Repair Kit 632760

$1.99

$

In Stock, Qty 11

0

28

Tecumseh 632802

Float (Plastic)
(Superseded to 632816)

Note: Original Tecumseh Part

$8.49

$

In Stock, only 2 left!

0

29

Tecumseh 631028

O Ring-Bowl, Float
(Superseded to 631028A)

Note: Original Tecumseh Part

$2.49

$

In Stock, Qty 9

0

29

Tecumseh 631028

O Ring-Bowl, Float
(Superseded to 631028A)

Note: Included in Repair Kit 632760

$2.49

$

In Stock, Qty 9

0

30

Tecumseh 631021

Inlet Needle, Seat and Clip ASM (Includes 31)
(Superseded to 631021B)

Note: Original Tecumseh Part

$6.99

$

In Stock, Qty 20+

0

30

Tecumseh 631021

Inlet Needle, Seat and Clip ASM (Includes 31)
(Superseded to 631021B)

Note: Included in Repair Kit 632760

$6.99

$

In Stock, Qty 20+

0

31

Tecumseh 631022

Clip-Spring

Note: Original Tecumseh Part

$1.99

$

In Stock, only 4 left!

0

32

Tecumseh 27136A

Bowl Drain Asm (used prior to 1/01/2006)

Note: Original Tecumseh Part

$7.49

$

In Stock, only 1 left!

0

33

Tecumseh 27554

Gasket-Plunger, Drain (used prior to 1/01/2006)

Note: Original Tecumseh Part

$1.49

$

In Stock, Qty 16

0

33

Tecumseh 27554

Gasket-Plunger, Drain (used prior to 1/01/2006)

Note: Included in Repair Kit 632760

$1.49

$

In Stock, Qty 16

0

36

Tecumseh 640019

Tube-Nozzle, Main

Note: Original Tecumseh Part

$6.99

$

In Stock, Qty 13

0

37

Tecumseh 632547

O-Ring

Note: Original Tecumseh Part

$4.49

$

In Stock, Qty 20+

0

37

Tecumseh 632547

O-Ring

Note: Included in Repair Kit 632760

$4.49

$

In Stock, Qty 20+

0

40

Tecumseh 640059

Nut-Bowl, High Speed

Note: Original Tecumseh Part

$5.49

$

In Stock, only 1 left!

0

44

Tecumseh 27110A

Washer-Nut, Bowl

Note: Original Tecumseh Part

$2.49

$

Usually ships in 3-12 days

0

47

Tecumseh 630748

Plug-Welch, Idle Mixture Well

Note: Original Tecumseh Part

$1.99

$

In Stock, only 3 left!

0

47

Tecumseh 630748

Plug-Welch, Idle Mixture Well

Note: Included in Repair Kit 632760

$1.99

$

In Stock, only 3 left!

0

48

Tecumseh 631027

Plug-Welch, Atmospheric Vent

Note: Included in Repair Kit 632760

$1.99

$

In Stock, Qty 5

0

48

Tecumseh 631027

Plug-Welch, Atmospheric Vent

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 5

0

60

Tecumseh 632760

Repair Kit (Includes 4, 5, 7, 27, 29, 30, 33, 37, 47, 48)
(Superseded to 632760B)

Note: Original Tecumseh Part

$27.99

$

In Stock, Qty 11

0
