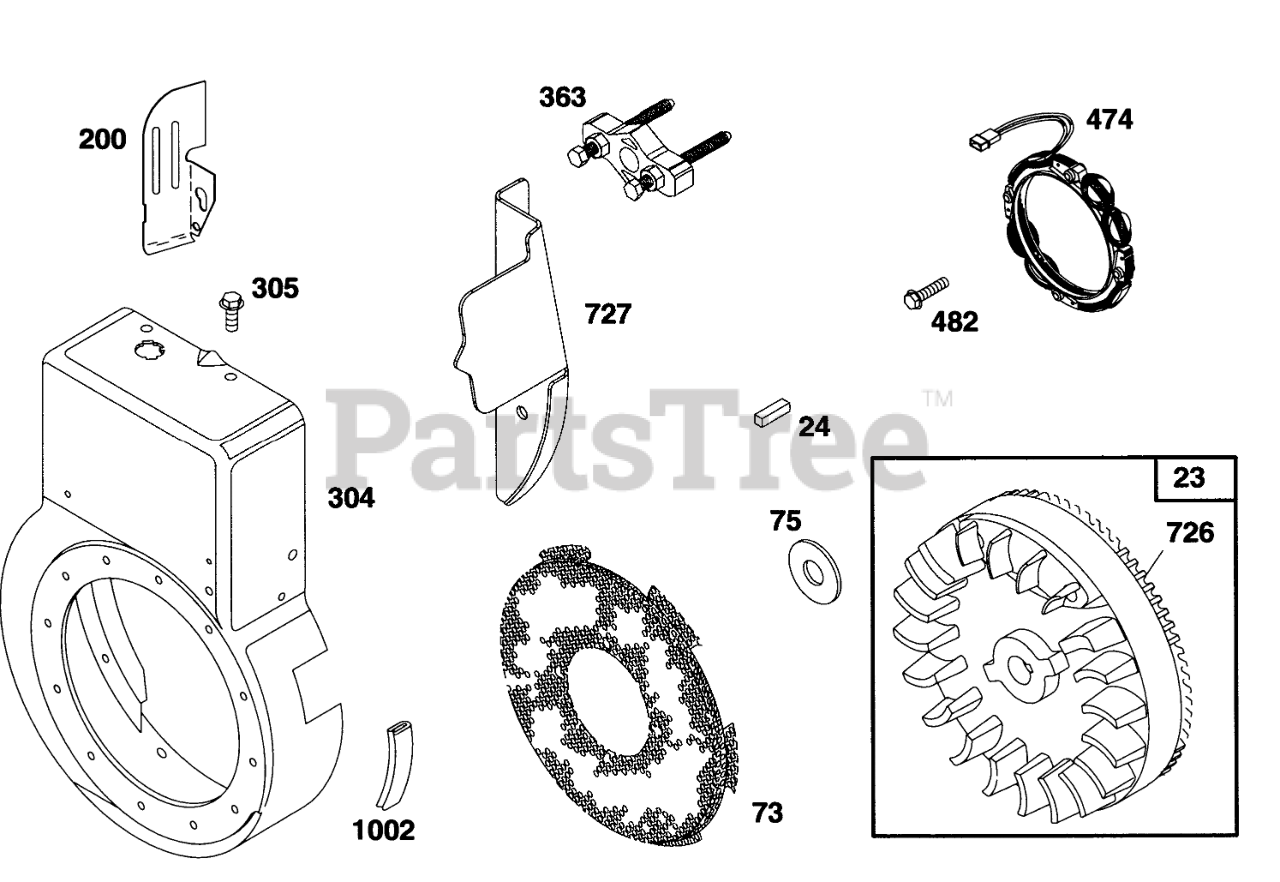

38570 (828) - Toro 28" Power Shift Snow Thrower (SN: 049000001 - 049999999) (1994) ENGINE BRIGGS & STRATTON MODEL 190406-6142-01 Parts Diagram

28" Power Shift Snow Thrower

ENGINE BRIGGS & STRATTON MODEL 190406-6142-01 Parts Diagram

  • Title

23

Briggs & Stratton 391983

Flywheel

$

$

Not available

24

Briggs & Stratton 222698

Key
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

53

Briggs & Stratton 93357

Screw
(Superseded to 690953)

$5.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 221796

Screen
(Superseded to 691754)

$31.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 224061

Washer
(Superseded to 690582)

$4.49

$

In Stock, only 4 left!

0

200

Briggs & Stratton 221760

Guide-Air
(Superseded to 691170)

$15.99

$

Usually ships in 2-12 days

0

304

Briggs & Stratton 399271

Housing-Blower

$61.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 94786

Screw-Sem
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

363

Briggs & Stratton 19203

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

474

Briggs & Stratton 391595

Stator-Alternator

$98.99

$

Usually ships in 2-12 days

0

482

Briggs & Stratton 93621

Screw
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0

726

Briggs & Stratton 392134

Gear-Ring
(Superseded to 696537)

$50.99

$

Usually ships in 2-12 days

0

727

Briggs & Stratton 224886

Guard-Ring Gear Uses:224871 Cover-Starter 94811 Screw-Hex. Hd.
(Superseded to 690490)

$14.99

$

Usually ships in 2-12 days

0

1002

Briggs & Stratton 280738

Shield-Blower Housing

$4.99

$

Usually ships in 2-12 days

0
