38570 (828) - Toro 28" Power Shift Snow Thrower (SN: 010000001 - 019999999) (1991) ENGINE ASSEMBLY Parts Diagram

28" Power Shift Snow Thrower

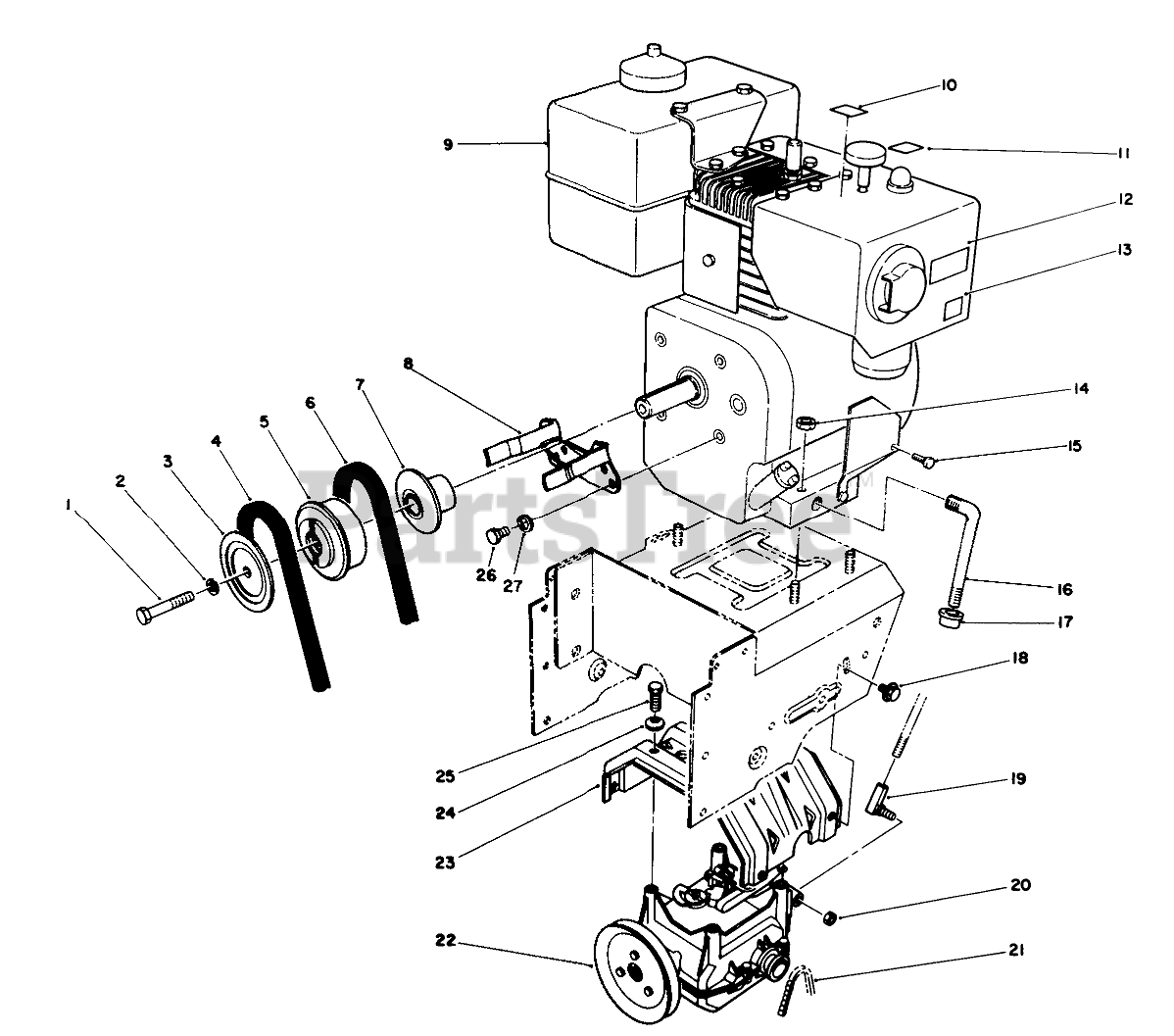

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 3212-8

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

2

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

3

Toro 62-0940

SHEAVE-HALF, IMPELLER

$18.99

$

In Stock, only 1 left!

0

4

Toro 63-2964

V-BELT, IMPELLER

$26.99

$

In Stock, only 1 left!

0

5

Toro 62-0930

PULLEY-ENGINE, CENTER

$70.99

$

Usually ships in 3-6 days

0

6

Toro 63-2953

V-BELT, TRACTION

$27.99

$

In Stock, only 3 left!

0

7

Toro 62-0920

SHEAVE-HALF, TRACTION

$

$

Not available

8

Toro 68-7510

Guide-Belt
(Superseded to 68-7510-03)

$

$

Not available

9

Engine-Briggs & Stratton (Model No. 190406 Type No. 3104-01)

$

$

Not available

10

Toro 63-2340

DECAL - THROTTLE, INT'L

$

$

Not available

11

Toro 63-2320

DECAL - PRIMER, INT'L

$

$

Not available

12

Toro 66-6840

DECAL-WARNING, HOT SURFACE

$80.99

$

Usually ships in 3-6 days

0

13

Toro 63-2360

DECAL - CHOKE

$

$

Not available

14

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

15

Toro 2210-250

SCREW-HH

$

$

Not available

16

Toro 67-9301

8 HP DRAIN TUBE

$

$

Not available

17

Toro 288-10

CAP-PIPE

$10.99

$

Usually ships in 3-6 days

0

18

Toro 3234-7

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

19

Toro 63-2640

JOINT-BALL

$

$

Not available

20

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

21

Toro 63-2930

CHAIN

$

$

Not available

22

Toro 66-8030

TRACTION GEARCASE ASM

$1930.99

$

Usually ships in 3-6 days

0

23

Toro 63-2990

Frame-Transmission
(Superseded to 63-2990-03)

$

$

Not available

24

Toro 3290-461

WASHER-SPRING

$5.49

$

In Stock, only 2 left!

0

25

Toro 11-0590

SCREW-HWHTF
(Superseded to 32144-102)

$3.49

$

Usually ships in 3-6 days

0

26

Toro 3210-1

SCREW-HH

$6.99

$

In Stock, only 2 left!

0

27

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0
