38570 (828) - Toro 28" Power Shift Snow Thrower (SN: 010000001 - 019999999) (1991) 28" AUGER GEARCASE ASSEMBLY NO. 66-8021 Parts Diagram

28" Power Shift Snow Thrower

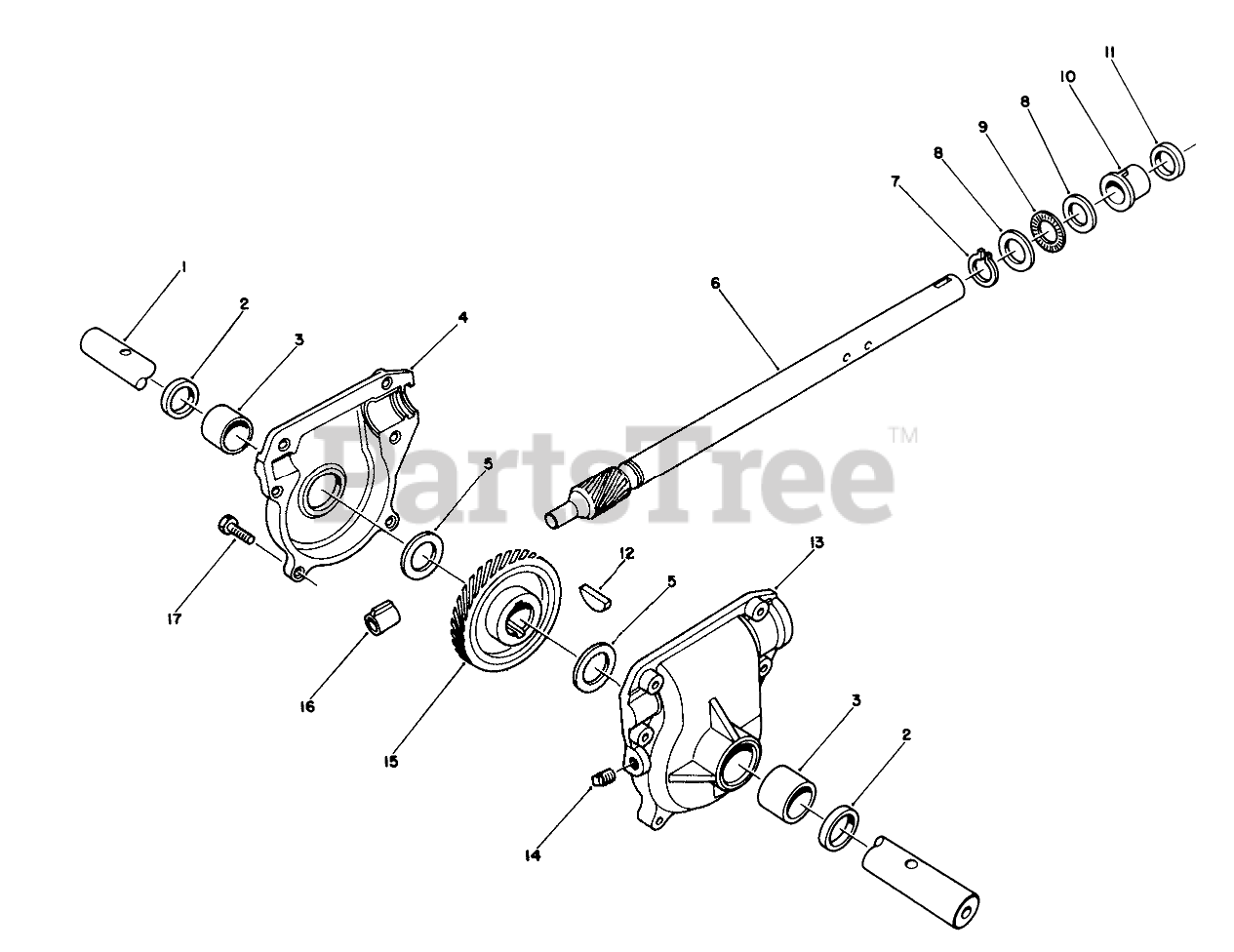

28" AUGER GEARCASE ASSEMBLY NO. 66-8021 Parts Diagram

  • Title

1

Toro 62-1531

SHAFT-AUGER

$

$

Not available

2

Toro 7-0045

SEAL-OIL

$17.99

$

In Stock, only 4 left!

0

3

Toro 256-237

BUSHING

$15.99

$

In Stock, Qty 5

0

4

Toro 62-0570

Gearcase Assembly-R.H. (Incl. Ref. #2-3)
(Superseded to 110-3439)

$393.99

$

Usually ships in 3-6 days

0

5

Toro 252-71

WASHER-THRUST

$19.99

$

In Stock, only 2 left!

0

6

Toro 66-7810

Shaft-Impeller
(Superseded to 66-7811)

$266.99

$

Usually ships in 3-6 days

0

7

Toro 32151-33

RING-RETAINING, Ext

$3.49

$

In Stock, only 1 left!

0

8

Toro 252-78

WASHER-THRUST

$26.99

$

In Stock, only 2 left!

0

9

Toro 252-76

BEARING-THRUST

$21.99

$

Usually ships in 3-6 days

0

10

Toro 37-6560

BUSHING-INPUT

$43.99

$

In Stock, only 1 left!

0

11

Toro 253-149

SEAL-OIL

$12.99

$

Usually ships in 3-6 days

0

12

Toro 3257-10

KEY-WOODRUFF

$6.49

$

Usually ships in 3-6 days

0

13

Toro 62-0580

Gearcase Assembly-L.H (Incl. Ref. #2-3)
(Superseded to 110-3439)

$393.99

$

Usually ships in 3-6 days

0

14

Toro 281-1

PLUG-PIPE, SQH

$5.49

$

Usually ships in 3-6 days

0

15

Toro 62-0120

GEAR-HELICAL
(Superseded to 138-0696)

$68.99

$

Usually ships in 3-6 days

0

16

Toro 62-1150

BUSHING-WORM

$7.99

$

In Stock, only 2 left!

0

17

Toro 32144-86

SCREW-HWHTF

$1.49

$

In Stock, Qty 20+

0

Toro 505-119

Sealant-1009 Tube
(Superseded to 505-129)

$

$

Not available
