38568 (CCR 6053 ES) - Toro 21" Quick Clear Snow Thrower (SN: 405012000 - 406999999) Engine Assembly No. 2 Parts Diagram

21" Quick Clear Snow Thrower

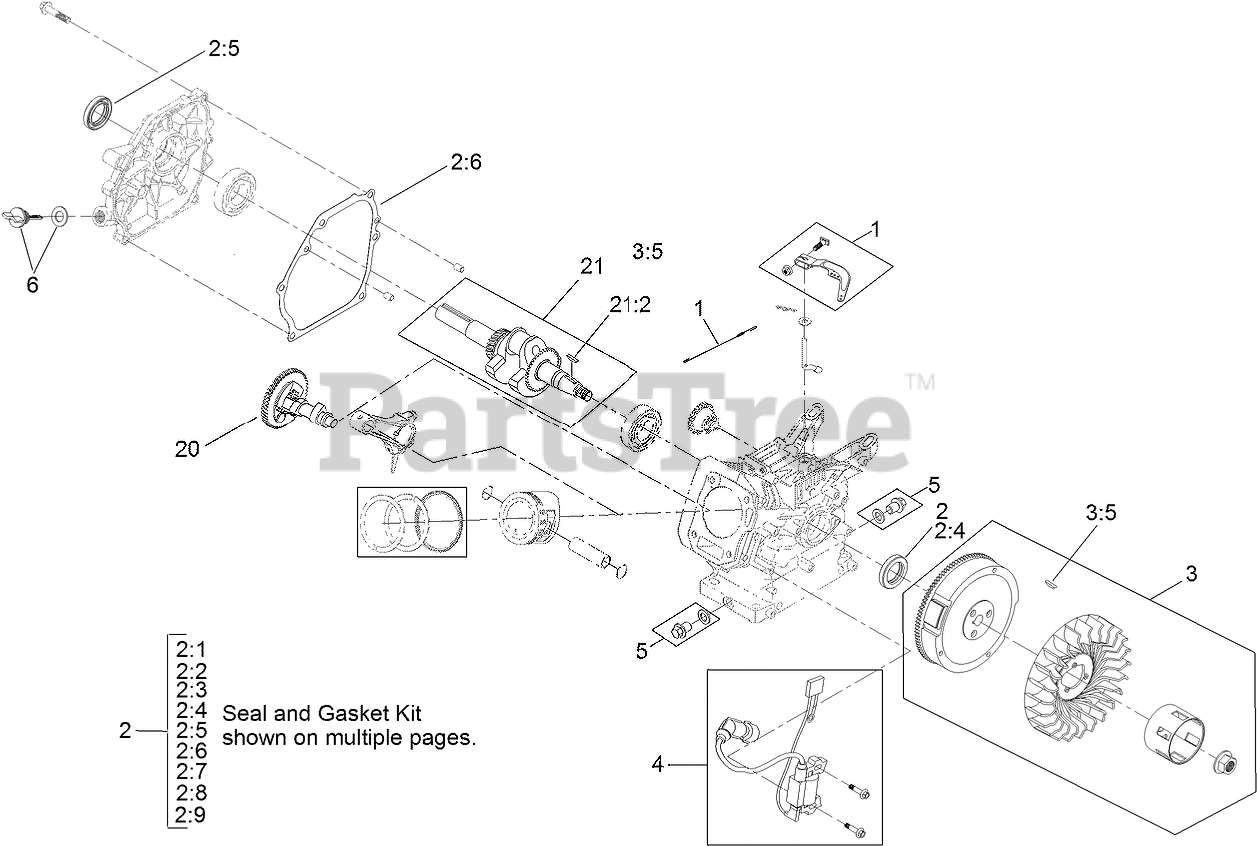

Engine Assembly No. 2 Parts Diagram

  • Title

1

Toro 136-7765

GOVERNOR KIT

$27.99

$

In Stock, only 2 left!

0

2

Toro 127-9001

GASKET AND SEAL KIT

$82.99

$

Usually ships in 3-6 days

0

2:1

Toro 121-0109

GASKET-COVER, VALVE

$5.49

$

Usually ships in 3-6 days

0

2:2

Toro 121-0167

GASKET-EXHAUST

$3.99

$

Usually ships in 3-6 days

0

2:3

Toro 127-9000

GASKET-HEAD, CYLINDER

$13.99

$

Usually ships in 3-6 days

0

2:4

Toro 121-0208

See Supercession: 133-9864
(Superseded to 133-9864)

$12.99

$

Usually ships in 3-6 days

0

2:5

Toro 121-0209

SEAL-OIL

$14.99

$

In Stock, only 1 left!

0

2:6

Toro 121-0105

GASKET-COVER, CRANKCASE

$14.99

$

Usually ships in 3-6 days

0

2:7

Toro 121-0076

GASKET-CARBURETOR

$1.99

$

In Stock, only 1 left!

0

2:8

Toro 121-0078

GASKET-CARBURETOR

$1.99

$

In Stock, only 3 left!

0

2:9

Toro 121-0080

GASKET-CARBURETOR

$5.99

$

In Stock, only 2 left!

0

3

Toro 127-9006

FLYWHEEL KIT

$150.99

$

Usually ships in 3-6 days

0

3:5

Toro 120-4320

KEY-WOODRUFF

$2.99

$

Usually ships in 3-6 days

0

4

Toro 136-7766

IGNITION KIT

$82.99

$

In Stock, only 2 left!

0

5

Toro 119-1923

DRAIN PLUG KIT

$7.99

$

Usually ships in 3-6 days

0

6

Toro 127-9374

DIPSTICK AND O-RING KIT

$11.99

$

In Stock, only 2 left!

0

20

Toro 133-9836

CAMSHAFT
(Superseded to 139-0733)

$49.99

$

Usually ships in 3-6 days

0

21

Loose Parts Package

Note: Not serviced separately

$

$

Not available

21:2

Toro 120-4320

KEY-WOODRUFF

$2.99

$

Usually ships in 3-6 days

0
