38566 (1132) - Toro 32" Power Shift Snow Thrower (SN: 059000001 - 059999999) (1995) ENGINE BRIGGS & STRATTON MODELS 252416-0756-01 & 252416-0757-01 Parts Diagram

32" Power Shift Snow Thrower

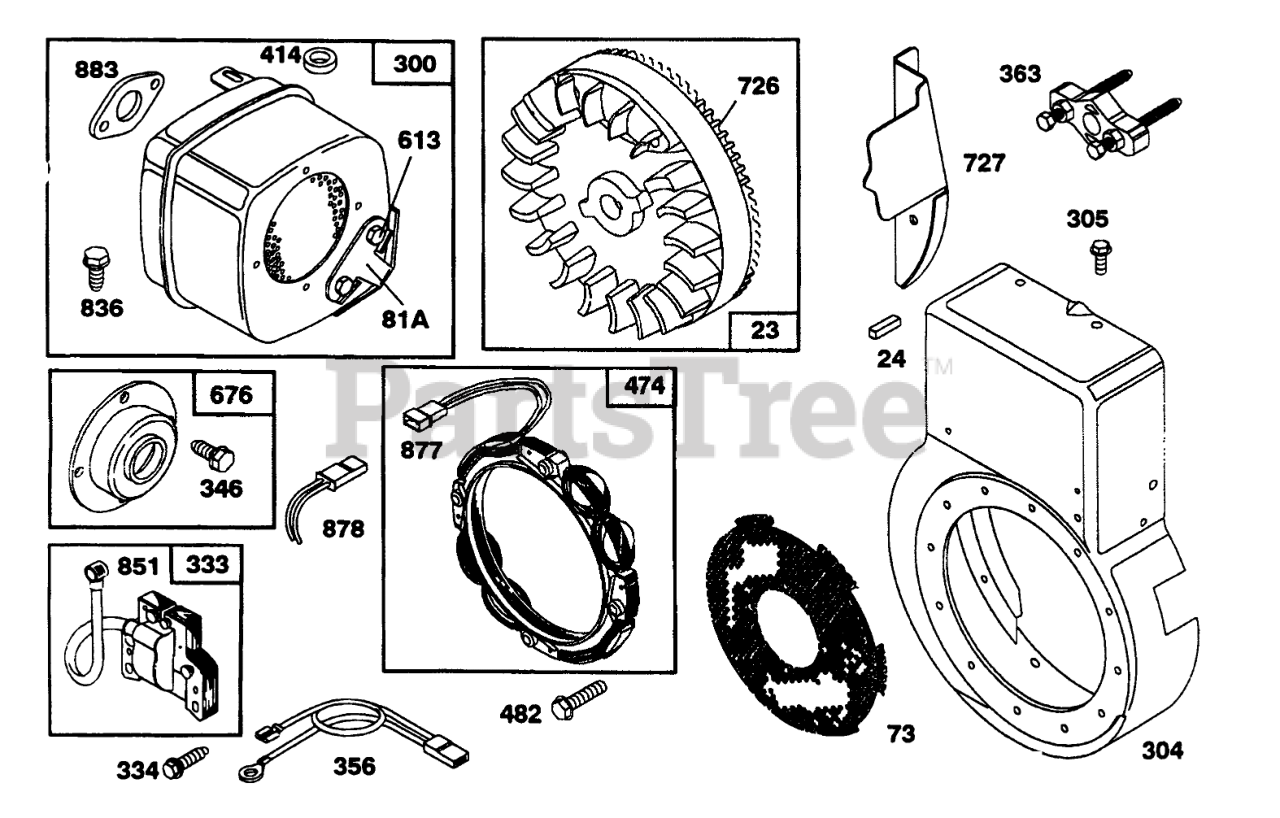

ENGINE BRIGGS & STRATTON MODELS 252416-0756-01 & 252416-0757-01 Parts Diagram

  • Title

23

Briggs & Stratton 391988

Flywheel and Ring Gear
(Superseded to 692048)

$

$

Not available

24

Briggs & Stratton 222698

Key
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

81A

Briggs & Stratton 223016

Screw
(Superseded to 691178)

$5.49

$

In Stock, Qty 9

0

300

Briggs & Stratton 491626

Muffler-Exhaust

$95.99

$

Usually ships in 2-12 days

0

304

Briggs & Stratton 490446

Housing-Blower

$49.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 94608

Screw-Sem
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

333

Briggs & Stratton 398811

Armature Group

$63.99

$

In Stock, Qty 19

0

334

Briggs & Stratton 94731

Screw-Sem
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

346

Briggs & Stratton 93705

Screw
(Superseded to 690661)

$3.49

$

In Stock, Qty 8

0

356

Briggs & Stratton 398874

Wire-Ground
(Superseded to 491391)

$6.49

$

Usually ships in 2-12 days

0

363

Briggs & Stratton 19203

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

414

Briggs & Stratton 231109

Spacer
(Superseded to 690510)

$6.49

$

Usually ships in 2-12 days

0

474

Briggs & Stratton 393474

Alternator
(Superseded to 592831)

$101.99

$

In Stock, Qty 8

0

Briggs & Stratton 391595

Stator-Alternator

Note: Not illustrated

$98.99

$

Usually ships in 2-12 days

0

482

Briggs & Stratton 93621

Screw
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0

613

Briggs & Stratton 93927

Screw
(Superseded to 691416)

$11.99

$

In Stock, Qty 14

0

676

Briggs & Stratton 396903

Deflector-Exhaust

$14.99

$

Usually ships in 2-12 days

0

726

Briggs & Stratton 392134

Gear-Flywheel Ring (Includes Mtg. Parts)
(Superseded to 696537)

$50.99

$

Usually ships in 2-12 days

0

727

Briggs & Stratton 223597

Guard-Ring Gear
(Superseded to 690490)

$14.99

$

Usually ships in 2-12 days

0

836

Briggs & Stratton 92747

Screw
(Superseded to 691117)

$4.49

$

In Stock, only 1 left!

0

851

Briggs & Stratton 221798

Terminal-Cable
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

877

Briggs & Stratton 393456

Wire/Connector-Alternator

$20.99

$

In Stock, only 1 left!

0

878

Briggs & Stratton 393362

Harness-Alternator
(Superseded to 398661)

$34.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 270917

Gasket Exhaust
(Superseded to 692236)

Note: Included in Gasket Set-Part No. 391834

$5.49

$

In Stock, Qty 20+

0
