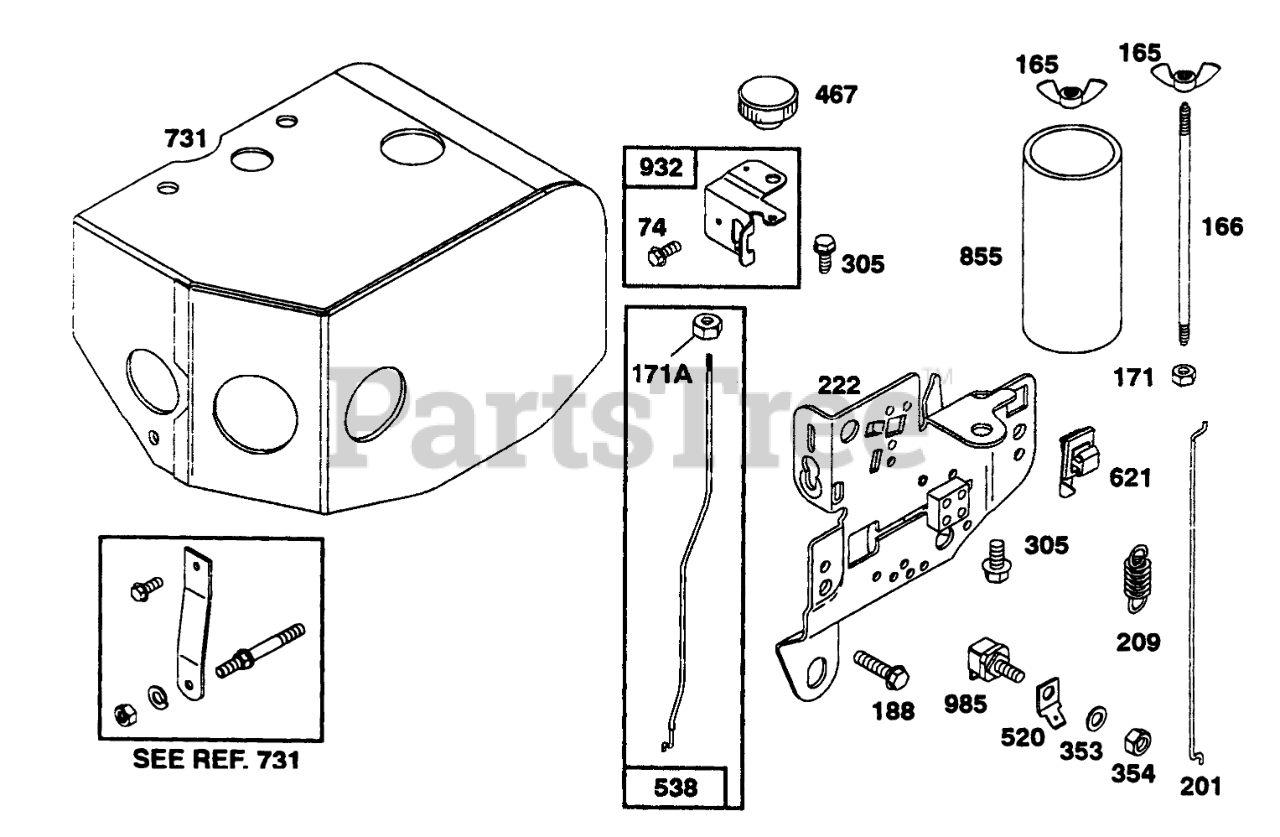

38566 (1132) - Toro 32" Power Shift Snow Thrower (SN: 059000001 - 059999999) (1995) ENGINE BRIGGS & STRATTON MODELS 252416-0756-01 & 252416-0757-01 Parts Diagram

32" Power Shift Snow Thrower

ENGINE BRIGGS & STRATTON MODELS 252416-0756-01 & 252416-0757-01 Parts Diagram

  • Title

74

Briggs & Stratton 93042

Screw
(Superseded to 691078)

$4.99

$

Usually ships in 2-12 days

0

165

Briggs & Stratton 94289

Nut-Wing
(Superseded to 691331)

$5.99

$

In Stock, only 2 left!

0

166

Briggs & Stratton 231007

Stud Air Cleaner
(Superseded to 691241)

$

$

Not available

171

Briggs & Stratton 92129

Nut
(Superseded to 690284)

$2.99

$

Usually ships in 2-12 days

0

171A

Briggs & Stratton 90356

Nut
(Superseded to 690276)

$3.99

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 93535

Crew
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

201

Briggs & Stratton 261236

Link-Governor

$

$

Not available

209

Briggs & Stratton 260695

Spring
(Superseded to 796260)

$4.99

$

In Stock, Qty 13

0

222

Briggs & Stratton 399152

Plate-Gov. Control

$45.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 94608

Screw-Sem
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

353

Briggs & Stratton 92791

Washer-Lock
(Superseded to 691077)

$3.49

$

In Stock, only 2 left!

0

354

Briggs & Stratton 90576

Nut
(Superseded to 691612)

$3.49

$

In Stock, only 1 left!

0

467

Briggs & Stratton 391908

Knob

$6.49

$

Usually ships in 2-12 days

0

520

Briggs & Stratton 93722

Terminal
(Superseded to 691084)

$6.49

$

In Stock, only 1 left!

0

538

Briggs & Stratton 396085

Rod-Control

$46.99

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 396847

Switch
(Superseded to 692310)

$5.99

$

In Stock, Qty 20+

0

731

Briggs & Stratton 490173

Hood

$46.99

$

Usually ships in 2-12 days

0

855

Briggs & Stratton 231145

Stack-Carburetor

$7.49

$

Usually ships in 2-12 days

0

932

Briggs & Stratton 396084

Guide-Rod

$32.99

$

Usually ships in 2-12 days

0

985

Briggs & Stratton 398525

Insulator
(Superseded to 691972)

$8.49

$

In Stock, only 2 left!

0
