38566 (1132) - Toro 32" Power Shift Snow Thrower (SN: 059000001 - 059999999) (1995) ENGINE BRIGGS & STRATTON MODELS 252416-0756-01 & 252416-0757-01 Parts Diagram

32" Power Shift Snow Thrower

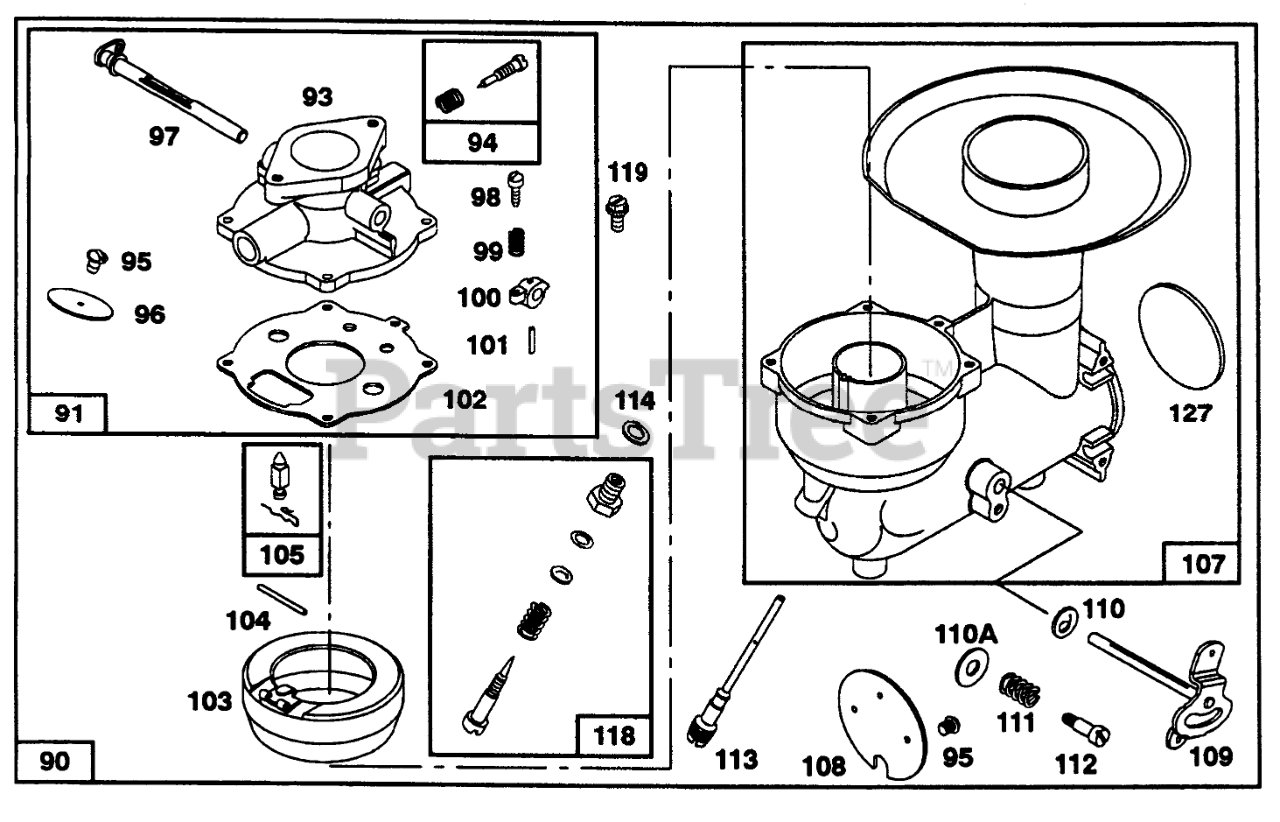

ENGINE BRIGGS & STRATTON MODELS 252416-0756-01 & 252416-0757-01 Parts Diagram

  • Title

90

Briggs & Stratton 399252

Carburetor Assembly

$

$

Not available

91

Briggs & Stratton 391833

Upper Carburetor Body

$128.99

$

Usually ships in 2-12 days

0

93

Briggs & Stratton 23108

Bushing-Throttle Shaft
(Superseded to 691769)

$9.49

$

In Stock, only 2 left!

0

94

Briggs & Stratton 292681

Valve Assembly

Note: Included in Carburetor Overhaul Kit-Part No. 394989.

$11.99

$

In Stock, only 1 left!

0

95

Briggs & Stratton 93499

Screw
(Superseded to 691437)

$3.99

$

In Stock, only 3 left!

0

96

Briggs & Stratton 221939

Valve-Throttle
(Superseded to 691727)

$6.99

$

Usually ships in 2-12 days

0

97

Briggs & Stratton 391596

Shaft/Lever-Throttle

$41.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 91920

Screw
(Superseded to 691615)

$3.99

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 26157

Spring
(Superseded to 693942)

$8.99

$

Usually ships in 2-12 days

0

100

Briggs & Stratton 212904

Stop-Throttle
(Superseded to 691708)

$8.99

$

Usually ships in 2-12 days

0

101

Briggs & Stratton 93043

Pin
(Superseded to 691616)

$4.49

$

Usually ships in 2-12 days

0

102

Briggs & Stratton 270268

Gasket-Carburetor Body
(Superseded to 692215)

Note: Included in Carburetor Overhaul Kit-Part No. 394989.

$5.49

$

In Stock, only 1 left!

0

102

Briggs & Stratton 270268

Gasket-Carburetor Body
(Superseded to 692215)

Note: Included in Gasket Set-part No. 391834.

$5.49

$

In Stock, only 1 left!

0

103

Briggs & Stratton 298514

Float-Carburetor
(Superseded to 692265)

$11.99

$

In Stock, Qty 8

0

104

Briggs & Stratton 230896

Pin-Float
(Superseded to 691775)

Note: Included in Carburetor Overhaul Kit-Part No. 394989.

$3.99

$

In Stock, only 1 left!

0

105

Briggs & Stratton 394681

Valve-Fuel Inlet Note: 394682 Valve-Fuel Inlet (Includes Seat)

$7.99

$

In Stock, only 1 left!

0

107

Briggs & Stratton 391829

Body Assy-Lower Carb.

$109.99

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 223781

Valve-Choke
(Superseded to 5022378X1)

$25.99

$

Usually ships in 2-12 days

0

109

Briggs & Stratton 391884

Shaft/Lever-Choke

$9.99

$

Usually ships in 2-12 days

0

110

Toro 62889

Washer-Choke Shaft

$

$

Currently unavailable

110

Briggs & Stratton 222712

Washer

$5.49

$

Usually ships in 2-12 days

0

111

Briggs & Stratton 26155

Spring-Lever
(Superseded to 691590)

$4.99

$

In Stock, Qty 7

0

112

Briggs & Stratton 23123

Screw-Choke Lever
(Superseded to 691587)

$6.49

$

In Stock, only 1 left!

0

113

Briggs & Stratton 394730

Nozle-Carburetor
(Superseded to 691966)

Note: Included in Carburetor Overhaul Kit-Part No. 394989.

$21.99

$

In Stock, only 3 left!

0

114

Briggs & Stratton 68667

Gasket-Nozzle
(Superseded to 691610)

Note: Included in Carburetor Overhaul Kit-Part No. 394989.

$6.49

$

In Stock, only 1 left!

0

118

Briggs & Stratton 99525

Value-Needle
(Superseded to 99525S)

Note: Included in Carburetor Overhaul Kit-Part No. 394989.

$12.99

$

In Stock, only 1 left!

0

119

Briggs & Stratton 94152

Screw
(Superseded to 691090)

$3.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 221747

Plug-Welch
(Superseded to 690627)

Note: Included in Carburetor Overhaul Kit-Part No. 394989.

$

$

Not available
