38566 (1132) - Toro 32" Power Shift Snow Thrower (SN: 039000001 - 039999999) (1993) Engine Briggs Stratton Models 252416-0756-01 252416-0757-01 Parts Diagram

32" Power Shift Snow Thrower

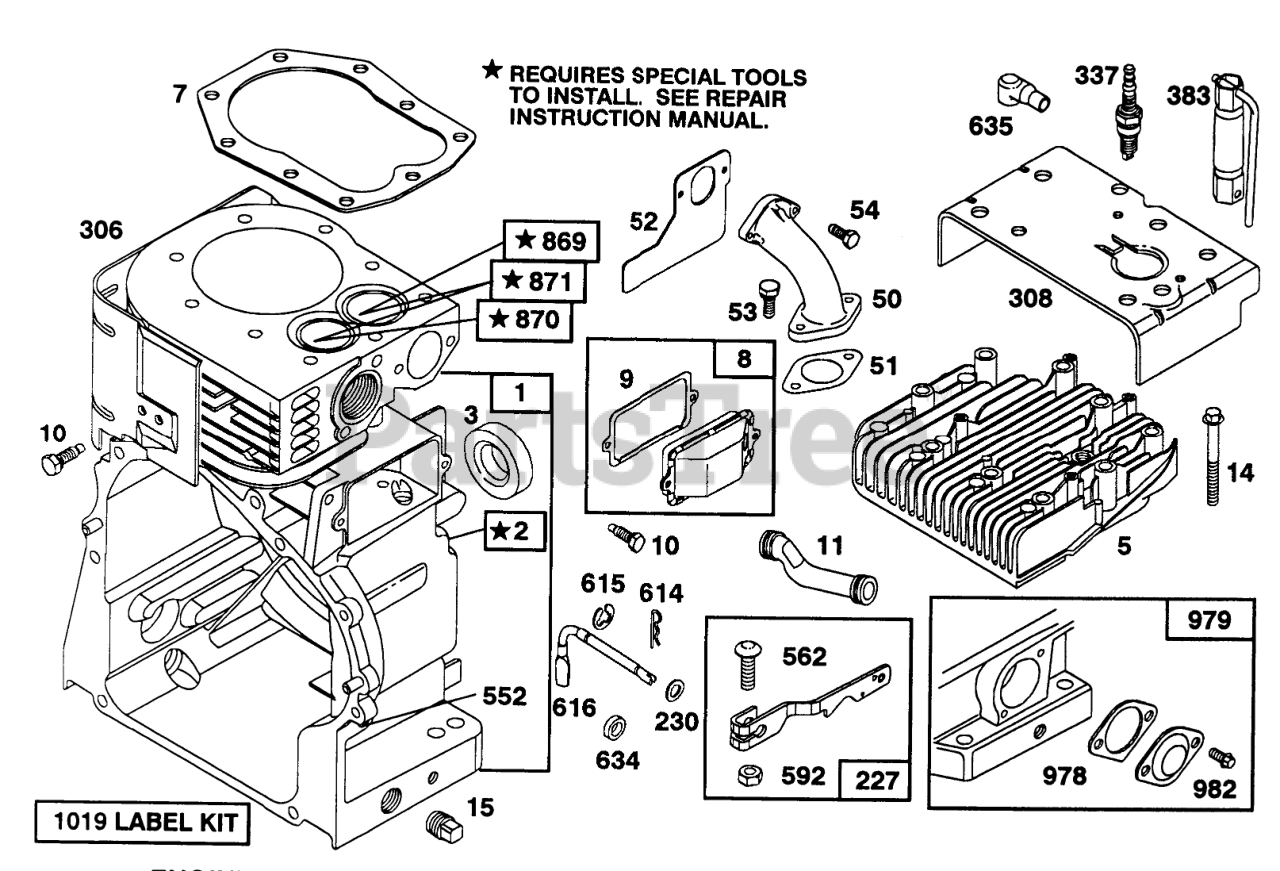

Engine Briggs Stratton Models 252416-0756-01 252416-0757-01 Parts Diagram

  • Title

1

Toro 396209

Cylinder Assembly

$

$

Currently unavailable

2

Toro 399265

Bushing and Seal Kit

$

$

Currently unavailable

3

Toro 391086

Seal-Oil

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

5

Toro 212917

Head-Cylinder

$

$

Not available

7

Toro 271866

Gasket-Cylinder Head

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

8

Toro 495736

Breather Assembly

$

$

Currently unavailable

9

Toro 27803

Gasket-Breather

Note: Included in Carburetor Overhaul Kit-Part No. 394989.

$

$

Currently unavailable

9

Toro 27803

Gasket-Breather

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

10

Toro 94621

Screw

$

$

Currently unavailable

11

Toro 280112

Tube-Breather

$

$

Currently unavailable

14

Toro 93723

Screw-Cylinder Head

$

$

Currently unavailable

15

Toro 94239

Plug-Pipe

$

$

Currently unavailable

50

Toro 490051

Elbow-Intake

$

$

Currently unavailable

51

Toro 270267

Gasket-Barab. Mtg

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

51

Toro 270267

Gasket-Barab. Mtg

Note: Included in Carburetor Overhaul Kit-Part No. 394989.

$

$

Currently unavailable

52

Toro 270872

Gasket-Intake

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

52

Toro 270872

Gasket-Intake

Note: Included in Carburetor Overhaul Kit-Part No. 394989.

$

$

Currently unavailable

53

Toro 93415

Screw

$

$

Currently unavailable

54

Toro 93208

Screw-Sem

$

$

Currently unavailable

227

Toro 396775

Lever-Assy-Governor

$

$

Currently unavailable

230

Toro 94742

Washer-Flat

$

$

Currently unavailable

306

Toro 224542

Shield-Cylinder

$

$

Currently unavailable

308

Toro 222306

Cover Cyl. Head

$

$

Currently unavailable

337

Toro 802592

Plug-Spark

$

$

Currently unavailable

383

Toro 89838

Wrench-Plug, Spark

$

$

Currently unavailable

552

Toro 231598

Bushing-Gov.Crank

$

$

Currently unavailable

562

Toro 92613

Bolt

$

$

Currently unavailable

592

Toro 231082

Nut (Governor Control Lever)

$

$

Currently unavailable

614

Toro 93306

Pin-Cotter

$

$

Currently unavailable

615

Toro 93307

Retainer-Ring

$

$

Currently unavailable

616

Toro 231057

Ring-Retainer

$

$

Currently unavailable

634

Toro 491323

Seal-Oil

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

635

Toro 66538

Boot-Plug, Spark

$

$

Currently unavailable

869

Toro 261463

Seat-Intake Valve

$

$

Currently unavailable

870

Toro 213316

CG7024 TWO WHEEL TR

$3.23

$

Usually ships in 3-6 days

0

871

Toro 231218

Guide-Valve
(Superseded to 702263)

$

$

Not available

978

Toro 271736

Gasket-Oil Switch

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

979

Toro 398194

Cover-Oil GARD Hole

$

$

Currently unavailable

982

Toro 94139

Cover Screw-Oil GARD

$

$

Currently unavailable

1019

Toro 491195

Decal Kit

$

$

Currently unavailable
