38566 (1132) - Toro 32" Power Shift Snow Thrower (SN: 039000001 - 039999999) (1993) Engine Briggs Stratton Models 252416-0756-01 252416-0757-01 7 Parts Diagram

32" Power Shift Snow Thrower

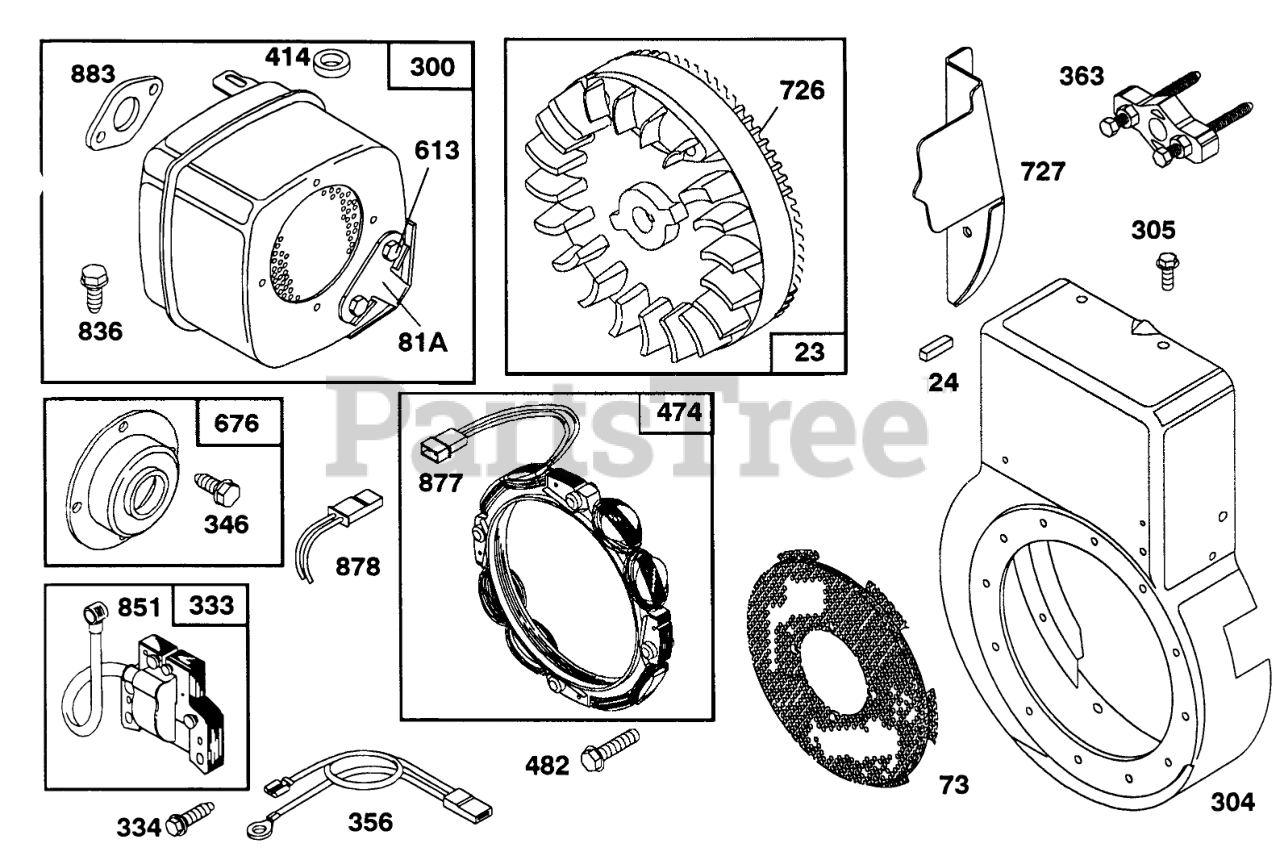

Engine Briggs Stratton Models 252416-0756-01 252416-0757-01 7 Parts Diagram

  • Title

23

Toro 391988

Flywheel and Ring Gear

$

$

Currently unavailable

24

Toro 222698

Key

$

$

Currently unavailable

81A

Toro 223016

Screw

$

$

Currently unavailable

300

Toro 491626

Muffler-Exhaust

$

$

Currently unavailable

304

Toro 490446

Housing-Blower

$

$

Currently unavailable

305

Toro 94608

Screw-Sem

$

$

Currently unavailable

333

Toro 398811

Armature Group

$

$

Currently unavailable

334

Toro 94731

Screw-Sem

$

$

Currently unavailable

346

Toro 93705

Screw

$

$

Currently unavailable

356

Toro 398874

Wire-Ground

$

$

Currently unavailable

363

Toro 19203

Puller-Flywheel

$

$

Currently unavailable

414

Toro 231109

Spacer

$

$

Currently unavailable

474

Toro 393474

Alternator

$

$

Currently unavailable

Toro 391595

Stator-Alternator

Note: Not Illustrated.

$

$

Currently unavailable

428

Toro 93621

Screw

$

$

Currently unavailable

613

Toro 93927

Screw

$

$

Currently unavailable

676

Toro 396903

Deflector-Exhaust

$

$

Currently unavailable

726

Toro 392134

Gear-Ring (Includes Mounting Parts)

$

$

Currently unavailable

727

Toro 223597

Guard-Ring Gear

$

$

Currently unavailable

836

Toro 92747

Screw

$

$

Currently unavailable

851

Toro 221798

Terminal-Cable

$

$

Currently unavailable

877

Toro 393456

Wire/Connector-Alternator

$

$

Currently unavailable

878

Toro 393362

Harness-Alternator

$

$

Currently unavailable

883

Toro 270917

Gasket Exhaust

Note: Included in Gasket Set-Part No. 391834

$

$

Currently unavailable

3

Toro 391086

Seal-Oil

Note: Included in Gasket Set-Part No 391834.

$

$

Currently unavailable

7

Toro 271866

Gasket-Cylinder Head

$

$

Currently unavailable

9

Toro 27803

Gasket-Breather

Note: Included in Gasket Set-Part No 391834.

$

$

Currently unavailable

12

Toro 271704

Gasket-Crankcase Cover, 1/64" thick

Note: Included in Gasket Set-Part No 391834.

$

$

Currently unavailable

Toro 272219

Gasket-Crankcase Cover (.005" Thick)

Note: Included in Gasket Set-Part No 391834.

$

$

Currently unavailable

Toro 272220

Gasket-Crankcase Cover (.009" Thick)

Note: Included in Gasket Set-Part No 391834.

$

$

Currently unavailable

20

Toro 291675

Seal-Oil

Note: Included in Gasket Set-Part No 391834.

$

$

Currently unavailable

51

Toro 270267

Gasket-Barab. Mtg

Note: Included in Gasket Set-Part No 391834.

$

$

Currently unavailable

51

Toro 270267

Gasket-Barab. Mtg

Note: Included in Carburetor Overhaul Kit-Part No. 394989.

$

$

Currently unavailable

52

Toro 270872

Gasket-Intake

Note: Included in Gasket Set-Part No 391834.

$

$

Currently unavailable

52

Toro 270872

Gasket-Intake

Note: Included in Carburetor Overhaul Kit-Part No. 394989.

$

$

Currently unavailable

94

Toro 292681

Valve Assembly

Note: Included in Carburetor Overhaul Kit-Part No. 394989.

$

$

Currently unavailable

102

Toro 270268

Gasket-Carburetor Body

Note: Included in Carburetor Overhaul Kit-Part No. 394989.

$

$

Currently unavailable

102

Toro 270268

Gasket-Carburetor Body

Note: Included in Gasket Set-Part No 391834.

$

$

Currently unavailable

104

Toro 230896

Pin-Float

Note: Included in Carburetor Overhaul Kit-Part No. 394989.

$

$

Currently unavailable

113

Toro 394730

Nozle-Carburetor

Note: Included in Carburetor Overhaul Kit-Part No. 394989.

$

$

Currently unavailable

114

Toro 68667

Gasket-Nozzle

Note: Included in Carburetor Overhaul Kit-Part No. 394989.

$

$

Currently unavailable

118

Toro 99525

Value-Needle

Note: Included in Carburetor Overhaul Kit-Part No. 394989.

$

$

Currently unavailable

121

Toro 394989

Carburetor Overhaul Kit

$

$

Currently unavailable

127

Toro 221747

Plug-Welch

Note: Included in Carburetor Overhaul Kit-Part No. 394989.

$

$

Currently unavailable

358

Toro 391834

Gasket Set

$

$

Currently unavailable

524

Toro 68838

Seal-Fill Tube

Note: Included in Gasket Set-Part No 391834.

$

$

Currently unavailable

634

Toro 491323

Seal-Oil

Note: Included in Gasket Set-Part No 391834.

$

$

Currently unavailable

978

Toro 271736

Gasket-Oil Switch

Note: Included in Gasket Set-Part No 391834.

$

$

Currently unavailable
