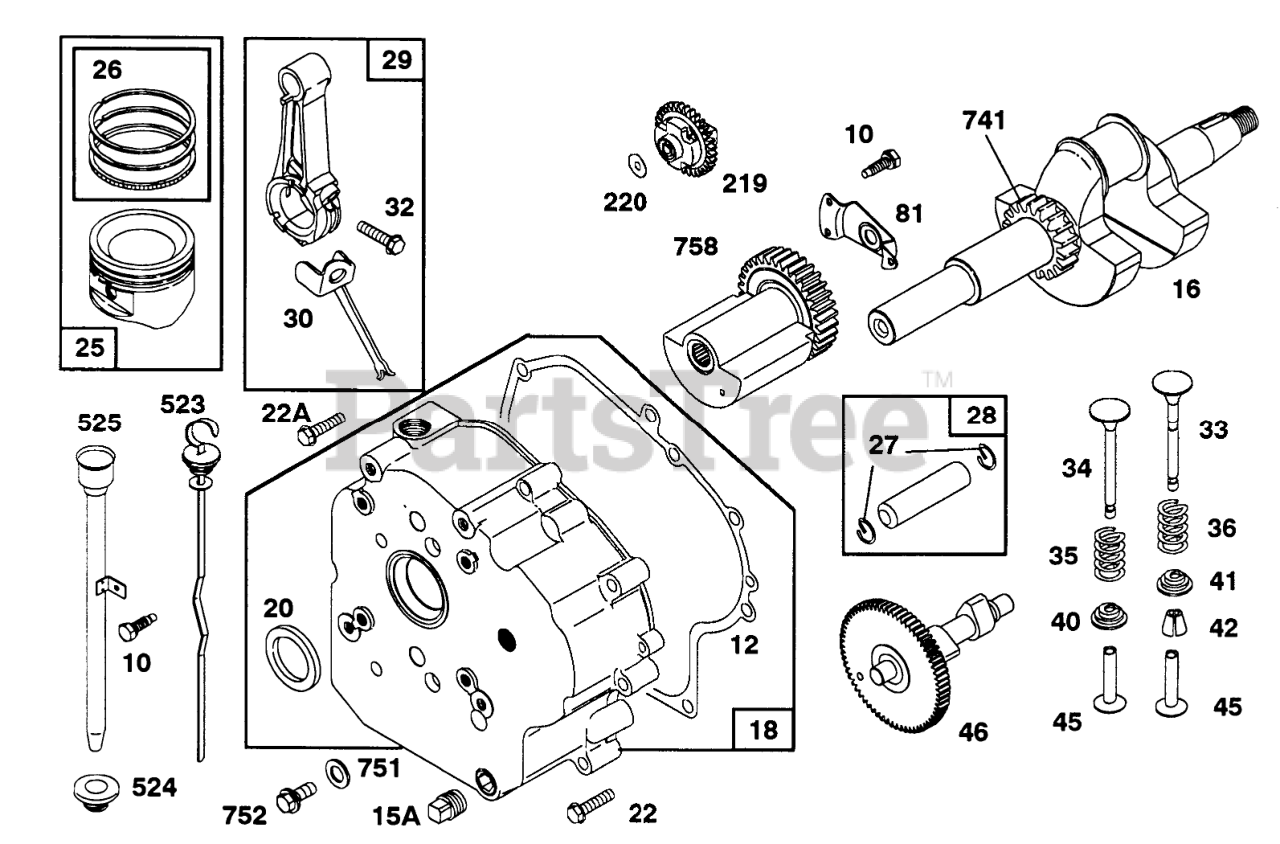

38566 (1132) - Toro 32" Power Shift Snow Thrower (SN: 039000001 - 039999999) (1993) Engine Briggs Stratton Models 252416-0756-01 252416-0757-01 2 Parts Diagram

32" Power Shift Snow Thrower

Engine Briggs Stratton Models 252416-0756-01 252416-0757-01 2 Parts Diagram

  • Title

10

Toro 94621

Screw

$

$

Currently unavailable

12

Toro 271704

Gasket-Crankcase Cover, 1/64" thick

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

Toro 272219

Gasket-Crankcase Cover (.005" Thick)

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

Toro 272220

Gasket-Crankcase Cover (.009" Thick)

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

15A

Toro 93418

Plug

$

$

Currently unavailable

16

Toro 399723

Crankshaft

$

$

Currently unavailable

18

Toro 492661

Cover Assy.-Crankcase

$

$

Currently unavailable

20

Toro 291675

Seal-Oil

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

22

Toro 93585

Screw-Sem

$

$

Currently unavailable

22A

Toro 93764

Screw-Crankcase

$

$

Currently unavailable

25

Toro 391285

Assembly-Standard

$

$

Currently unavailable

Toro 391287

Piston Assy.-.010" O.S.

$

$

Currently unavailable

Toro 391288

Piston Assy.-.020" O.S.

$

$

Currently unavailable

Toro 391289

Piston Assy.-.030" O.S.

$

$

Currently unavailable

26

Toro 391780

Ring Set (Std.)

$

$

Currently unavailable

Toro 391781

Ring Set (.010 O.S.)

$

$

Currently unavailable

Toro 391782

Ring Set (.020 O.S.)

$

$

Currently unavailable

Toro 391783

Ring Set (.030" O.S.)

$

$

Currently unavailable

27

Toro 260924

Lock-Piston Pin

$

$

Currently unavailable

28

Toro 299691

Pin-Piston (Std.)

$

$

Currently unavailable

Toro 391286

Pin-Piston (.005" OS.)

$

$

Currently unavailable

29

Toro 490348

Rod-Connecting

$

$

Currently unavailable

30

Toro 222329

Dipper-Conn. Rod

$

$

Currently unavailable

32

Toro 94671

Screw-Conn. Rod

$

$

Currently unavailable

33

Toro 261185

Valve-Exhaust

$

$

Currently unavailable

34

Toro 261462

Valve-Intake

$

$

Currently unavailable

35

Toro 65906

Spring-Valve

$

$

Currently unavailable

36

Toro 26828

Spring-Valve

$

$

Currently unavailable

40

Toro 221596

Retainer-Valve

$

$

Currently unavailable

41

Toro 292260

Retainer-Valve

$

$

Currently unavailable

42

Toro 93630

Retainer-Rotocoil

$

$

Currently unavailable

45

Toro 262248

Tappet

$

$

Currently unavailable

46

Toro 212897

Gear-Cam

$

$

Currently unavailable

219

Toro 494845

Gear-Governor

$

$

Currently unavailable

220

Toro 221551

Washer-Thrust

$

$

Currently unavailable

523

Toro 490665

Dipstick/Filler Oil

$

$

Currently unavailable

524

Toro 68838

Seal-Fill Tube

Note: Included in Gasket Set-part No. 391834.

$

$

Currently unavailable

525

Toro 392283

Tube-Oil Filler

$

$

Currently unavailable

741

Toro 262135

Gear-Timing

$

$

Currently unavailable

751

Toro 22355

Washer

$

$

Currently unavailable

752

Toro 93554

Screw

$

$

Currently unavailable

758

Toro 491787

Counterweight and Bearing Assembly

$

$

Currently unavailable
