38566 (1132) - Toro 32" Power Shift Snow Thrower (SN: 039000001 - 039999999) (1993) 32" Auger Gearcase Assembly No. 74-1562 Parts Diagram

32" Power Shift Snow Thrower

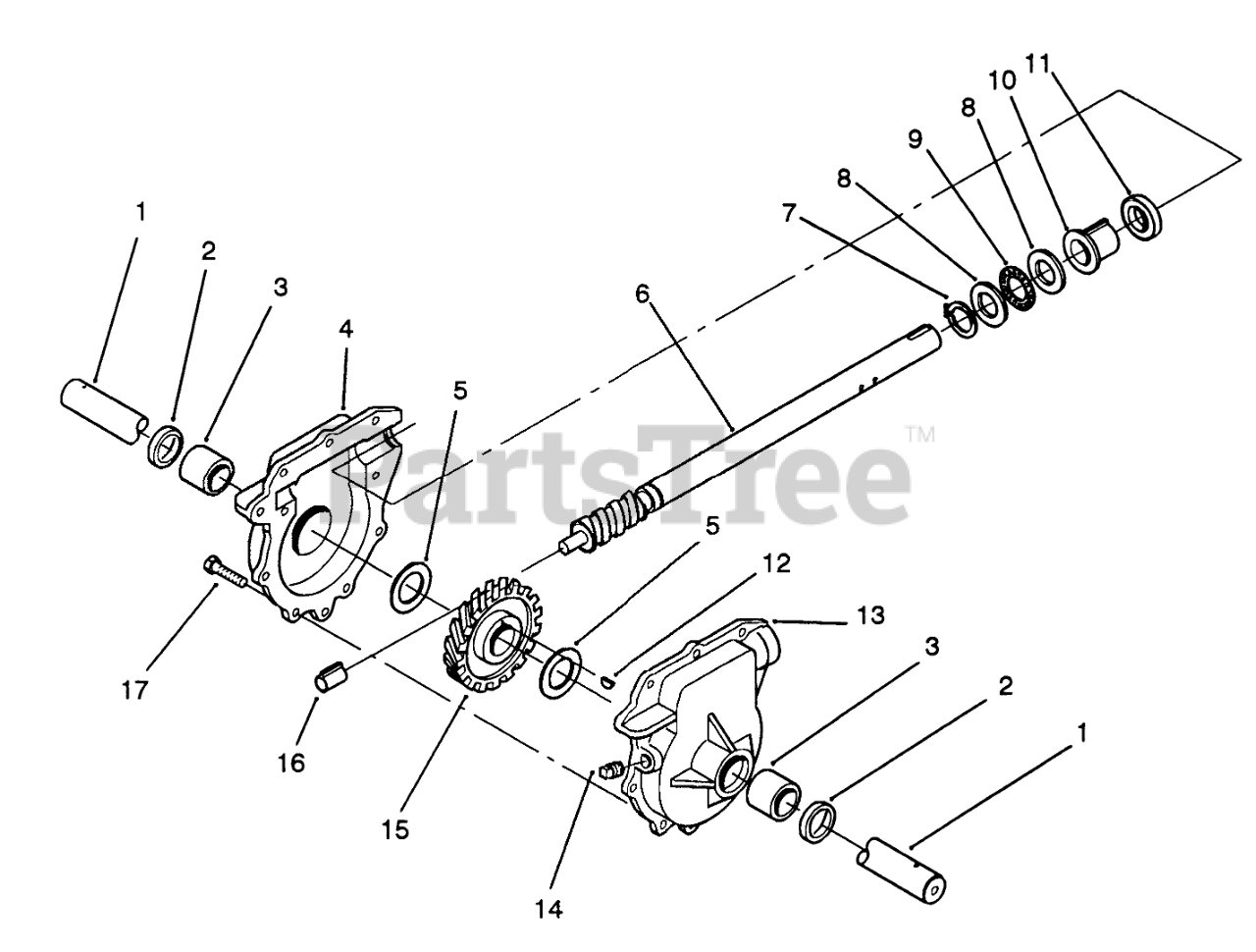

32" Auger Gearcase Assembly No. 74-1562 Parts Diagram

  • Title

1

Toro 62-1532

SHAFT-AUGER

$

$

Not available

2

Toro 7-0045

SEAL-OIL

$17.99

$

In Stock, Qty 10

0

3

Toro 256-237

BUSHING

$15.99

$

In Stock, Qty 5

0

4

Toro 74-1580

See Supercession: 110-3439
(Superseded to 110-3439)

$393.99

$

Usually ships in 3-6 days

0

5

Toro 252-71

WASHER-THRUST

$19.99

$

In Stock, only 2 left!

0

6

Toro 66-7810

See Supercession: 66-7811
(Superseded to 66-7811)

$266.99

$

Usually ships in 3-6 days

0

7

Toro 32151-33

RING-RETAINING, EXT

$3.49

$

In Stock, only 2 left!

0

8

Toro 252-78

WASHER-THRUST

$26.99

$

In Stock, only 2 left!

0

9

Toro 252-76

BEARING-THRUST

$21.99

$

In Stock, only 1 left!

0

10

Toro 37-6560

BUSHING-INPUT

$43.99

$

In Stock, only 1 left!

0

11

Toro 253-149

SEAL-OIL

$12.99

$

Usually ships in 3-6 days

0

12

Toro 3257-10

KEY-WOODRUFF

$6.49

$

Usually ships in 3-6 days

0

13

Toro 74-1570

See Supercession: 110-3439
(Superseded to 110-3439)

$393.99

$

Usually ships in 3-6 days

0

14

Toro 281-1

PLUG-PIPE, SQH

$5.49

$

Usually ships in 3-6 days

0

15

Toro 62-0120

GEAR-HELICAL
(Superseded to 138-0696)

$68.99

$

In Stock, only 1 left!

0

16

Toro 62-1150

BUSHING-WORM

$7.99

$

In Stock, only 3 left!

0

17

Toro 32144-110

SCREW-HWH

$1.49

$

In Stock, only 4 left!

0

Toro 505-129

DISCONTINUED

Note: Not illustrated

$

$

Not available
