38566 (1132) - Toro 32" Power Shift Snow Thrower (SN: 020000001 - 029999999) (1992) HANDLE ASSEMBLY Parts Diagram

32" Power Shift Snow Thrower

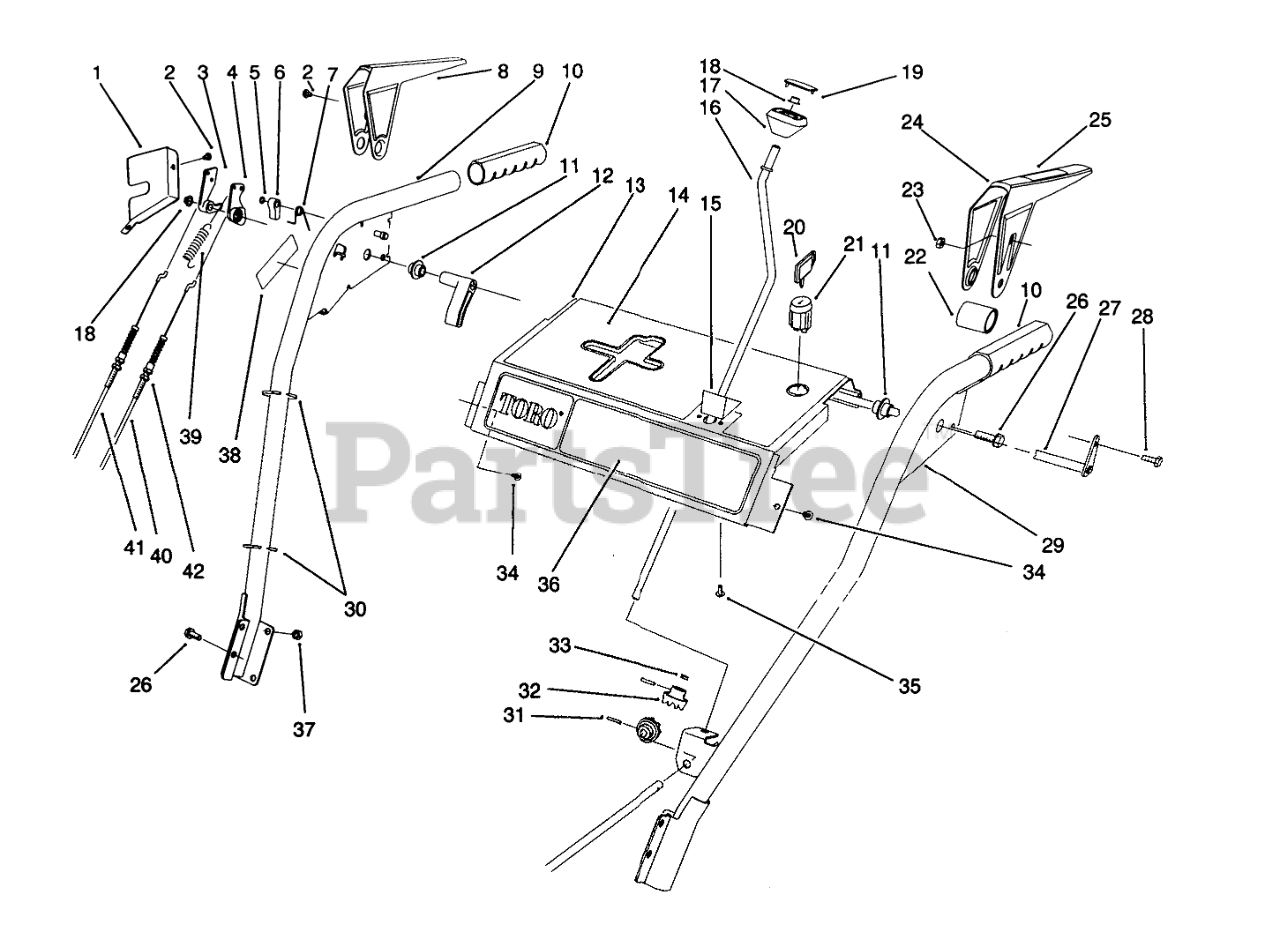

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 63-2170

Cover Lever Lock
(Superseded to 63-2170-03)

$

$

Not available

2

Toro 2210-250

SCREW-HH

$

$

Not available

3

Toro 62-0300

TANG-LOCKING

$

$

Not available

4

Toro 62-0290

CAM-RELEASE

$

$

Not available

5

Toro 32151-66

E-RING-RETAINER

$

$

Not available

6

Toro 62-0280

LATCH-LOCKING

$

$

Not available

7

Toro 63-2910

SPRING-TORSION

$

$

Not available

8

Toro 62-1050

Lever-Impeller
(Superseded to 62-1050-03)

$59.99

$

Usually ships in 3-6 days

0

9

Toro 62-1381

Handle-R.H.
(Superseded to 100-3597)

$

$

Not available

10

Toro 66-7850

GRIP-HANDLE

$23.99

$

Usually ships in 3-6 days

0

11

Toro 62-1070

BUSHING-LEVER

$3.99

$

Usually ships in 3-6 days

0

12

Toro 62-1640

LEVER-TRIP

$

$

Not available

13

Toro 66-8100

Panel-Control
(Superseded to 66-8100-03)

$234.99

$

Usually ships in 3-6 days

0

14

Toro 66-6850

DECAL-TOP PANEL

$

$

Not available

Toro 63-2550

Decal-Panel, Top
(Superseded to 94-2578)

Note: Not illustrated

$

$

Not available

15

Toro 62-1490

PLATE-GUIDE

$7.99

$

Usually ships in 3-6 days

0

16

Toro 63-2160

CRANK-ROD, CHUTE

$

$

Not available

17

Toro 62-1320

KNOB-CONTROL, CHUTE

$27.99

$

Usually ships in 3-6 days

0

18

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

19

Toro 62-1520

COVER-KNOB

$

$

Not available

20

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 20+

0

21

Toro 40-5940

SWITCH

$15.99

$

In Stock, Qty 18

0

22

Toro 63-3380

SPACER-LEVER, TRACTION

$

$

Not available

23

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

24

Toro 62-1060

Lever-Traction
(Superseded to 62-1060-03)

$

$

Not available

25

Toro 63-3050

DECAL-LEVER

$

$

Not available

26

Toro 3234-7

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

27

Toro 63-2030

CROSS ROD ASM

$112.99

$

Usually ships in 3-6 days

0

28

Toro 3290-359

SCREW-HWH

$

$

Not available

29

Toro 66-8091

Handle-L.H.
(Superseded to 66-8091-03)

$

$

Not available

30

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

31

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0

32

Toro 62-1460

GEAR-UNIVERSAL

$

$

Not available

33

Toro 62-1230

WASHER-RUBBER

$6.99

$

In Stock, Qty 7

0

34

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

35

Toro 32104-118

SCREW-PPH

$

$

Not available

36

Toro 63-2530

DECAL-FRT PANEL (1132)

$

$

Not available

37

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

38

Toro 66-6860

DECAL-WARNING

$

$

Not available

Toro 63-3470

DECAL-WARNING

Note: Not illustrated

$

$

Not available

39

Toro 63-2720

Spring-Extension
(Superseded to 88-0810)

$24.99

$

Usually ships in 3-6 days

0

40

Toro 63-2710

CABLE-TRACTION

$96.99

$

Usually ships in 3-6 days

0

41

Toro 63-2700

CABLE-IMPELLER

$63.99

$

In Stock, only 2 left!

0

42

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

Toro 63-3420

HARNESS-WIRING

Note: Not illustrated

$

$

Not available
