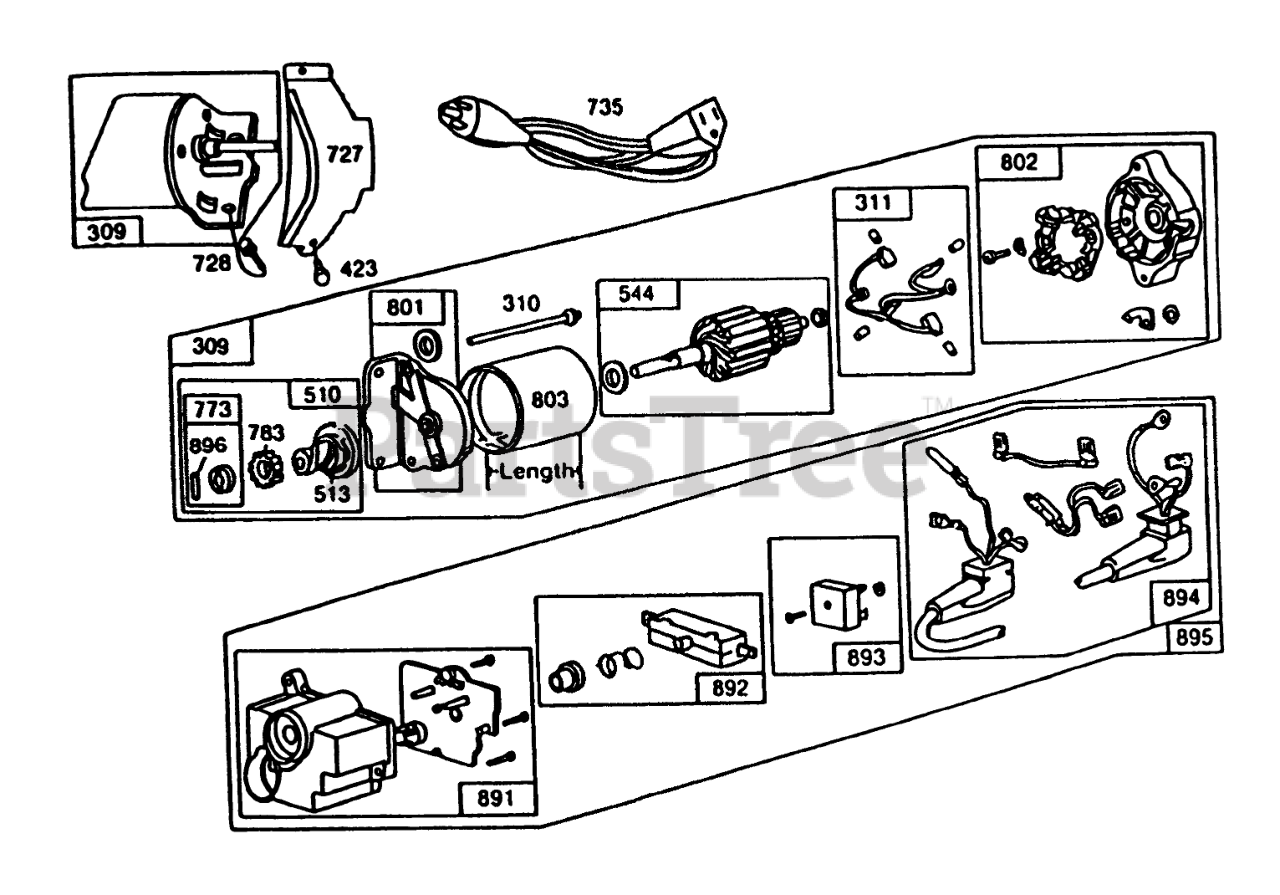

38566 (1132) - Toro 32" Power Shift Snow Thrower (SN: 020000001 - 029999999) (1992) 110V ELECTRIC STARTER NO. 37-4630 (OPTIONAL) Parts Diagram

32" Power Shift Snow Thrower

110V ELECTRIC STARTER NO. 37-4630 (OPTIONAL) Parts Diagram

  • Title
309

Briggs & Stratton 396505

Motor & Drive Assembly

$319.99

$

Usually ships in 2-12 days

0

310

Briggs & Stratton 93934

Thru Bolt Assembly
(Superseded to 690318)

$6.49

$

In Stock, only 2 left!

0

311

Briggs & Stratton 393612

Brush Assembly

$45.99

$

Usually ships in 2-12 days

0

423

Briggs & Stratton 93984

Screw
(Superseded to 691002)

$8.49

$

In Stock, only 2 left!

0

510

Briggs & Stratton 391461

Drive Assembly (Incl. Ref. #513, 773, 783 & 896)
(Superseded to 696535)

$36.99

$

Usually ships in 2-12 days

0

513

Briggs & Stratton 391135

Clutch Assembly
(Superseded to 692024)

$21.99

$

In Stock, only 2 left!

0

544

Briggs & Stratton 393607

Armature Assembly
(Superseded to 396505)

$319.99

$

Usually ships in 2-12 days

0

727

Briggs & Stratton 395405

Cover-Starter (Includes Mounting Screws)

$

$

Not available

728

Briggs & Stratton 93535

Crew
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

735

$59.99

$

Usually ships in 2-12 days

0

773

Briggs & Stratton 391462

Retainer (Incl. Ref. #896)

$10.99

$

Usually ships in 2-12 days

0

783

Briggs & Stratton 280104

Gear
(Superseded to 695708)

$6.99

$

In Stock, only 2 left!

0

801

Briggs & Stratton 394398

Drive End Cap Assembly

$31.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 491192

Commutator End Cap Assy.

$22.99

$

Usually ships in 2-12 days

0

803

Briggs & Stratton 491008

Housing Assembly

$33.99

$

Usually ships in 2-12 days

0

891

Briggs & Stratton 393705

Housing Group

$

$

Not available

892

$

$

Not available

893

$40.99

$

In Stock, only 1 left!

0

894

$

$

Not available

895

Briggs & Stratton 393486

Control Group

$58.99

$

Usually ships in 2-12 days

0

896

Briggs & Stratton 93754

Pin
(Superseded to 94192)

$4.99

$

Usually ships in 2-12 days

0

Toro 38-0070

Bracket Switch

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

Toro 38-0070

Bracket Switch

Note: Not illustrated

$

$

Not available

Toro 3296-2

NUT-LOCK, NI

Note: Not illustrated

$2.49

$

In Stock, Qty 20+

0

Toro 3296-2

NUT-LOCK, NI

Note: Obtain parts from www.briggsandstratton.com

$2.49

$

In Stock, Qty 20+

0

Toro 3252-6

10-24 X 1 FIL HD MS

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

Toro 3252-6

10-24 X 1 FIL HD MS

Note: Not illustrated

$

$

Currently unavailable
