38563 - Gravely Cart for 4-Wheel Tractor CART Parts Diagram

Cart for 4-Wheel Tractor

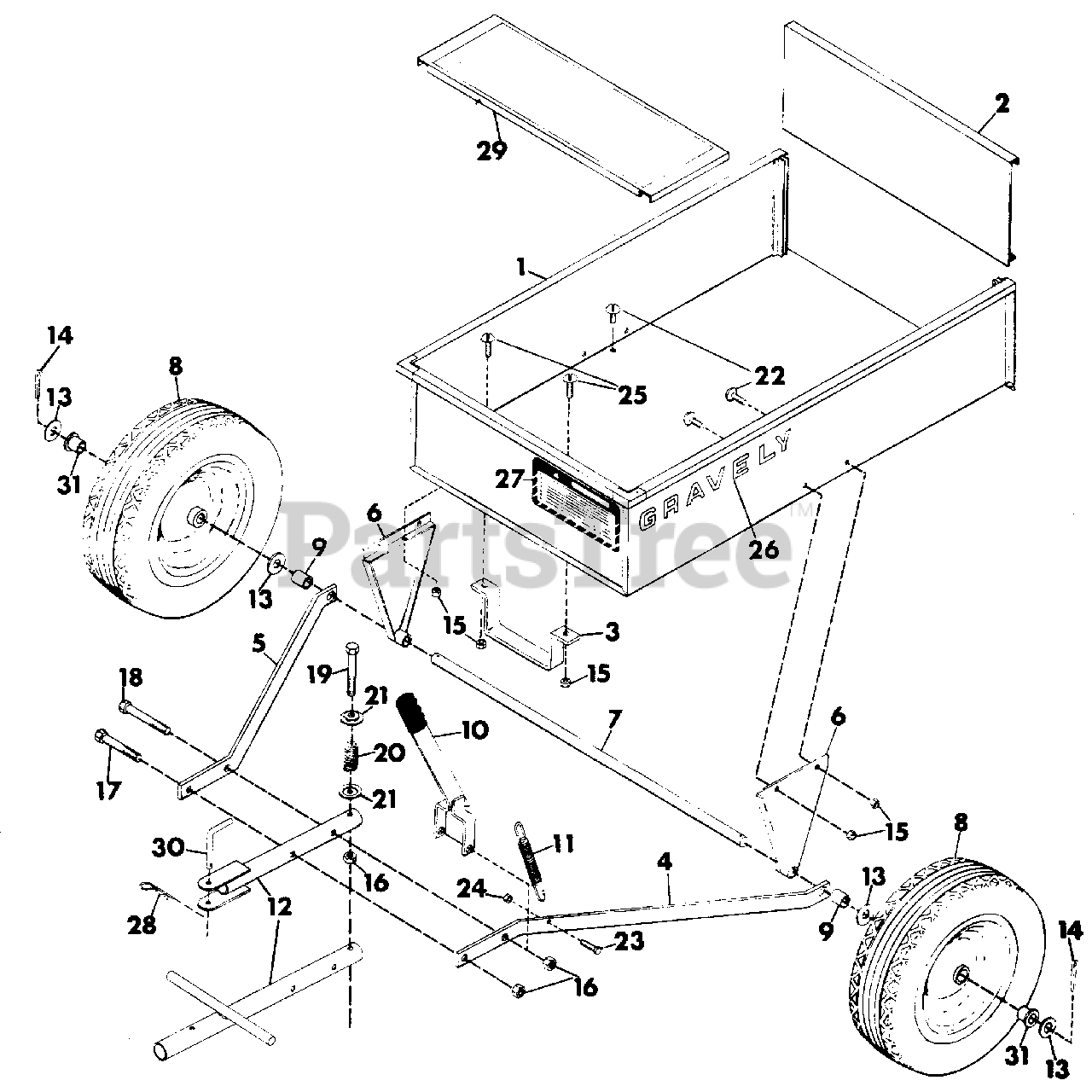

CART Parts Diagram

  • Title

1

Gravely 015099

BODY
(Superseded to 20179100)

$244.99

$

Usually ships in 4-12 days

0

2

Gravely 015100

TAILGATE
(Superseded to 20179200)

$

$

Not available

3

Gravely 015101

BAR, HITCH
(Superseded to 20179300)

$

$

Not available

4

Gravely 015102

BRACE, DRAWBAR L
(Superseded to 20179400)

$

$

Not available

5

Gravely 015103

BRACE, DRAWBAR R
(Superseded to 20179500)

$

$

Not available

6

Gravely 015104

SUPPORT, AXLE
(Superseded to 20179600)

$

$

Not available

7

Gravely 015105

AXLE
(Superseded to 20179700)

$

$

Not available

8

Gravely 015106

ASSEMBLY, WHEEL
(Superseded to 21474100)

$

$

Not available

9

Gravely 015107

SPACER
(Superseded to 20179900)

$

$

Not available

10

Gravely 015108

ASSEMBLY, HANDLE
(Superseded to 20180000)

$

$

Not available

11

Gravely 015109

SPRING
(Superseded to 20180100)

$

$

Not available

12

Gravely 038550

WELDMENT, TONGUE(4-WHEEL TRACTOR)
(Superseded to 20648900)

Note: (4-WHEEL TRACTOR)

$

$

Not available

12

Gravely 015216

DRAWBAR(2-WHEEL TRACTOR)
(Superseded to 20356300)

Note: (2-WHEEL TRACTOR)

$

$

Not available

13

Gravely 131019

WASHER, FLAT 1.062X2.000X.134
(Superseded to 06443000)

$3.99

$

In Stock, only 3 left!

0

14

Gravely 137253

PIN, COTTER 3/16X1-5/8
(Superseded to 06705800)

$2.99

$

Usually ships in 4-12 days

0

15

Gravely 120377

NUT, HEX 3/8-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

17

Gravely 180192

BOLT, HEX 1/2-13X3.50
(Superseded to 05901937)

$4.99

$

In Stock, only 1 left!

0

18

Gravely 433156

BOLT, HEX 1/2-13X4.50
(Superseded to 05901932)

$5.99

$

In Stock, only 1 left!

0

19

Gravely 180194

BOLT, HEX 1/2-13X4.00
(Superseded to 05901734)

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 012613

SPRING, VALVE
(Superseded to 08353700)

$

$

Not available

21

Gravely 012738

LOCATOR, VALVE SPRING
(Superseded to 21354400)

$

$

Not available

22

Gravely 160776

SCREW, MACH 3/8-16X.75
(Superseded to 21057600)

$

$

Not available

23

Gravely 180022

BOLT, HEX 1/4-20X1.00
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

24

Gravely 120375

NUT, HEX 1/4-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

25

Gravely 160825

SCREW, MACH 3/8-16X1.00
(Superseded to 21057700)

$

$

Not available

26

Gravely 019365

DECAL, GRAVELY WHITE VINYL
(Superseded to 20278500)

$

$

Not available

27

Gravely 020934

DECAL, WARNING
(Superseded to 05200900)

$

$

Not available

28

Gravely 010405

PIN, HAIR(4-WHEEL TRACTOR ONLY)
(Superseded to 06714000)

Note: (4-WHEEL TRACTOR ONLY)

$2.99

$

In Stock, Qty 6

0

29

Gravely 015111

SEAT(2-WHEEL TRACTOR ONLY)
(Superseded to 20180300)

Note: (2-WHEEL TRACTOR ONLY)

$

$

Not available

30

Gravely 038584

PIN, HITCH(4-WHEEL TRACTOR)
(Superseded to 20649200)

Note: (4-WHEEL TRACTOR)

$

$

Not available

31

Gravely 035004

BEARING(2 FOR EACH WHEEL)
(Superseded to 20616700)

Note: (2 FOR EACH WHEEL)

$

$

Not available
