38563 (CCR 6053 R) - Toro 21" Quick Clear Snow Thrower (SN: 406350000 - 999999999) Rotor Drive Assembly Parts Diagram

21" Quick Clear Snow Thrower

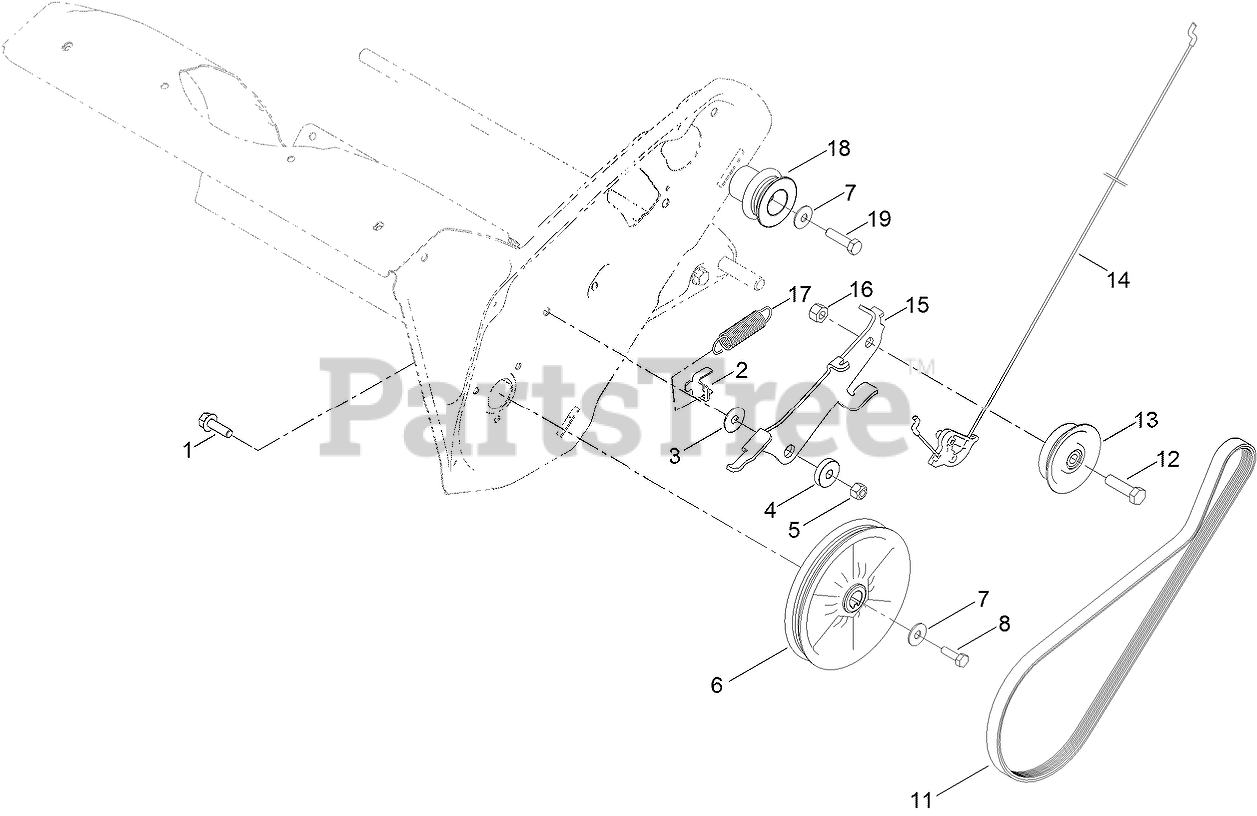

Rotor Drive Assembly Parts Diagram

  • Title

1

Toro 137-3067

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

2

Toro 136-7133

CLIP-SPRING

$1.99

$

In Stock, Qty 20+

0

3

Toro 108-4925

WASHER

$1.99

$

In Stock, Qty 5

0

4

Toro 108-4916

BUSHING-PIVOT

$2.99

$

In Stock, only 2 left!

0

5

Toro 119-4038

NUT-HEX

$2.99

$

In Stock, Qty 20+

0

6

Toro 121-6624

PULLEY

$20.99

$

In Stock, only 4 left!

0

7

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

8

Toro 137-3003

SCREW-HH,LOCK

$6.49

$

Usually ships in 3-6 days

0

11

Toro 121-6622

BELT-DRIVE

$20.99

$

In Stock, Qty 15

0

12

Toro 137-3065

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

13

Toro 114-3785

PULLEY-IDLER

$13.99

$

In Stock, only 1 left!

0

14

Toro 140-1000

CABLE-CLUTCH

$19.99

$

In Stock, only 1 left!

0

15

Toro 136-7138

ARM-IDLER

$11.99

$

In Stock, only 2 left!

0

16

Toro 137-3047

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

17

Toro 121-6630

SPRING-EXTENSION

$5.49

$

In Stock, Qty 6

0

18

Toro 125-7927

PULLEY-ENGINE

$43.99

$

Usually ships in 3-6 days

0

19

Toro 137-3021

SCREW-HH LOCK

$0.99

$

Usually ships in 3-6 days

0
