38563 (CCR 6053 R) - Toro 21" Quick Clear Snow Thrower (SN: 406350000 - 999999999) Chute Control Assembly Parts Diagram

21" Quick Clear Snow Thrower

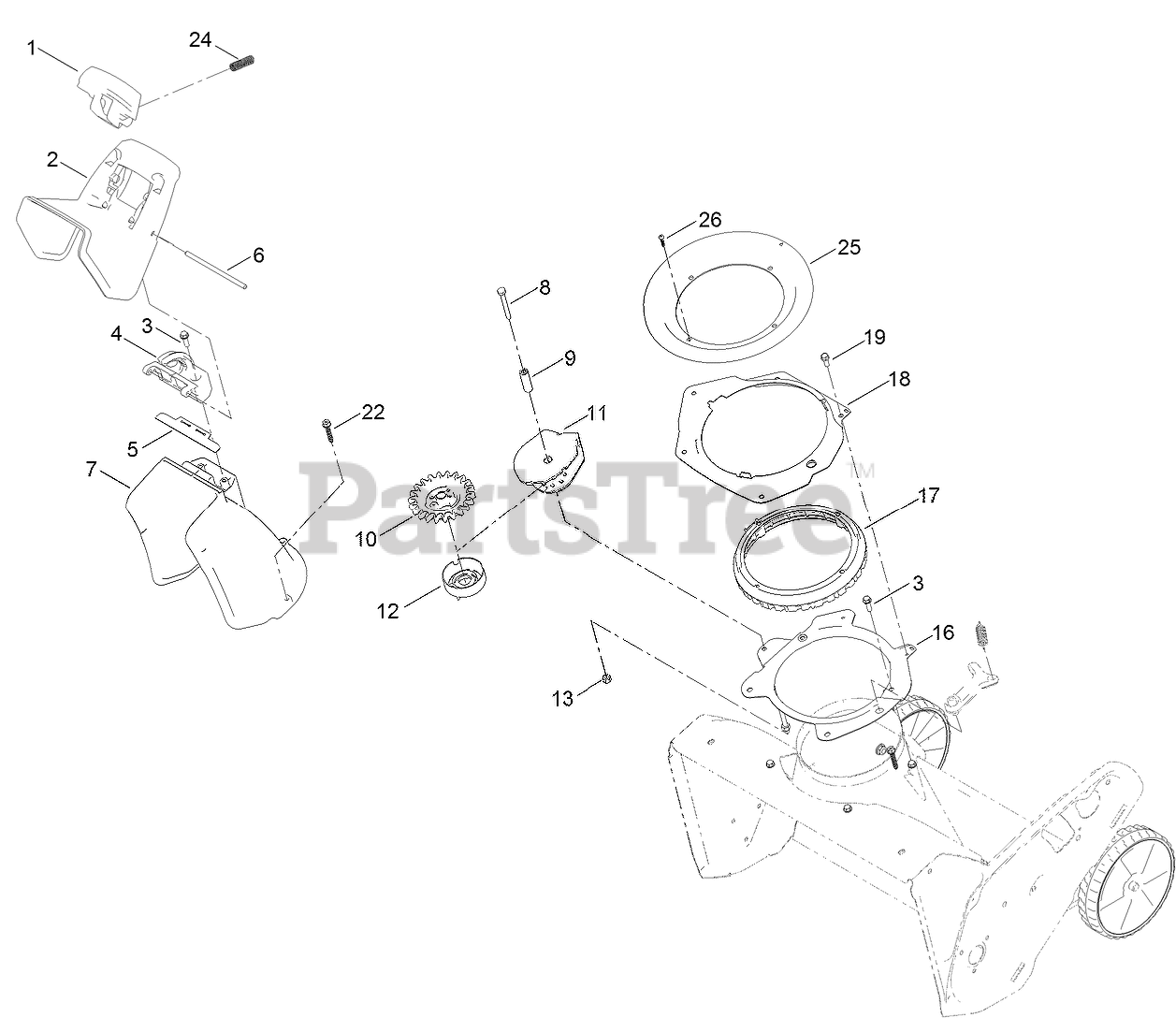

Chute Control Assembly Parts Diagram

  • Title

1

Toro 108-4941

TRIGGER-DEFLECTOR

$17.99

$

In Stock, only 1 left!

0

2

Toro 117-9121

DEFLECTOR-CHUTE, CE

$26.99

$

Usually ships in 3-6 days

0

3

Toro 137-3099

SCREW-PLASTITE, HWH

$1.49

$

Usually ships in 3-6 days

0

4

Toro 108-4942

HINGE-RATCHET, DEFLECTOR

$14.99

$

In Stock, only 1 left!

0

5

Toro 114-3790

SEAL-DEFLECTOR

$3.49

$

In Stock, Qty 9

0

6

Toro 136-8672

HINGE PIN-DEFLECTOR

$3.49

$

In Stock, Qty 14

0

7

Toro 108-4939

CHUTE

$20.99

$

Usually ships in 3-6 days

0

8

Toro 137-3034

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

9

Toro 108-4877

SPACER-SLEEVE, PINION

$6.49

$

Usually ships in 3-6 days

0

10

Toro 108-4875

PINION-GEAR

$13.99

$

In Stock, only 2 left!

0

11

Toro 108-4900-03

BRACKET-PINION

$13.99

$

Usually ships in 3-6 days

0

12

Toro 114-3792

RETAINER-CABLE

$5.49

$

In Stock, only 2 left!

0

13

Toro 137-3088

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

16

Toro 108-4883-03

RING-SUPPORT, CHUTE

$18.99

$

In Stock, only 1 left!

0

17

Toro 108-4882

RING-CHUTE, GEAR

$17.99

$

In Stock, only 1 left!

0

18

Toro 108-4874-03

RETAINER-RING, CHUTE

$18.99

$

In Stock, only 1 left!

0

19

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

22

Toro 137-3012

SCREW-PLASTITE, HWH

$1.99

$

In Stock, Qty 11

0

24

Toro 136-7136

SPRING-COMPRESSION

$1.49

$

In Stock, Qty 20+

0

25

Toro 114-3772

SEAL-RING, CHUTE

$17.99

$

In Stock, only 1 left!

0

26

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0
