38563 (CCR 6053 R) - Toro 21" Quick Clear Snow Thrower (SN: 405012000 - 406349999) Slider Track Assembly Parts Diagram

21" Quick Clear Snow Thrower

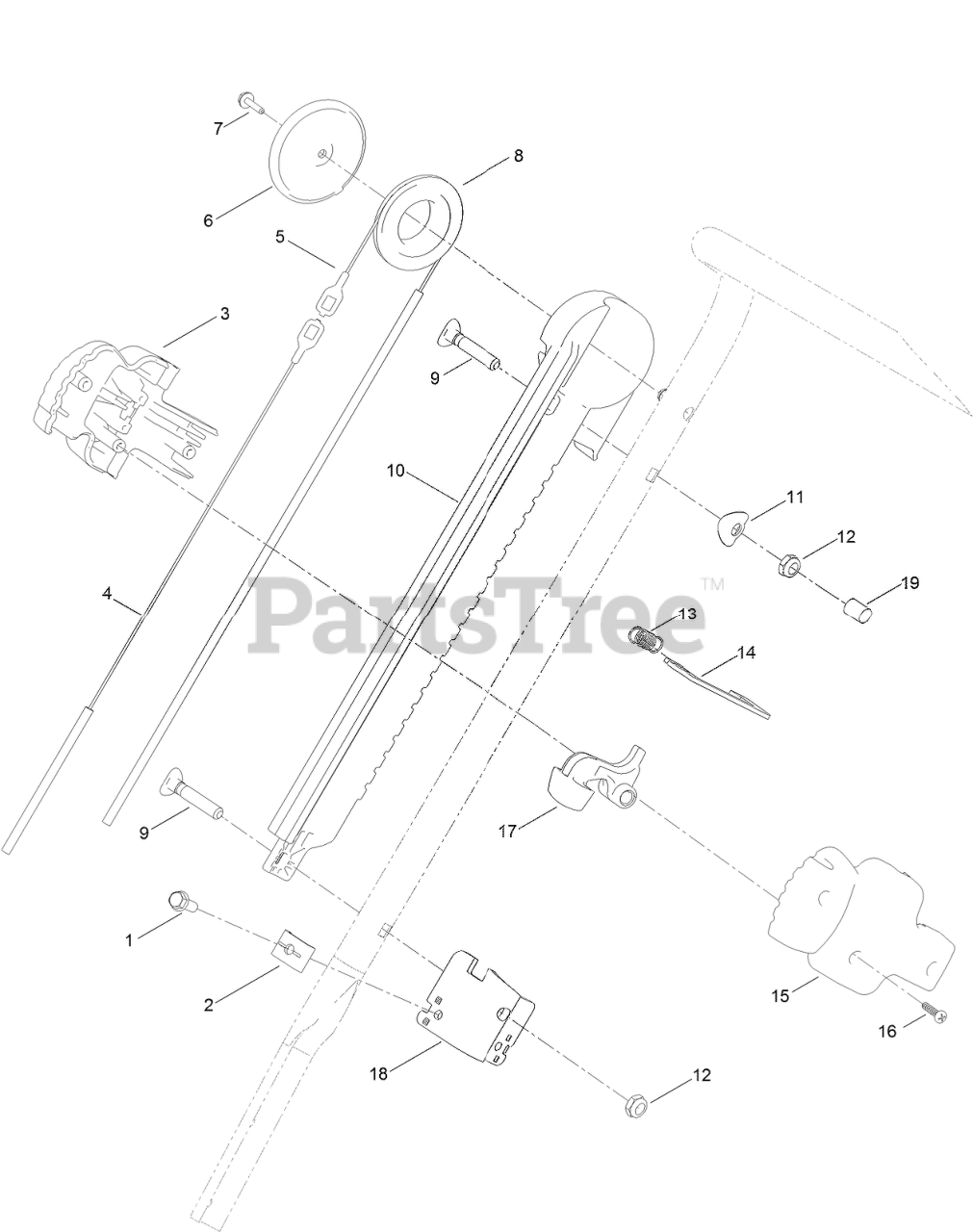

Slider Track Assembly Parts Diagram

  • Title

1

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

2

Toro 136-7191

CLAMP-CABLE

$4.99

$

Usually ships in 3-6 days

0

3

Toro 108-4912

HANDLE-SLIDER, RH

$13.99

$

Usually ships in 3-6 days

0

4

Toro 108-4897

CABLE-CHUTE, SHORT

$18.99

$

In Stock, only 1 left!

0

5

Toro 108-4898

CABLE-CHUTE, LONG

$23.99

$

In Stock, only 2 left!

0

6

Toro 108-4931

COVER-PULLEY

$6.99

$

Usually ships in 3-6 days

0

7

Toro 137-3110

SCREW-PLASTITE, HWH

$2.99

$

In Stock, only 1 left!

0

8

Toro 108-4907

PULLEY-SLIDER

$11.99

$

In Stock, Qty 5

0

9

Toro 137-3008

SCREW-HANDLE

$1.49

$

Usually ships in 3-6 days

0

10

Toro 108-4899

TRACK-SLIDER

$17.99

$

In Stock, only 2 left!

0

11

Toro 137-3009

WASHER-CUP

$0.99

$

In Stock, Qty 10

0

12

Toro 137-3089

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

13

Toro 108-4914

SPRING-TRIGGER

$4.99

$

Usually ships in 3-6 days

0

14

Toro 136-7131

LOCK PLATE-CHUTE

$3.49

$

Usually ships in 3-6 days

0

15

Toro 108-4911

HANDLE-SLIDER, LH

$13.99

$

Usually ships in 3-6 days

0

16

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

17

Toro 108-4913

TRIGGER

$8.99

$

Usually ships in 3-6 days

0

18

Toro 136-7132

BRACKET-CABLE

$5.99

$

Usually ships in 3-6 days

0

19

Toro 125-7943

CAP-THREAD, SCREW

$0.99

$

Usually ships in 3-6 days

0
