38563 (CCR 6053 R) - Toro 21" Quick Clear Snow Thrower (SN: 405012000 - 406349999) Engine Assembly No. 1 Parts Diagram

21" Quick Clear Snow Thrower

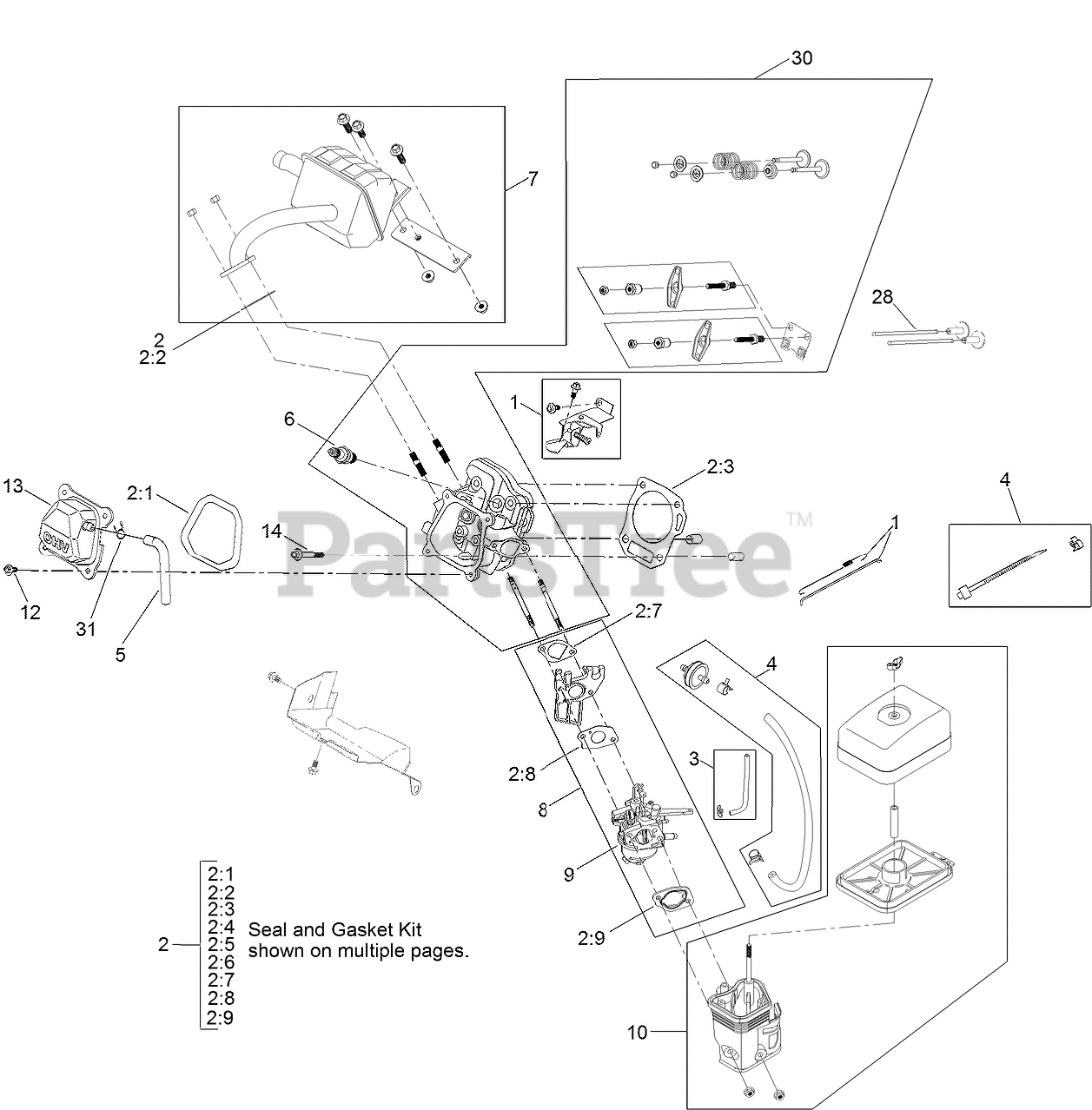

Engine Assembly No. 1 Parts Diagram

  • Title

1

Toro 136-7765

GOVERNOR KIT

$27.99

$

In Stock, only 2 left!

0

2

Toro 127-9001

GASKET AND SEAL KIT

$82.99

$

Usually ships in 3-6 days

0

2:1

Toro 121-0109

GASKET-COVER, VALVE

$5.49

$

Usually ships in 3-6 days

0

2:2

Toro 121-0167

GASKET-EXHAUST

$3.99

$

Usually ships in 3-6 days

0

2:3

Toro 127-9000

GASKET-HEAD, CYLINDER

$13.99

$

Usually ships in 3-6 days

0

2:4

Toro 121-0208

See Supercession: 133-9864
(Superseded to 133-9864)

$12.99

$

Usually ships in 3-6 days

0

2:5

Toro 121-0209

SEAL-OIL

$14.99

$

In Stock, only 1 left!

0

2:6

Toro 121-0105

GASKET-COVER, CRANKCASE

$14.99

$

Usually ships in 3-6 days

0

2:7

Toro 121-0076

GASKET-CARBURETOR

$1.99

$

In Stock, only 1 left!

0

2:8

Toro 121-0078

GASKET-CARBURETOR

$1.99

$

In Stock, only 3 left!

0

2:9

Toro 121-0080

GASKET-CARBURETOR

$5.99

$

In Stock, only 2 left!

0

3

Toro 127-9376

PRIMER LINE KIT

$31.99

$

In Stock, only 1 left!

0

4

Toro 121-4299

FUEL LINE KIT

$33.99

$

In Stock, only 1 left!

0

5

Toro 139-0631

TUBE-BREATHER

$4.99

$

Usually ships in 3-6 days

0

6

Toro 119-1901

See Supercession: 81-3250
(Superseded to 81-3250)

$3.49

$

In Stock, Qty 20+

0

7

Toro 121-4297

MUFFLER KIT

$82.99

$

Usually ships in 3-6 days

0

8

Toro 127-9008

CARBURETOR KIT

$91.99

$

In Stock, only 2 left!

0

9

Toro 127-9089

CARB REPAIR KIT WITH GASKETS

$27.99

$

In Stock, only 2 left!

0

10

Toro 121-4282

HEATER BOX KIT

$50.99

$

Usually ships in 3-6 days

0

12

Toro 120-4454

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

13

Toro 121-0499

VALVE COVER ASM

$18.99

$

Usually ships in 3-6 days

0

14

Toro 121-4110

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

28

Toro 121-4121

ROD-PUSH

$3.99

$

Usually ships in 3-6 days

0

30

Toro 133-9839

COMPLETE HEAD ASM

$134.99

$

Usually ships in 3-6 days

0

31

Toro 127-9408

CLAMP-HOSE

$1.49

$

Usually ships in 3-6 days

0

99

Toro 127-9037

HIGH ALTITUDE KIT

Note: Not illustrated

$11.99

$

Usually ships in 3-6 days

0
