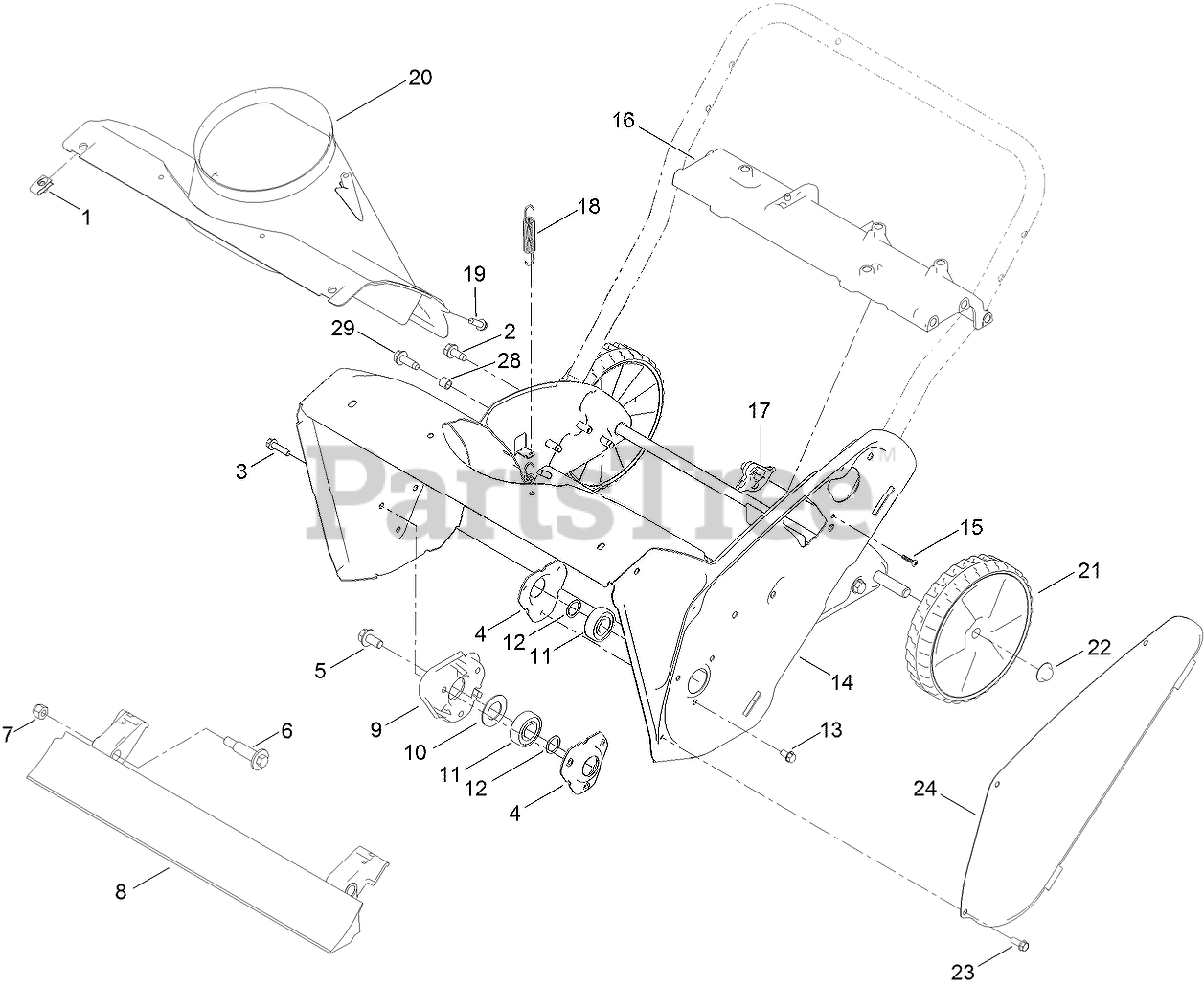

38563 (CCR 6053 R) - Toro 21" Quick Clear Snow Thrower (SN: 400000000 - 405011999) Main Frame, Lower Chute and Wheel Assembly Parts Diagram

21" Quick Clear Snow Thrower

Main Frame, Lower Chute and Wheel Assembly Parts Diagram

  • Title

1

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

2

Toro 137-3044

SCREW-THD ROLL, HWH

$1.49

$

Usually ships in 3-6 days

0

3

Toro 32144-86

SCREW-HWHTF

$1.49

$

In Stock, Qty 20+

0

4

Toro 136-7134

FLANGE-BEARING

$3.99

$

In Stock, Qty 13

0

5

Toro 110-9380

SCREW-HWH

$2.99

$

In Stock, Qty 6

0

6

Toro 136-7198

BOLT-SHOULDER

$1.99

$

In Stock, Qty 20+

0

7

Toro 137-3087

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

8

Toro 133-5585

BLADE-SCRAPER
(Superseded to 161-0963)

$34.99

$

Usually ships in 3-6 days

0

9

Toro 114-3781

SPACER-BEARING, RH

$8.49

$

In Stock, Qty 7

0

10

Toro 110-9353

WASHER-RUBBER

$1.49

$

In Stock, only 3 left!

0

11

Toro 100-1048

See Supercession: 38-7820
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 20+

0

12

Toro 52-7280

WASHER-THRUST

$5.49

$

In Stock, Qty 20+

0

13

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

14

Toro 108-4868-03

HOUSING-AUGER

$195.99

$

Usually ships in 3-6 days

0

15

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

16

Toro 130-9765

BRACE-FRAME

$39.99

$

Usually ships in 3-6 days

0

17

Toro 108-4919

GUIDE-CABLE, CLUTCH
(Superseded to 140-3660)

$10.99

$

In Stock, Qty 20+

0

18

Toro 108-4906

SPRING-EXTENSION
(Superseded to 147-9464)

$2.49

$

Usually ships in 3-6 days

0

19

Toro 137-3099

SCREW-PLASTITE, HWH

$1.49

$

Usually ships in 3-6 days

0

20

Toro 108-4871

CHUTE-LOWER

$76.99

$

Usually ships in 3-6 days

0

21

Toro 117-2309

WHEEL ASM

$26.99

$

In Stock, Qty 8

0

22

Toro 32112-14

NUT-PUSH

$2.99

$

In Stock, Qty 20+

0

23

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

24

Toro 108-4893-03

COVER-BELT

$22.99

$

In Stock, Qty 5

0

28

Toro 136-7148

SPACER-GROMMET

$1.49

$

In Stock, Qty 20+

0

29

Toro 136-7174

SCREW-THD ROLL, HWH

$1.49

$

Usually ships in 3-6 days

0
