38559 (1028) - Toro 28" Power Shift Snow Thrower (SN: 220000001 - 220999999) (2002) POWER SHIFT CONTROL ASSEMBLY Parts Diagram

28" Power Shift Snow Thrower

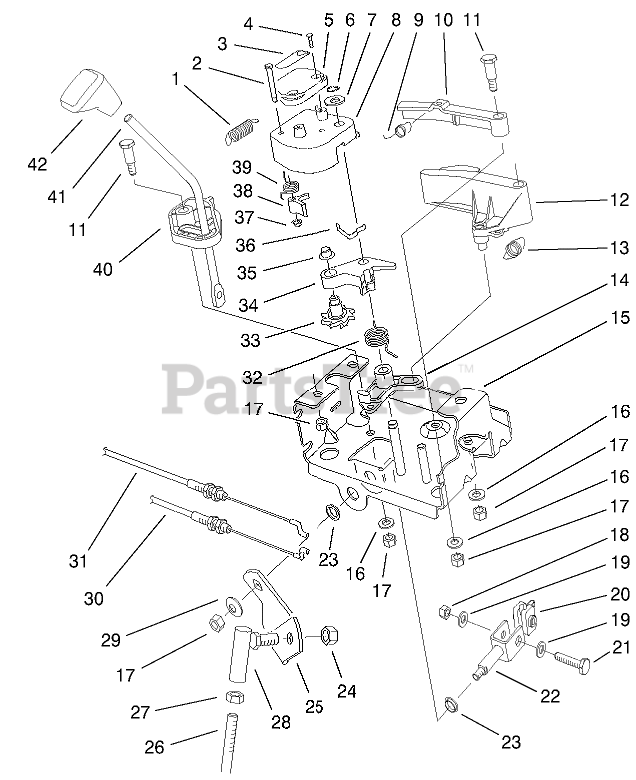

POWER SHIFT CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 63-2220

Spring-Extension (only on: 38560)

$11.99

$

In Stock, only 2 left!

0

2

Toro 63-2610

Pin-Tang (only on: 38560)

$

$

Not available

3

Toro 63-2480

Decal-Number 2 (only on: 38560)

$

$

Not available

4

Toro 94-6961

Screw (only on: 38560)

$1.49

$

In Stock, only 3 left!

0

5

Toro 62-1140

Cover-Latch (only on: 38560)

$

$

Not available

6

Toro 32120-46

Ring-Retaining (only on: 38560)

$2.49

$

Usually ships in 3-6 days

0

7

Toro 257-9

Washer-Thrust (only on: 38560)

$4.49

$

Usually ships in 3-6 days

0

8

Toro 62-1100

Lever Latch (only on: 38560)

$

$

Not available

9

Toro 63-2240

Spring-Extension (only on: 38560)

$6.99

$

In Stock, only 1 left!

0

10

Toro 62-1700

Lever-Lockout (only on: 38560)

$27.99

$

Usually ships in 3-6 days

0

11

Toro 63-2650

Screw-Shoulder (only on: 38560)

$7.99

$

In Stock, only 1 left!

0

12

Toro 62-1130

Lever-Reverse (only on: 38560)

$46.99

$

In Stock, only 2 left!

0

13

Toro 63-2230

Spring-Extension (only on: 38560)

$8.99

$

Usually ships in 3-6 days

0

14

Toro 62-1120

Lever-Reverse, Switch (only on: 38560)

$38.99

$

Usually ships in 3-6 days

0

15

Toro 63-2150-03

Control Frame ASM (only on: 38560)

$144.99

$

Usually ships in 3-6 days

0

16

Toro 3256-23

Washer-Flat (only on: 38560)

$2.49

$

In Stock, Qty 20+

0

17

Toro 3296-29

Nut-Lock (only on: 38560)

$2.49

$

In Stock, Qty 20+

0

18

Toro 3296-42

Nut-Lock (only on: 38560)

$0.99

$

In Stock, Qty 10

0

19

Toro 3256-1

Washer-Flat (only on: 38560)

$0.99

$

In Stock, Qty 20+

0

20

Toro 67-9250

Retainer-Rod, Shift (only on: 38560)

$7.99

$

Usually ships in 3-6 days

0

21

Toro 321-9

Screw-HH (only on: 38560)

$4.99

$

Usually ships in 3-6 days

0

22

Toro 66-7730

Clevis ASM (only on: 38560)

$

$

Not available

23

Toro 256-296

Bushing (only on: 38560)

$12.99

$

In Stock, only 3 left!

0

24

Toro 3296-6

Nut-Lock, NI (only on: 38560)

$1.99

$

In Stock, Qty 20+

0

25

Toro 63-2630

Bracket-Shift (only on: 38560)

$

$

Not available

26

Toro 63-2830

Rod-,Bent Shift, Lower (only on: 38560)

$23.99

$

Usually ships in 3-6 days

0

27

Toro 3220-3

Nut-Jam (only on: 38560)

$0.99

$

In Stock, Qty 17

0

28

Toro 78-2920

Ball-Joint (only on: 38560)
(Superseded to 94-7572)

$34.99

$

In Stock, only 2 left!

0

29

Toro 3290-456

Washer-Belleville (only on: 38560)

$2.99

$

In Stock, Qty 19

0

30

Toro 63-2210

Cable-Gearbox (only on: 38560)

$68.99

$

Usually ships in 3-6 days

0

31

Toro 63-2200

Cable-Arm, Latch (only on: 38560)

$68.99

$

Usually ships in 3-6 days

0

32

Toro 63-2270

Spring-Torsion (only on: 38560)

$18.99

$

Usually ships in 3-6 days

0

33

Toro 62-0170

Wheel-Index (only on: 38560)

$12.99

$

In Stock, only 1 left!

0

34

Toro 62-1110

Lever-Wheel, Index (only on: 38560)

$12.99

$

Usually ships in 3-6 days

0

35

Toro 3290-320

Retainer-Push On (only on: 38560)

$1.99

$

In Stock, Qty 20+

0

36

Toro 62-1710

Spring-Flat (only on: 38560)

$

$

Not available

37

Toro 3290-422

Nut-Push (only on: 38560)

$2.99

$

In Stock, Qty 20+

0

38

Toro 62-0180

Tang-Index (only on: 38560)

$5.99

$

Usually ships in 3-6 days

0

39

Toro 62-1650

Spring-Torsion (only on: 38560)

$8.99

$

Usually ships in 3-6 days

0

40

Toro 62-1470

Base-Lockout (only on: 38560)

$

$

Not available

41

Toro 67-9240

Rod-Shift (only on: 38560)

$

$

Not available

42

Toro 62-1290

Knob-Shift (only on: 38560)

$33.99

$

Usually ships in 3-6 days

0
