38559 (1028) - Toro 28" Power Shift Snow Thrower (SN: 099000001 - 099999999) (1999) TECUMSEH ENGINE MODEL OHSK110-221605A Parts Diagram

28" Power Shift Snow Thrower

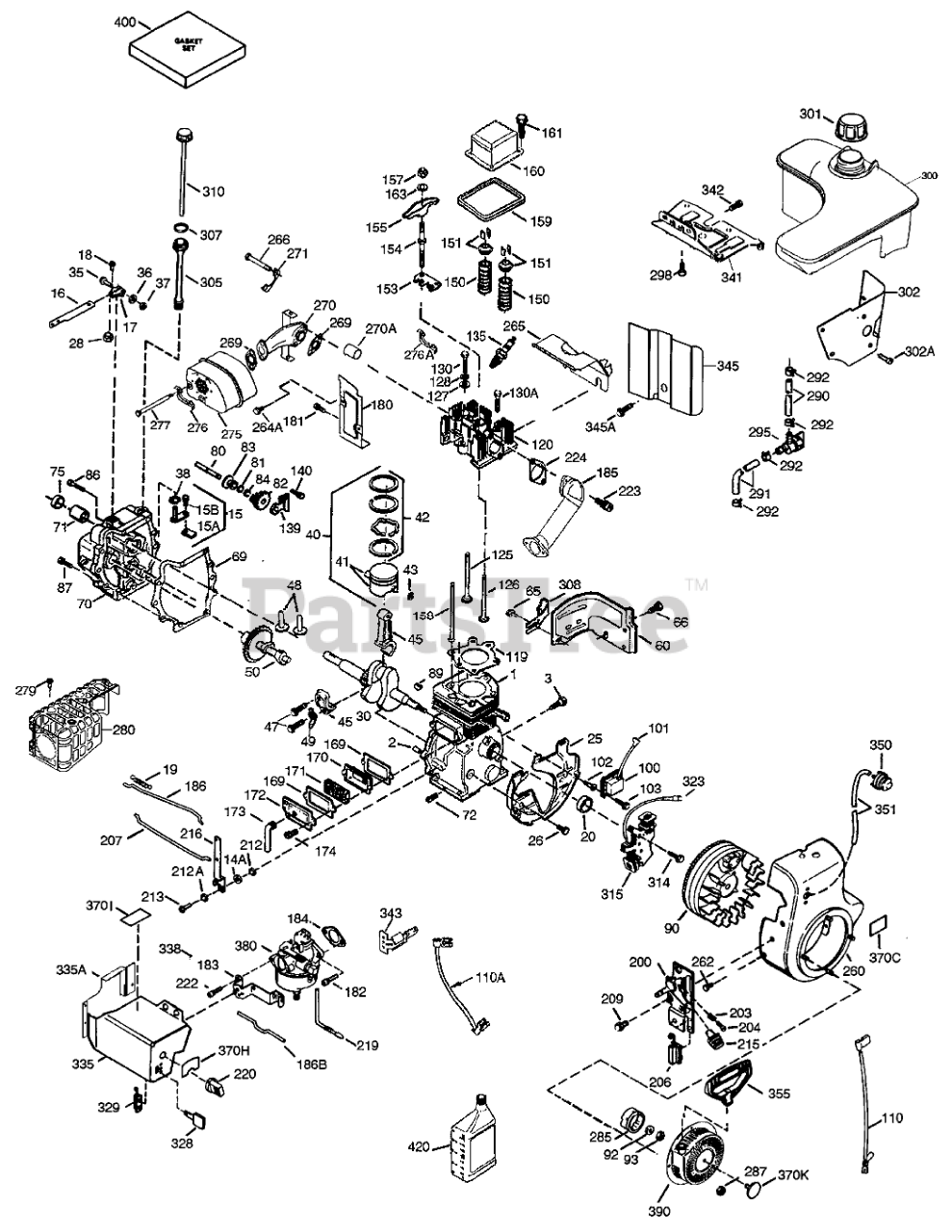

TECUMSEH ENGINE MODEL OHSK110-221605A Parts Diagram

  • Title

1

Tecumseh 35371

Cylinder (Incl. ref.#2 & 20)

Note: Obtain Parts From Your Local Tecumseh Dealer

$311.99

$

Usually ships in 3-12 days

0

2

Tecumseh 27652

Pin-Dowel

Note: Obtain Parts From Your Local Tecumseh Dealer

$2.49

$

Usually ships in 3-12 days

0

3

Tecumseh 650820

Screw (1/4-20x1/2)

Note: Obtain Parts From Your Local Tecumseh Dealer

$3.99

$

In Stock, Qty 15

0

5

Tecumseh 30969

Cap-Pipe

Note: Obtain Parts From Your Local Tecumseh Dealer

$5.49

$

In Stock, only 1 left!

0

14A

Tecumseh 28558

Washer

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

Usually ships in 3-12 days

0

15

Tecumseh 30699C

Rod Assembly-Governor (Incl. ref.#15A & 15B)

Note: Obtain Parts From Your Local Tecumseh Dealer

$17.99

$

In Stock, only 1 left!

0

15A

Tecumseh 30700

Yoke-Governor

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 1 left!

0

15B

Tecumseh 650494

Screw (6-40x5/16)

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

Usually ships in 3-12 days

0

16

Tecumseh 37255

Governor Lever
(Superseded to 37255A)

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Not available

17

Tecumseh 29916

Clamp-Lever, Governor

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 2 left!

0

18

Tecumseh 651028

Screw (T-15, 8-32x7/16)

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 4 left!

0

19

Tecumseh 36281

Spring-Extension

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.49

$

In Stock, only 3 left!

0

20

Tecumseh 35319

Seal-Oil

Note: Obtain Parts From Your Local Tecumseh Dealer

$4.99

$

In Stock, only 4 left!

0

25

Tecumseh 36460

Baffle-Housing, Blower
(Superseded to 37853)

Note: Obtain Parts From Your Local Tecumseh Dealer

$11.99

$

In Stock, only 1 left!

0

26

Tecumseh 650561

Screw (1/4-20x19/32)

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 2 left!

0

28

Tecumseh 30322

Nut-Lock

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

Usually ships in 3-12 days

0

30

Tecumseh 37272

Crankshaft

Note: Obtain Parts From Your Local Tecumseh Dealer

$128.99

$

Usually ships in 3-12 days

0

35

Tecumseh 29826

Screw

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 4 left!

0

36

Tecumseh 29918

Washer-Lock

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, Qty 5

0

37

Tecumseh 29216

Nut-Lock

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 3 left!

0

38

Tecumseh 29642

Ring-Retaining

Note: Obtain Parts From Your Local Tecumseh Dealer

$100.99

$

In Stock, only 2 left!

0

40

Tecumseh 40011

Piston-Pin and Ring Set (STD)
(Superseded to 40049)

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Not available

Tecumseh 40012

Piston- Pin and Ring Set (.010 O S)

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Not available

41

Tecumseh 40009

Piston & Pin Assembly Standard (Includes ref.#43)
(Superseded to 40049)

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Not available

Tecumseh 40010

Piston & Pin Assembly .010 oversize (Incl. ref.#43)
(Superseded to 40012)

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Not available

42

Tecumseh 40013

Ring Set (STD)

Note: Obtain Parts From Your Local Tecumseh Dealer

$28.99

$

In Stock, only 1 left!

0

Tecumseh 40014

Ring Set (.010 O S)

Note: Obtain Parts From Your Local Tecumseh Dealer

$43.99

$

Usually ships in 3-12 days

0

43

Tecumseh 27888

Ring-Retaining, Piston Pin

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

Usually ships in 3-12 days

0

45

Tecumseh 36897

Rod Assembly-Connecting (Incl. ref.#47 & 49)
(Superseded to 36897A)

Note: Obtain Parts From Your Local Tecumseh Dealer

$48.99

$

In Stock, only 1 left!

0

47

Tecumseh 651033

Bolt-Rod, Connecting
(Superseded to 651033A)

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Not available

48

Tecumseh 35313

Lifter-Valve
(Superseded to 35313A)

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Not available

49

Tecumseh 36896

Dipper-Oil

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

Usually ships in 3-12 days

0

50

Tecumseh 35682A

Camshaft

Note: Obtain Parts From Your Local Tecumseh Dealer

$105.99

$

Usually ships in 3-12 days

0

60

Tecumseh 35316A

Extension-Housing, Blower

Note: Obtain Parts From Your Local Tecumseh Dealer

$3.99

$

Usually ships in 3-12 days

0

65

Tecumseh 30200

Screw (10-24 x 9/16)

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.49

$

In Stock, Qty 10

0

66

Tecumseh 30063

Screw

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, Qty 20+

0

69

Tecumseh 35262A

Gasket-Cover, Cylinder
(Superseded to 37342)

Note: Obtain Parts From Your Local Tecumseh Dealer

$11.99

$

In Stock, only 3 left!

0

69

Tecumseh 35262A

Gasket-Cover, Cylinder
(Superseded to 37342)

Note: Included in Gasket Set 36452 (Ref. Num 400).

$11.99

$

In Stock, only 3 left!

0

70

Tecumseh 37273

Cover Assembly, Cylinder (Incl. ref.#71, 75 & 80)
(Superseded to 38027)

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Not available

71

Tecumseh 35377

Bushing-Crankshaft

Note: Obtain Parts From Your Local Tecumseh Dealer

$11.99

$

In Stock, only 3 left!

0

72

Tecumseh 27642

Plug-Drain, Oil (SQH 1/4-18)

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 2 left!

0

75

Tecumseh 35319

Seal-Oil

Note: Obtain Parts From Your Local Tecumseh Dealer

$4.99

$

In Stock, only 4 left!

0

80

Tecumseh 31845

Shaft-Governor
(Superseded to 37587)

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Not available

81

Tecumseh 30590A

Washer-Flat

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, Qty 7

0

82

Tecumseh 35378

Gear-Governor (Incl. ref.#81)

Note: Obtain Parts From Your Local Tecumseh Dealer

$3.99

$

Usually ships in 3-12 days

0

83

Tecumseh 30588A

Spool-Governor

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 4 left!

0

84

Tecumseh 29193

Ring-Retaining

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 4 left!

0

86

Tecumseh 650833

Screw (1/4-20x1-3/16)

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

Usually ships in 3-12 days

0

87

Tecumseh 650832

Screw (1/4-20x1-11/16)

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Not available

89

Tecumseh 32589

Key-Flywheel

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.49

$

In Stock, Qty 6

0

90

Tecumseh 611093

Flywheel ASM

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Not available

92

Tecumseh 650880

Washer-Belleville

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 3 left!

0

93

Tecumseh 650881

Nut-Flywheel

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

Usually ships in 3-12 days

0

100

Tecumseh 35135

Solid State ASM
(Superseded to 35135B)

Note: Obtain Parts From Your Local Tecumseh Dealer

$62.99

$

In Stock, only 1 left!

0

101

Tecumseh 610118

Cover-Spark Plug

Note: Obtain Parts From Your Local Tecumseh Dealer

$6.49

$

In Stock, only 3 left!

0

102

Tecumseh 651024

Stud-Mounting, Solid State

Note: Obtain Parts From Your Local Tecumseh Dealer

$3.99

$

In Stock, only 2 left!

0

103

Tecumseh 651007

Screw (T-15, 10-24 x 15/16)

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 4 left!

0

110

Tecumseh 35187

Wire-Ground

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Not available

110A

Tecumseh 37047

Wire-Ground

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, Qty 5

0

119

Tecumseh 37256

Gasket-Head, Cylinder

Note: Obtain Parts From Your Local Tecumseh Dealer

$9.49

$

In Stock, only 1 left!

0

119

Tecumseh 37256

Gasket-Head, Cylinder

Note: Included in Gasket Set 36452 (Ref. Num 400).

$9.49

$

In Stock, only 1 left!

0

120

Tecumseh 27258

Head-Cylinder
(Superseded to 29530)

Note: Obtain Parts From Your Local Tecumseh Dealer

$3.99

$

In Stock, only 1 left!

0

125

Tecumseh 36934

Valve-Exhaust (STD)

Note: Obtain Parts From Your Local Tecumseh Dealer

$39.99

$

In Stock, only 1 left!

0

Tecumseh 36936

Valve-Exhaust (1/32)

Note: Obtain Parts From Your Local Tecumseh Dealer

$42.99

$

Usually ships in 3-12 days

0

126

Tecumseh 36935

Valve-Intake (STD)

Note: Obtain Parts From Your Local Tecumseh Dealer

$22.99

$

Usually ships in 3-12 days

0

Tecumseh 36937

Intake Valve (1/32)

Note: Obtain Parts From Your Local Tecumseh Dealer

$21.99

$

Usually ships in 3-12 days

0

127

Tecumseh 650691

Washer-Flat

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

Usually ships in 3-12 days

0

128

Tecumseh 650690

Washer-Belleville
(Superseded to 730324)

Note: Obtain Parts From Your Local Tecumseh Dealer

$9.99

$

In Stock, only 1 left!

0

130

Tecumseh 650697A

Screw (5/16-18 X 2-1/2)

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, Qty 11

0

130A

Tecumseh 650990

Screw (T-30, 1/4-20x15/32)

Note: Obtain Parts From Your Local Tecumseh Dealer

$3.99

$

In Stock, only 4 left!

0

135

Tecumseh 34645

Spark Plug-Resistor (R N 4C)

Note: Obtain Parts From Your Local Tecumseh Dealer

$4.49

$

In Stock, Qty 19

0

139

Tecumseh 33369

Bracket-Gear, Governor

Note: Obtain Parts From Your Local Tecumseh Dealer

$8.49

$

In Stock, only 1 left!

0

140

Tecumseh 650836

Screw (10-24x1/2)
(Superseded to 650965)

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Not available

150

Tecumseh 33507

Spring-Valve

Note: Obtain Parts From Your Local Tecumseh Dealer

$3.99

$

In Stock, only 1 left!

0

151

Tecumseh 33508

Keeper-Spring, Valve

Note: Obtain Parts From Your Local Tecumseh Dealer

$9.49

$

In Stock, only 2 left!

0

153

Tecumseh 35949

Guide-Rod, Push

Note: Obtain Parts From Your Local Tecumseh Dealer

$3.99

$

In Stock, only 1 left!

0

154

Tecumseh 650945

Stud-Arm, Rocker

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 2 left!

0

155

Tecumseh 35950

Arm-Rocker

Note: Obtain Parts From Your Local Tecumseh Dealer

$7.49

$

Usually ships in 3-12 days

0

157

Tecumseh 650947

Nut-Jam

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 1 left!

0

158

Tecumseh 35466

Rod-Push

Note: Obtain Parts From Your Local Tecumseh Dealer

$14.99

$

In Stock, only 2 left!

0

159

Tecumseh 35952

Gasket-Cover, Rocker Arm

Note: Obtain Parts From Your Local Tecumseh Dealer

$6.49

$

Usually ships in 3-12 days

0

159

Tecumseh 35952

Gasket-Cover, Rocker Arm

Note: Included in Gasket Set 36452 (Ref. Num 400).

$6.49

$

Usually ships in 3-12 days

0

160

Tecumseh 35953A

Cover-Arm, Rocker

Note: Obtain Parts From Your Local Tecumseh Dealer

$9.49

$

In Stock, only 1 left!

0

161

Tecumseh 30063

Screw

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, Qty 20+

0

163

Tecumseh 650890

Washer

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 2 left!

0

169

Tecumseh 27896A

Gasket-Cover, Valve

Note: Included in Gasket Set 36452 (Ref. Num 400).

$1.49

$

In Stock, Qty 10

0

169

Tecumseh 27896A

Gasket-Cover, Valve

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.49

$

In Stock, Qty 10

0

170

Tecumseh 28423

Body-Breather

Note: Obtain Parts From Your Local Tecumseh Dealer

$13.99

$

In Stock, only 1 left!

0

171

Tecumseh 28424

Element-Breather

Note: Obtain Parts From Your Local Tecumseh Dealer

$3.99

$

In Stock, only 3 left!

0

172

Tecumseh 28425

Cover-Valve

Note: Obtain Parts From Your Local Tecumseh Dealer

$7.49

$

In Stock, only 1 left!

0

173

Tecumseh 35350

Tube-Breather

Note: Obtain Parts From Your Local Tecumseh Dealer

$6.49

$

Usually ships in 3-12 days

0

174

Tecumseh 650128

Screw

Note: Obtain Parts From Your Local Tecumseh Dealer

$5.49

$

In Stock, only 2 left!

0

180

Tecumseh 35954

Extension-Housing, Blower

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Not available

181

Tecumseh 30200

Screw (10-24 x 9/16)

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.49

$

In Stock, Qty 10

0

182

Tecumseh 650517

Screw (T-30, 1/4-20 X 27-32)

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 1 left!

0

183

Tecumseh 34583A

Bracket-Choke

Note: Obtain Parts From Your Local Tecumseh Dealer

$12.99

$

In Stock, Qty 6

0

184

Tecumseh 33263

Gasket-Carburetor To Intake Pipe

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.49

$

In Stock, Qty 20+

0

184

Tecumseh 33263

Gasket-Carburetor To Intake Pipe

Note: Included in Gasket Set 36452 (Ref. Num 400).

$1.49

$

In Stock, Qty 20+

0

185

Tecumseh 37085

Pipe-Intake

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Not available

186

Tecumseh 37261

Link-Governor
(Superseded to 37860)

Note: Obtain Parts From Your Local Tecumseh Dealer

$12.99

$

Usually ships in 3-12 days

0

186B

Tecumseh 36653

Spring-Choke

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 2 left!

0

200

Tecumseh 35702

Bracket Assy.-Control (Incl. Ref.# 203, 204 & 206)

Note: Obtain Parts From Your Local Tecumseh Dealer

$38.99

$

In Stock, only 1 left!

0

203

Tecumseh 31342

Spring-Compression

Note: Obtain Parts From Your Local Tecumseh Dealer

$5.99

$

In Stock, only 1 left!

0

204

Tecumseh 651029

Screw (T-10, 5-40x7/16)

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 2 left!

0

206

Tecumseh 610973

Terminal

Note: Obtain Parts From Your Local Tecumseh Dealer

$3.99

$

In Stock, Qty 5

0

207

Tecumseh 37262

Link-Throttle

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 2 left!

0

209

Tecumseh 650821

Screw (10-32 x 1/2)

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 3 left!

0

212

Tecumseh 30773A

Bushing

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Not available

212A

Tecumseh 36288

Bushing

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 2 left!

0

213

Tecumseh 651056

Screw (10-24 X 29/32)

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

Usually ships in 3-12 days

0

215

Tecumseh 35440

Knob-Control

Note: Obtain Parts From Your Local Tecumseh Dealer

$3.99

$

In Stock, only 1 left!

0

216

Tecumseh 37260

Lever-Bellcrank

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Not available

219

Tecumseh 35689

Rod-Choke

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Not available

220

Tecumseh 35438

Knob-Control

Note: Obtain Parts From Your Local Tecumseh Dealer

$3.99

$

In Stock, only 2 left!

0

222

Tecumseh 28820

Screw (10-32 x 1/2)
(Superseded to 651081)

Note: Obtain Parts From Your Local Tecumseh Dealer

$4.49

$

In Stock, only 3 left!

0

223

Tecumseh 650971

Screw (T-30, 5/16-18 X 7/8)

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 4 left!

0

224

Tecumseh 33515A

Gasket-Pipe

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 3 left!

0

224

Tecumseh 33515A

Gasket-Pipe

Note: Included in Gasket Set 37257 (Ref. Num 400).

$1.99

$

In Stock, only 3 left!

0

260

Tecumseh 37092A

Housing-Blower

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Not available

262

Tecumseh 29747B

Screw

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, Qty 9

0

264A

Tecumseh 650738

Screw (1/4-20 X 5/8)

Note: Obtain Parts From Your Local Tecumseh Dealer

$3.99

$

In Stock, only 1 left!

0

265

Tecumseh 37086

Cover-Head, Cylinder

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Not available

266

Tecumseh 650876

Screw (5/16-18 X 1-9/32)

Note: Obtain Parts From Your Local Tecumseh Dealer

$3.49

$

In Stock, only 3 left!

0

269

Tecumseh 35762

Gasket-Manifold, Exhaust

Note: Included in Gasket Set 37257 (Ref. Num 400).

$1.99

$

In Stock, Qty 8

0

269

Tecumseh 35762

Gasket-Manifold, Exhaust

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, Qty 8

0

270

Tecumseh 37263

Manifold, Exhaust

Note: Obtain Parts From Your Local Tecumseh Dealer

$48.99

$

Usually ships in 3-12 days

0

270A

Tecumseh 35829A

Liner-Port, Exhaust

Note: Obtain Parts From Your Local Tecumseh Dealer

$5.49

$

In Stock, only 2 left!

0

271

Toro 3593

Locking Plate

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Currently unavailable

275

Tecumseh 37264

Muffler

Note: Obtain Parts From Your Local Tecumseh Dealer

$93.99

$

In Stock, only 2 left!

0

276

Tecumseh 35348

Plate-Locking

Note: Obtain Parts From Your Local Tecumseh Dealer

$4.99

$

Usually ships in 3-12 days

0

276A

Tecumseh 31588

Plate-Locking

Note: Obtain Parts From Your Local Tecumseh Dealer

$4.99

$

In Stock, Qty 20+

0

277

Tecumseh 650877

Screw (5/16-18 X 4-1/2)

Note: Obtain Parts From Your Local Tecumseh Dealer

$7.49

$

In Stock, Qty 5

0

279

Tecumseh 651011

Screw

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Not available

280

Tecumseh 37265

Shield-Heat

Note: Obtain Parts From Your Local Tecumseh Dealer

$47.99

$

In Stock, only 1 left!

0

281

Tecumseh 33013

Screw

Note: Obtain Parts From Your Local Tecumseh Dealer

$3.99

$

Usually ships in 3-12 days

0

282

Tecumseh 650760

Screw (8-32 x 3/8)

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 3 left!

0

285

Tecumseh 35985B

Cup-Starter
(Superseded to 35985C)

Note: Obtain Parts From Your Local Tecumseh Dealer

$13.99

$

In Stock, only 1 left!

0

287

Tecumseh 29752

Nut and Lock Washer (1/4-28)

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 1 left!

0

290

Tecumseh 30962

Line-Fuel

Note: Obtain Parts From Your Local Tecumseh Dealer

$30.99

$

In Stock, Qty 6

0

291

Tecumseh 29774

Line-Fuel (8.62)

Note: Obtain Parts From Your Local Tecumseh Dealer

$34.99

$

In Stock, Qty 6

0

292

Tecumseh 26460

Clamp-Line, Fuel

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.49

$

In Stock, Qty 20+

0

295

Tecumseh 35857

Valve-Shut Off, Fuel

Note: Obtain Parts From Your Local Tecumseh Dealer

$13.99

$

Usually ships in 3-12 days

0

298

Tecumseh 650665

Screw (1/4-15x7/8)

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 3 left!

0

300

Tecumseh 37099

Tank Assembly, Fuel (Incl. Ref.# 292 & 301)
(Superseded to 37099A)

Note: Obtain Parts From Your Local Tecumseh Dealer

$76.99

$

In Stock, Qty 5

0

301

Tecumseh 36246

Cap-Fuel
(Superseded to 37844)

Note: Obtain Parts From Your Local Tecumseh Dealer

$5.99

$

In Stock, Qty 6

0

302

Tecumseh 37098

Extension-Tank, Fuel

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Not available

302A

Tecumseh 650821

Screw (10-32 x 1/2)

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 3 left!

0

305

Tecumseh 35574

Tube-Fill, Oil

Note: Obtain Parts From Your Local Tecumseh Dealer

$5.49

$

In Stock, only 1 left!

0

307

Tecumseh 35499

O-Ring

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.49

$

In Stock, only 3 left!

0

308

Tecumseh 35539

Clip-Tube, Fill

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

Usually ships in 3-12 days

0

310

Tecumseh 35700

Dipstick

Note: Obtain Parts From Your Local Tecumseh Dealer

$7.49

$

Usually ships in 3-12 days

0

314

Tecumseh 650873

Screw (1/4-20 x 3/4)

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

Usually ships in 3-12 days

0

315

Toro 61111

Alternator Coil (18 watt)(Incl. #323)

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Currently unavailable

323

Tecumseh 611118

Terminal

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

Usually ships in 3-12 days

0

328

Tecumseh 35062

Key-Ignition

Note: Obtain Parts From Your Local Tecumseh Dealer

$3.99

$

Usually ships in 3-12 days

0

329

Tecumseh 610973

Terminal

Note: Obtain Parts From Your Local Tecumseh Dealer

$3.99

$

In Stock, Qty 5

0

335

Tecumseh 37096

Spring
(Superseded to 37096A)

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Not available

335A

Tecumseh 37087

Cover-Carburetor

Note: Obtain Parts From Your Local Tecumseh Dealer

$15.99

$

Usually ships in 3-12 days

0

338

Tecumseh 650821

Screw (10-32 x 1/2)

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 3 left!

0

341

Tecumseh 37093

Bracket-Tank, Fuel

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Not available

342

Toro 792028

Screw (5/16-18 X 7/8)

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Currently unavailable

343

Tecumseh 35079

Bracket-Switch, Key
(Superseded to 35079A)

Note: Obtain Parts From Your Local Tecumseh Dealer

$16.99

$

Usually ships in 3-12 days

0

345

Tecumseh 37097

Baffle-Heat

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Not available

345A

Tecumseh 650821

Screw (10-32 x 1/2)

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 3 left!

0

350

Tecumseh 570682A

Primer ASM

Note: Obtain Parts From Your Local Tecumseh Dealer

$10.99

$

In Stock, Qty 6

0

351

Tecumseh 32180C

Line-Primer

Note: Obtain Parts From Your Local Tecumseh Dealer

$6.99

$

In Stock, only 4 left!

0

355

Tecumseh 590574

Handle-Starter, Mitten Grip

Note: Obtain Parts From Your Local Tecumseh Dealer

$5.49

$

In Stock, only 1 left!

0

370C

Tecumseh 36501

Decal-Primer, International Symbol

Note: Obtain Parts From Your Local Tecumseh Dealer

$2.49

$

In Stock, only 2 left!

0

370H

Tecumseh 37226

Decal-Choke

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Not available

370I

Tecumseh 37119

Decal-Warning (Bilingual)

Note: Obtain Parts From Your Local Tecumseh Dealer

$2.49

$

Usually ships in 3-12 days

0

370K

Tecumseh 36695

Decal-Tecumseh Logo for Top of Recoil Starter

Note: Obtain Parts From Your Local Tecumseh Dealer

$2.49

$

In Stock, only 4 left!

0

380

Tecumseh 640169

Carburetor (Incl. Ref.# 184)

Note: Obtain Parts From Your Local Tecumseh Dealer

$104.99

$

Usually ships in 3-12 days

0

390

Tecumseh 590749

Starter-Rewind
(Superseded to 590789)

Note: Obtain Parts From Your Local Tecumseh Dealer

$87.99

$

In Stock, only 1 left!

0

400

Tecumseh 37257

Gasket Set (Incl. items marked )
(Superseded to 37257A)

Note: Obtain Parts From Your Local Tecumseh Dealer

$27.99

$

Usually ships in 3-12 days

0

400

Tecumseh 37257

Gasket Set (Incl. items marked )
(Superseded to 37257A)

Note: Included in Gasket Set 37257 (Ref. Num 400).

$27.99

$

Usually ships in 3-12 days

0

420

Tecumseh 730226

Oil-Engine (SAE 5W30)
(Superseded to 730226B)

Note: Obtain Parts From Your Local Tecumseh Dealer

$13.99

$

In Stock, Qty 10

0
