38556 (1028) - Toro 28" Power Shift Snow Thrower (SN: 079000001 - 079999999) (1997) CARBURETOR NO. 632370A Parts Diagram

28" Power Shift Snow Thrower

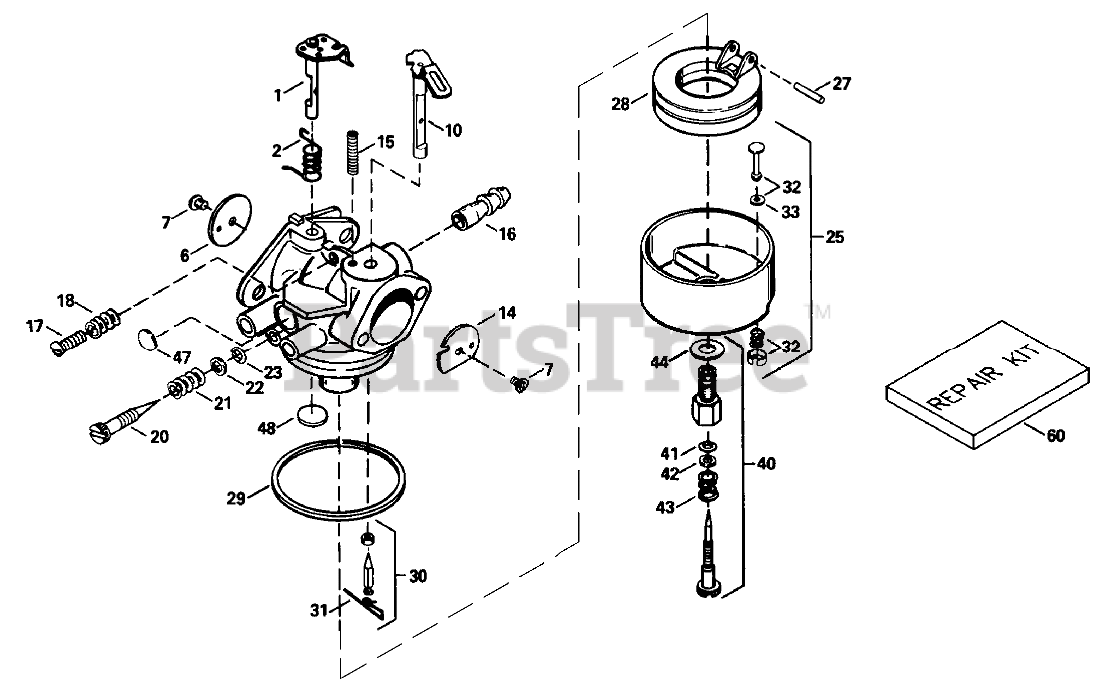

CARBURETOR NO. 632370A Parts Diagram

  • Title
1

Tecumseh 631776A

Throttle Shaft and Lever ASM

$16.99

$

Usually ships in 3-12 days

0

2

Tecumseh 631970

Spring-Return, Throttle

$4.49

$

Usually ships in 3-12 days

0

6

Tecumseh 631778

Shutter-Throttle

$1.99

$

In Stock, only 3 left!

0

7

Tecumseh 650506

Screw-Shutter

$1.49

$

In Stock, Qty 16

0

10

Tecumseh 632112

Choke Shaft and Lever ASM

$7.49

$

Usually ships in 3-12 days

0

14

Tecumseh 632174

Shutter-Choke

$4.49

$

Usually ships in 3-12 days

0

15

Tecumseh 630735

Spring-Positioning, Choke

$1.99

$

In Stock, only 4 left!

0

16

Tecumseh 632164

Fitting-Fuel

$3.99

$

In Stock, only 1 left!

0

17

Tecumseh 650417

Screw-Throttle Crack Screw / Idle Speed
(Superseded to 651025)

$1.99

$

In Stock, Qty 5

0

18

Tecumseh 630766

Spring-Tension

$1.99

$

In Stock, only 2 left!

0

20

Tecumseh 632281

Screw-Idle Mix

$3.99

$

In Stock, Qty 5

0

21

Tecumseh 630766

Spring-Tension

$1.99

$

In Stock, only 2 left!

0

22

$1.99

$

In Stock, Qty 6

0

23

Tecumseh 630740

"O"Ring

$2.49

$

In Stock, only 2 left!

0

25

Tecumseh 631951

Float Bowl (Incl. Ref.# 32 & 33)

$17.99

$

In Stock, only 1 left!

0

27

Tecumseh 631024

Shaft-Float

$1.99

$

In Stock, Qty 11

0

28

Tecumseh 632019

Float
(Superseded to 632019A)

$7.49

$

In Stock, Qty 10

0

29

Tecumseh 631028

O Ring-Bowl, Float
(Superseded to 631028A)

$2.49

$

In Stock, Qty 9

0

30

Tecumseh 631021

Inlet Needle, Seat & Spring Clip (Incl Ref.# 31)
(Superseded to 631021B)

$6.99

$

In Stock, Qty 20+

0

31

Tecumseh 631022

Clip-Spring

$1.99

$

In Stock, only 4 left!

0

32

Tecumseh 27136A

Bowl Drain Assy. (Incl Ref.# 33)

$7.49

$

In Stock, only 1 left!

0

33

Tecumseh 27554

Gasket-Plunger, Drain

$1.49

$

In Stock, Qty 16

0

40

Tecumseh 632239

Mian Adj. Screw Asm.

$14.99

$

In Stock, only 1 left!

0

41

Tecumseh 630740

"O"Ring

$2.49

$

In Stock, only 2 left!

0

42

$1.99

$

In Stock, Qty 6

0

43

$1.99

$

In Stock, Qty 8

0

44

Tecumseh 27110

Washer-Bowl Nut
(Superseded to 27110A)

$2.49

$

Usually ships in 3-12 days

0

47

Tecumseh 630748

Plug-Welch, Idle Mixture Well

$1.99

$

In Stock, only 3 left!

0

48

Tecumseh 631027

Plug-Welch, Atmospheric Vent

$1.99

$

In Stock, Qty 5

0

60

Tecumseh 632347

Repair Kit (Incl. Ref. # 23, 27, 29-30, 41, 44, & 47-48)

$20.99

$

In Stock, only 1 left!

0
