38556 (1028) - Toro 28" Power Shift Snow Thrower (SN: 069000001 - 069999999) (1996) TRACTION DRIVE ASSEMBLY Parts Diagram

28" Power Shift Snow Thrower

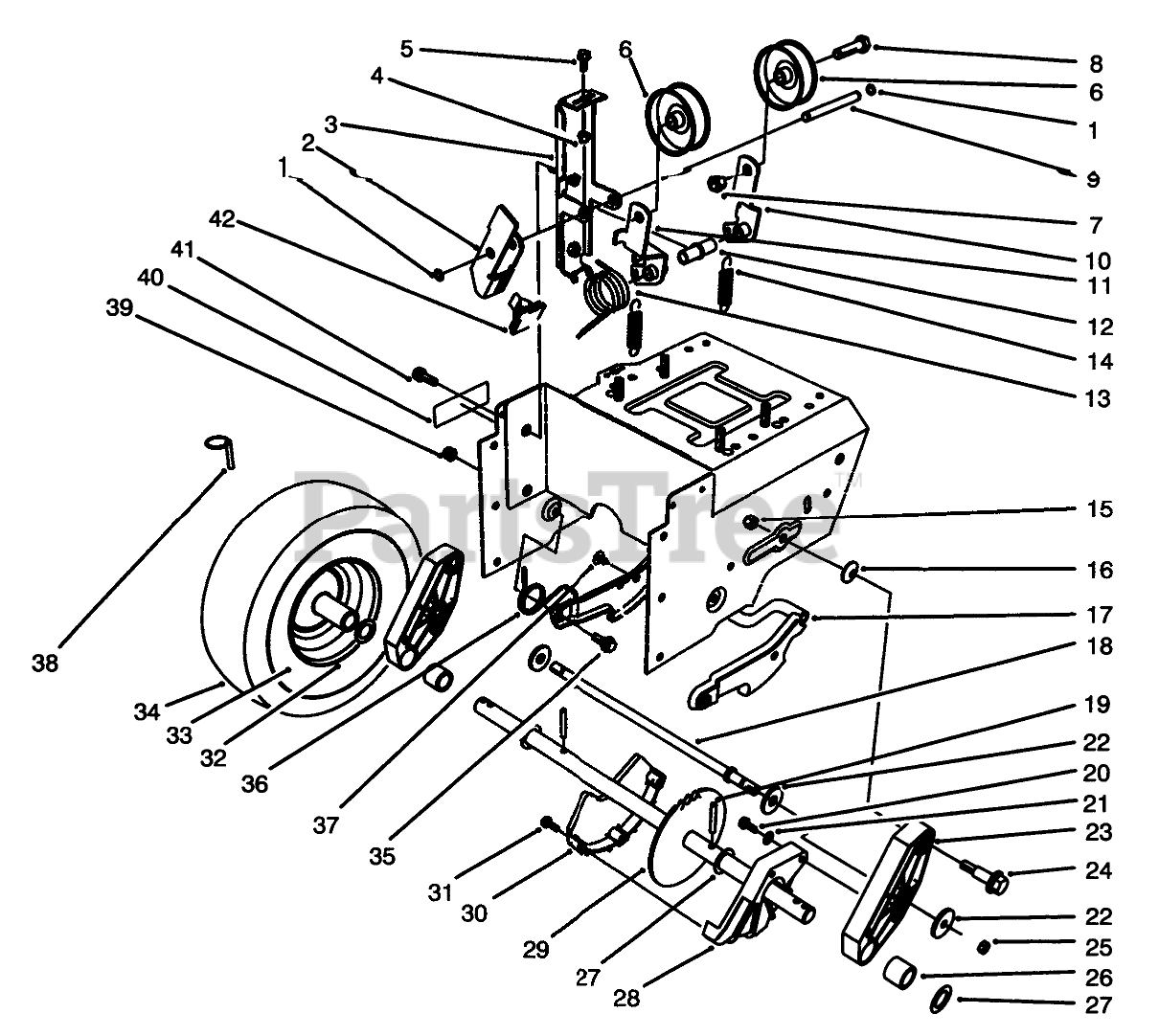

TRACTION DRIVE ASSEMBLY Parts Diagram

  • Title
1

Toro 32120-46

RING-RETAINING

$2.49

$

Usually ships in 3-6 days

0

2

Toro 63-2820

ARM-BRAKE

$47.99

$

Usually ships in 3-6 days

0

3

Toro 63-2850

IDLER ARM BRACKET ASM

$

$

Not available

4

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

5

Toro 3234-13

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

6

Toro 3-4244

PULLEY-IDLER

$27.99

$

In Stock, only 2 left!

0

7

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

8

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

9

Toro 62-0970

PIN-IDLER

$

$

Not available

10

Toro 93-8045

TRACTION IDLER ARM ASM

$157.99

$

In Stock, only 1 left!

0

11

Toro 93-8046

IMPELLER IDLER ARM ASM

$

$

Not available

12

Toro 3256-38

WASHER-FLAT

$0.99

$

In Stock, only 2 left!

0

13

Toro 63-2881

TORSION SPRING
(Superseded to 63-2882)

$

$

Not available

14

Toro 63-2870

SPRING-EXTENSION

$9.99

$

In Stock, only 2 left!

0

15

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

16

Toro 3290-461

WASHER-SPRING

$5.49

$

In Stock, only 2 left!

0

17

Toro 62-0470

Latch-Arm
(Superseded to 62-0470-03)

$165.99

$

Usually ships in 3-6 days

0

18

Toro 66-7720

ROD-LATCH

$72.99

$

Usually ships in 3-6 days

0

19

Toro 32121-9

PIN-ROLL, SLOTTED

$3.49

$

In Stock, Qty 8

0

20

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

21

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 63-3340

WASHER-SUPPORT

$4.49

$

Usually ships in 3-6 days

0

23

Toro 66-7740

Pivot Arm Assembly (Incl. Ref. # 26)

$93.99

$

Usually ships in 3-6 days

0

24

Toro 62-1330

BOLT-SHOULDER

$11.99

$

In Stock, only 1 left!

0

25

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

26

Toro 63-2250

BUSHING-AXLE

$14.99

$

Usually ships in 3-6 days

0

27

Toro 252-80

WASHER-THRUST

$9.99

$

In Stock, Qty 20+

0

28

Toro 62-1010

GUARD-CHAIN, LH

$

$

Not available

29

$

$

Not available

30

Toro 62-1000

GUARD-CHAIN, RH

$

$

Not available

31

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

32

Toro 241-127

RIM-WHEEL

$

$

Not available

33

Toro 232-48

INNER TUBE

$

$

Not available

34

$

$

Not available

35

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

36

Toro 63-2740

SPRING-LATCH, TORSION

$19.99

$

Usually ships in 3-6 days

0

37

Toro 3290-476

FASTENER-PANEL

$2.49

$

Usually ships in 3-6 days

0

38

Toro 3290-243

PIN-LYNCH
(Superseded to 107-3039)

$10.99

$

In Stock, only 1 left!

0

39

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

40

Toro 66-6860

DECAL-WARNING

$

$

Not available

41

Toro 3234-7

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

42

Toro 66-8060

PAD-BRAKE

$18.99

$

In Stock, Qty 20+

0
