38555 (1028) - Toro 28" Power Shift Snow Thrower (SN: 089000001 - 089999999) (1998) TECUMSEH ENGINE MODEL HMSK100-159227W Parts Diagram

28" Power Shift Snow Thrower

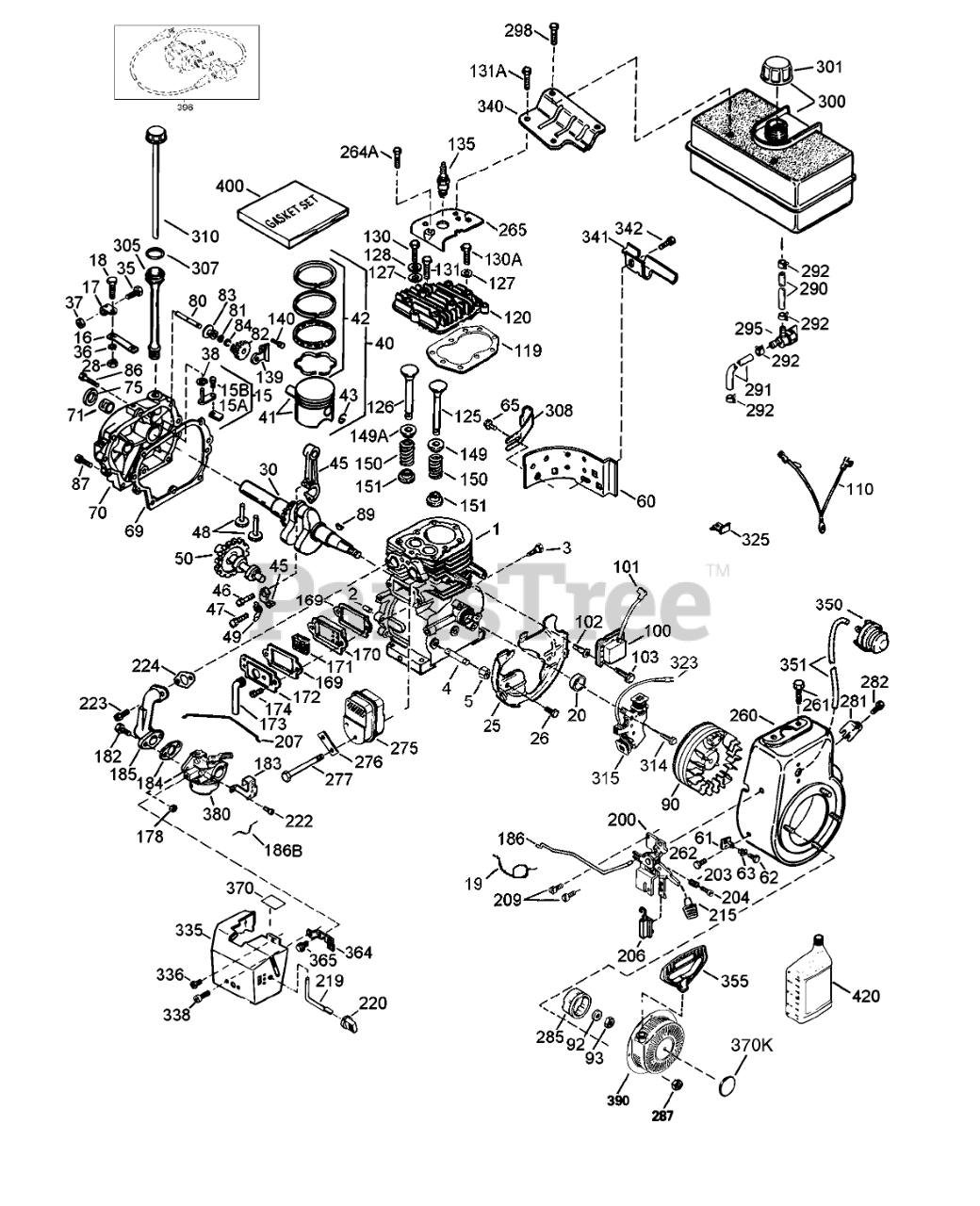

TECUMSEH ENGINE MODEL HMSK100-159227W Parts Diagram

  • Title

1

Tecumseh 35371

Cylinder (Incl. ref.#2 & 20)

Note: Obtain Parts From Your Local Tecumseh Dealer

$311.99

$

Usually ships in 3-12 days

0

2

Tecumseh 27652

Pin-Dowel

Note: Obtain Parts From Your Local Tecumseh Dealer

$2.49

$

Usually ships in 3-12 days

0

3

Tecumseh 650820

Screw (1/4-20x1/2)

Note: Obtain Parts From Your Local Tecumseh Dealer

$3.99

$

In Stock, Qty 15

0

5

Tecumseh 30969

Cap-Pipe

Note: Obtain Parts From Your Local Tecumseh Dealer

$5.49

$

Usually ships in 3-12 days

0

15

Tecumseh 30699C

Rod Assembly-Governor (Incl. ref.#15A & 15B)

Note: Obtain Parts From Your Local Tecumseh Dealer

$17.99

$

In Stock, only 1 left!

0

15A

Tecumseh 30700

Yoke-Governor

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 2 left!

0

15B

Tecumseh 650494

Screw (6-40x5/16)

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

Usually ships in 3-12 days

0

16

Tecumseh 33454

Lever-Governor
(Superseded to 33454A)

Note: Obtain Parts From Your Local Tecumseh Dealer

$10.99

$

In Stock, only 1 left!

0

17

Tecumseh 29916

Clamp-Lever, Governor

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 2 left!

0

18

Tecumseh 651028

Screw (T-15, 8-32x7/16)

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 4 left!

0

19

Tecumseh 34663

Spring-Throttle

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 3 left!

0

20

Tecumseh 35319

Seal-Oil

Note: Obtain Parts From Your Local Tecumseh Dealer

$4.99

$

In Stock, only 2 left!

0

25

Tecumseh 36460

Baffle-Housing, Blower
(Superseded to 37853)

Note: Obtain Parts From Your Local Tecumseh Dealer

$11.99

$

In Stock, only 1 left!

0

26

Tecumseh 650561

Screw (1/4-20x19/32)

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 2 left!

0

28

Tecumseh 30322

Nut-Lock

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

Usually ships in 3-12 days

0

30

Tecumseh 35571A

Crankshaft

Note: Obtain Parts From Your Local Tecumseh Dealer

$166.99

$

Usually ships in 3-12 days

0

35

Tecumseh 29826

Screw

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 4 left!

0

36

Tecumseh 29918

Washer-Lock

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, Qty 5

0

37

Tecumseh 29216

Nut-Lock

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 3 left!

0

38

Tecumseh 29642

Ring-Retaining

Note: Obtain Parts From Your Local Tecumseh Dealer

$100.99

$

In Stock, only 2 left!

0

40

Tecumseh 35776

Piston, Pin & Ring Assy. Std. (Includes ref.#41, 42 & 43)
(Superseded to 35776B)

Note: Obtain Parts From Your Local Tecumseh Dealer

$54.99

$

In Stock, only 1 left!

0

Tecumseh 35777

Piston, Pin & Ring Assy. .010 oversize (Includes ref.#41, 42 & 43)
(Superseded to 35777A)

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Not available

Tecumseh 35778

Piston, Pin & Ring Assy. .020 oversize (Includes ref.#41, 42 & 43)
(Superseded to 35778A)

Note: Obtain Parts From Your Local Tecumseh Dealer

$158.99

$

Usually ships in 3-12 days

0

41

Tecumseh 35773

Piston & Pin Assembly Standard (Includes ref.#43)
(Superseded to 35776B)

Note: Obtain Parts From Your Local Tecumseh Dealer

$54.99

$

In Stock, only 1 left!

0

Tecumseh 35774

Piston & Pin Assembly .010 oversize (Incl. ref.#43)
(Superseded to 35777A)

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Not available

Tecumseh 35775

Piston & Pin Assembly .020 oversize (Incl. ref.#43)
(Superseded to 35778A)

Note: Obtain Parts From Your Local Tecumseh Dealer

$158.99

$

Usually ships in 3-12 days

0

42

Tecumseh 35779

Ring Set (STD)

Note: Obtain Parts From Your Local Tecumseh Dealer

$44.99

$

In Stock, only 1 left!

0

Tecumseh 35780

Ring Set (.010)

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Not available

Tecumseh 35781

Ring Set (.020)

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Not available

43

Tecumseh 35772

Retaining Ring-Piston Pin

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 4 left!

0

45

Tecumseh 36898

Rod Assembly-Connecting (Incl. ref.#46, 47 & 49)
(Superseded to 36898A)

Note: Obtain Parts From Your Local Tecumseh Dealer

$52.99

$

In Stock, only 2 left!

0

47

Tecumseh 651033

Bolt-Rod, Connecting
(Superseded to 651033A)

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Not available

48

Tecumseh 34034

Lifter-Valve
(Superseded to 34034A)

Note: Obtain Parts From Your Local Tecumseh Dealer

$10.99

$

In Stock, only 3 left!

0

49

Tecumseh 36896

Dipper-Oil

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

Usually ships in 3-12 days

0

50

Tecumseh 35375

Camshaft (MCR)

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Not available

60

Tecumseh 33273A

Extension-Housing, Blower

Note: Obtain Parts From Your Local Tecumseh Dealer

$7.49

$

Usually ships in 3-12 days

0

61

Tecumseh 34126

Bracket

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

Usually ships in 3-12 days

0

62

Tecumseh 650760

Screw (8-32 x 3/8)

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 3 left!

0

63

Tecumseh 28545

Grommet

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, Qty 5

0

65

Tecumseh 650128

Screw

Note: Obtain Parts From Your Local Tecumseh Dealer

$5.49

$

In Stock, only 2 left!

0

69

Tecumseh 35262A

Gasket-Cover, Cylinder
(Superseded to 37342)

Note: Included in Gasket Set 36452 (Ref. Num 400).

$11.99

$

In Stock, only 1 left!

0

69

Tecumseh 35262A

Gasket-Cover, Cylinder
(Superseded to 37342)

Note: Obtain Parts From Your Local Tecumseh Dealer

$11.99

$

In Stock, only 1 left!

0

70

Tecumseh 35376

Cover Assembly, Cylinder (Incl. ref.#71, 75 & 80)
(Superseded to 38027)

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Not available

71

Tecumseh 35377

Bushing-Crankshaft

Note: Obtain Parts From Your Local Tecumseh Dealer

$11.99

$

In Stock, only 3 left!

0

72

Tecumseh 27642

Plug-Drain, Oil (SQH 1/4-18)

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 3 left!

0

75

Tecumseh 35319

Seal-Oil

Note: Obtain Parts From Your Local Tecumseh Dealer

$4.99

$

In Stock, only 2 left!

0

80

Tecumseh 31845

Shaft-Governor
(Superseded to 37587)

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Not available

81

Tecumseh 30590A

Washer-Flat

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, Qty 7

0

82

Tecumseh 35378

Gear-Governor (Incl. ref.#81)

Note: Obtain Parts From Your Local Tecumseh Dealer

$3.99

$

Usually ships in 3-12 days

0

83

Tecumseh 30588A

Spool-Governor

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 4 left!

0

84

Tecumseh 29193

Ring-Retaining

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 4 left!

0

86

Tecumseh 650833

Screw (1/4-20x1-3/16)

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

Usually ships in 3-12 days

0

87

Tecumseh 650832

Screw (1/4-20x1-11/16)

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Not available

89

Tecumseh 32589

Key-Flywheel

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.49

$

In Stock, Qty 6

0

90

Tecumseh 611093

Flywheel ASM

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Not available

92

Tecumseh 650880

Washer-Belleville

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 3 left!

0

93

Tecumseh 650881

Nut-Flywheel

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

Usually ships in 3-12 days

0

100

Tecumseh 35135

Solid State ASM
(Superseded to 35135B)

Note: Obtain Parts From Your Local Tecumseh Dealer

$62.99

$

In Stock, only 2 left!

0

101

Tecumseh 610118

Cover-Spark Plug

Note: Obtain Parts From Your Local Tecumseh Dealer

$6.49

$

In Stock, only 4 left!

0

102

Tecumseh 651024

Stud-Mounting, Solid State

Note: Obtain Parts From Your Local Tecumseh Dealer

$3.99

$

In Stock, only 2 left!

0

103

Tecumseh 651007

Screw (T-15, 10-24 x 15/16)

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 4 left!

0

110

Tecumseh 35253

Ground Wire

Note: Obtain Parts From Your Local Tecumseh Dealer

$6.49

$

In Stock, only 2 left!

0

119

Tecumseh 36451

Gasket-Head, Cylinder

Note: Obtain Parts From Your Local Tecumseh Dealer

$9.99

$

Usually ships in 3-12 days

0

119

Tecumseh 36451

Gasket-Head, Cylinder

Note: Included in Gasket Set 36452 (Ref. Num 400).

$9.99

$

Usually ships in 3-12 days

0

120

Tecumseh 36449

Head-Cylinder

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Not available

125

Tecumseh 27878A

Valve-Exhaust, Standard (Incl. ref.# 151)

Note: Obtain Parts From Your Local Tecumseh Dealer

$23.99

$

In Stock, only 1 left!

0

Tecumseh 27880A

Valve-Exhaust 1/32" oversize (Incl. ref.# 151)

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Not available

126

Tecumseh 34035

Valve-Intake, Standard (Incl. ref.# 151)

Note: Obtain Parts From Your Local Tecumseh Dealer

$15.99

$

Usually ships in 3-12 days

0

Tecumseh 34036

Valve-Intake 1/32" oversize (Incl. ref.# 151)

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Not available

127

Tecumseh 650691

Washer-Flat

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, Qty 5

0

128

Tecumseh 650690

Washer-Belleville
(Superseded to 730324)

Note: Obtain Parts From Your Local Tecumseh Dealer

$9.99

$

In Stock, only 2 left!

0

130

Tecumseh 6021A

Screw (5/16-18x1-1/2)

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 3 left!

0

130A

Tecumseh 650727

Screw (5/16-18x1-25/32)

Note: Obtain Parts From Your Local Tecumseh Dealer

$3.99

$

In Stock, only 1 left!

0

131

Tecumseh 650694A

Screw (5/16-18 X 2)

Note: Obtain Parts From Your Local Tecumseh Dealer

$3.49

$

In Stock, Qty 20+

0

131A

Tecumseh 650713

Screw
(Superseded to 651055)

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, Qty 5

0

135

Tecumseh 35395

Spark Plug-Resistor (R J19 L M)

Note: Obtain Parts From Your Local Tecumseh Dealer

$3.49

$

In Stock, Qty 20+

0

139

Tecumseh 33369

Bracket-Gear, Governor

Note: Obtain Parts From Your Local Tecumseh Dealer

$8.49

$

In Stock, only 1 left!

0

140

Tecumseh 650836

Screw (10-24x1/2)
(Superseded to 650965)

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Not available

149

Tecumseh 27882

Cap-Spring, Valve

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 4 left!

0

149A

Tecumseh 35862

Cap-Spring, Valve

Note: Obtain Parts From Your Local Tecumseh Dealer

$9.49

$

In Stock, only 1 left!

0

150

Tecumseh 27881

Spring-Valve

Note: Obtain Parts From Your Local Tecumseh Dealer

$3.99

$

In Stock, only 2 left!

0

151

Tecumseh 32581

Keeper-Spring, Valve

Note: Obtain Parts From Your Local Tecumseh Dealer

$6.49

$

In Stock, Qty 10

0

169

Tecumseh 27896A

Gasket-Cover, Valve

Note: Included in Gasket Set 36452 (Ref. Num 400).

$1.49

$

In Stock, Qty 16

0

169

Tecumseh 27896A

Gasket-Cover, Valve

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.49

$

In Stock, Qty 16

0

170

Tecumseh 28423

Body-Breather

Note: Obtain Parts From Your Local Tecumseh Dealer

$13.99

$

Usually ships in 3-12 days

0

171

Tecumseh 28424

Element-Breather

Note: Obtain Parts From Your Local Tecumseh Dealer

$3.99

$

In Stock, Qty 7

0

172

Tecumseh 28425

Cover-Valve

Note: Obtain Parts From Your Local Tecumseh Dealer

$7.49

$

In Stock, only 1 left!

0

173

Tecumseh 35350

Tube-Breather

Note: Obtain Parts From Your Local Tecumseh Dealer

$6.49

$

In Stock, only 1 left!

0

174

Tecumseh 650128

Screw

Note: Obtain Parts From Your Local Tecumseh Dealer

$5.49

$

In Stock, only 2 left!

0

178

Tecumseh 29752

Nut and Lock Washer (1/4-28)

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, Qty 5

0

182

Tecumseh 30088A

Screw (1/4-28x1)

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

Usually ships in 3-12 days

0

183

Tecumseh 34587A

Bracket-Choke
(Superseded to 34587B)

Note: Obtain Parts From Your Local Tecumseh Dealer

$9.49

$

Usually ships in 3-12 days

0

184

Tecumseh 33263

Gasket-Carburetor To Intake Pipe

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.49

$

In Stock, Qty 20+

0

184

Tecumseh 33263

Gasket-Carburetor To Intake Pipe

Note: Included in Gasket Set 36452 (Ref. Num 400).

$1.49

$

In Stock, Qty 20+

0

185

Tecumseh 33877

Pipe-Intake

Note: Obtain Parts From Your Local Tecumseh Dealer

$48.99

$

Usually ships in 3-12 days

0

186

Tecumseh 34667

Link-Governor

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

Usually ships in 3-12 days

0

186B

Tecumseh 36652

Spring-Choke

Note: Obtain Parts From Your Local Tecumseh Dealer

$7.49

$

In Stock, Qty 5

0

200

Tecumseh 34677

Bracket Assy.-Control (Incl. Ref.# 203, 204 & 206)

Note: Obtain Parts From Your Local Tecumseh Dealer

$54.99

$

In Stock, only 1 left!

0

203

Tecumseh 31342

Spring-Compression

Note: Obtain Parts From Your Local Tecumseh Dealer

$5.99

$

In Stock, only 1 left!

0

204

Tecumseh 651029

Screw (T-10, 5-40x7/16)

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 2 left!

0

206

Tecumseh 610973

Terminal

Note: Obtain Parts From Your Local Tecumseh Dealer

$3.99

$

In Stock, only 2 left!

0

207

Tecumseh 33878

Link-Throttle

Note: Obtain Parts From Your Local Tecumseh Dealer

$6.99

$

In Stock, only 1 left!

0

209

Tecumseh 650821

Screw (10-32 x 1/2)

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 2 left!

0

215

Tecumseh 35440

Knob-Control

Note: Obtain Parts From Your Local Tecumseh Dealer

$3.99

$

In Stock, only 1 left!

0

219

Tecumseh 34586

Rod-Choke

Note: Obtain Parts From Your Local Tecumseh Dealer

$5.49

$

Usually ships in 3-12 days

0

220

Tecumseh 35438

Knob-Control

Note: Obtain Parts From Your Local Tecumseh Dealer

$3.99

$

In Stock, only 3 left!

0

222

Tecumseh 28820

Screw (10-32 x 1/2)
(Superseded to 651081)

Note: Obtain Parts From Your Local Tecumseh Dealer

$4.49

$

Usually ships in 3-12 days

0

223

Tecumseh 650378

Screw (T-30, 5/16-18x1-3/32)

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 3 left!

0

224

Tecumseh 27915A

Gasket-Pipe, Intake

Note: Included in Gasket Set 36452 (Ref. Num 400).

$5.99

$

In Stock, Qty 20+

0

224

Tecumseh 27915A

Gasket-Pipe, Intake

Note: Obtain Parts From Your Local Tecumseh Dealer

$5.99

$

In Stock, Qty 20+

0

260

Tecumseh 35447A

Housing-Blower
(Superseded to 37961)

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Not available

261

Tecumseh 650788

Screw (5/16-18x3/4)

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 1 left!

0

262

Tecumseh 29747B

Screw

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, Qty 9

0

264A

Tecumseh 650802

Screw (1/2-20x5/8)

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, Qty 5

0

265

Tecumseh 33272B

Cover-Cylinder Head
(Superseded to 33272D)

Note: Obtain Parts From Your Local Tecumseh Dealer

$7.49

$

Usually ships in 3-12 days

0

275

Tecumseh 35056

Muffler

Note: Obtain Parts From Your Local Tecumseh Dealer

$62.99

$

In Stock, only 2 left!

0

276

Tecumseh 31588

Plate-Locking

Note: Obtain Parts From Your Local Tecumseh Dealer

$4.99

$

In Stock, Qty 20+

0

277

Tecumseh 651002

Screw (5/16-18x4-3/16)

Note: Obtain Parts From Your Local Tecumseh Dealer

$4.49

$

In Stock, Qty 12

0

281

Tecumseh 33013

Screw

Note: Obtain Parts From Your Local Tecumseh Dealer

$3.99

$

Usually ships in 3-12 days

0

282

Tecumseh 650760

Screw (8-32 x 3/8)

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 3 left!

0

285

Tecumseh 35985B

Cup-Starter
(Superseded to 35985C)

Note: Obtain Parts From Your Local Tecumseh Dealer

$13.99

$

In Stock, only 1 left!

0

287

Tecumseh 29752

Nut and Lock Washer (1/4-28)

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, Qty 5

0

290

Tecumseh 29774

Line-Fuel (8.62)

Note: Obtain Parts From Your Local Tecumseh Dealer

$34.99

$

In Stock, Qty 6

0

291

Tecumseh 30705

Line-Fuel

Note: Obtain Parts From Your Local Tecumseh Dealer

$16.99

$

In Stock, only 4 left!

0

292

Tecumseh 26460

Clamp-Line, Fuel

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.49

$

In Stock, Qty 10

0

295

Tecumseh 35857

Valve-Shut Off, Fuel

Note: Obtain Parts From Your Local Tecumseh Dealer

$13.99

$

Usually ships in 3-12 days

0

298

Tecumseh 650665

Screw (1/4-15x7/8)

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

Usually ships in 3-12 days

0

300

Tecumseh 34156A

Tank Assembly, Fuel (Incl. Ref.# 292 & 301)

Note: Obtain Parts From Your Local Tecumseh Dealer

$54.99

$

Usually ships in 3-12 days

0

301

Tecumseh 36246

Cap-Fuel
(Superseded to 37844)

Note: Obtain Parts From Your Local Tecumseh Dealer

$5.99

$

Usually ships in 3-12 days

0

305

Tecumseh 35554

Tube-Fill, Oil

Note: Obtain Parts From Your Local Tecumseh Dealer

$19.99

$

In Stock, only 1 left!

0

306

Tecumseh 35499

O-Ring

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.49

$

In Stock, only 3 left!

0

308

Tecumseh 35540

Clip-Tube, Fill

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 2 left!

0

310

Tecumseh 36205

Gauge Oil ASM

Note: Obtain Parts From Your Local Tecumseh Dealer

$10.99

$

Usually ships in 3-12 days

0

314

Tecumseh 650873

Screw (1/4-20 x 3/4)

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

Usually ships in 3-12 days

0

316

Tecumseh 611111

Coil-Alternator, 18 Watt

Note: Obtain Parts From Your Local Tecumseh Dealer

$68.99

$

Usually ships in 3-12 days

0

323

Tecumseh 611118

Terminal

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

Usually ships in 3-12 days

0

325

Tecumseh 29443

Clip-Wire

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, Qty 5

0

327

Tecumseh 35392

Plug Starter

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 1 left!

0

335

Tecumseh 35057A

Cover-Carburetor
(Superseded to 36547A)

Note: Obtain Parts From Your Local Tecumseh Dealer

$70.99

$

In Stock, only 1 left!

0

336

Tecumseh 650765

Screw (10-32x1/2)

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.49

$

In Stock, only 1 left!

0

338

Tecumseh 28942

Screw (10-32 x 3/8)

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.49

$

In Stock, only 1 left!

0

340

Tecumseh 34155

Bracket-Tank, Fuel

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Not available

341

Tecumseh 34154

Bracket-Tank, Fuel (Black)

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Not available

342

Tecumseh 650561

Screw (1/4-20x19/32)

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 2 left!

0

350

Tecumseh 570682

Primer-Asm
(Superseded to 570682A)

Note: Obtain Parts From Your Local Tecumseh Dealer

$10.99

$

In Stock, Qty 7

0

351

Tecumseh 32180C

Line-Primer

Note: Obtain Parts From Your Local Tecumseh Dealer

$6.99

$

In Stock, Qty 9

0

355

Tecumseh 590574

Handle-Starter, Mitten Grip

Note: Obtain Parts From Your Local Tecumseh Dealer

$5.49

$

In Stock, only 1 left!

0

364

Tecumseh 33377

Bracket-Carburetor
(Superseded to 37659)

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Not available

365

Tecumseh 650767

Screw (8-32x27/64)

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.49

$

Usually ships in 3-12 days

0

370

Tecumseh 36261

Decal-Lubrication

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Not available

380

Tecumseh 640054

Carburetor (Incl. Ref.# 184)
(Superseded to 640349)

Note: Obtain Parts From Your Local Tecumseh Dealer

$109.99

$

Usually ships in 3-12 days

0

390

Tecumseh 590733

Starter-Rewind
(Superseded to 590789)

Note: Obtain Parts From Your Local Tecumseh Dealer

$87.99

$

In Stock, only 1 left!

0

396

Tecumseh 33329D

Starter-Electric (110 Volt)
(Superseded to 33329E)

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Not available

400

Tecumseh 36452A

Gasket Set (Incl. items marked )
(Superseded to 36452B)

Note: Included in Gasket Set 36452 (Ref. Num 400).

$21.99

$

In Stock, only 2 left!

0

400

Tecumseh 36452A

Gasket Set (Incl. items marked )
(Superseded to 36452B)

Note: Obtain Parts From Your Local Tecumseh Dealer

$21.99

$

In Stock, only 2 left!

0

420

Tecumseh 730226

Oil-Engine (SAE 5W30)
(Superseded to 730226B)

Note: Obtain Parts From Your Local Tecumseh Dealer

$13.99

$

In Stock, Qty 10

0
