38547 (924) - Toro 24" Power Shift Snow Thrower (SN: 200000001 - 200999999) (2000) CARBURETOR NO. 640169 Parts Diagram

24" Power Shift Snow Thrower

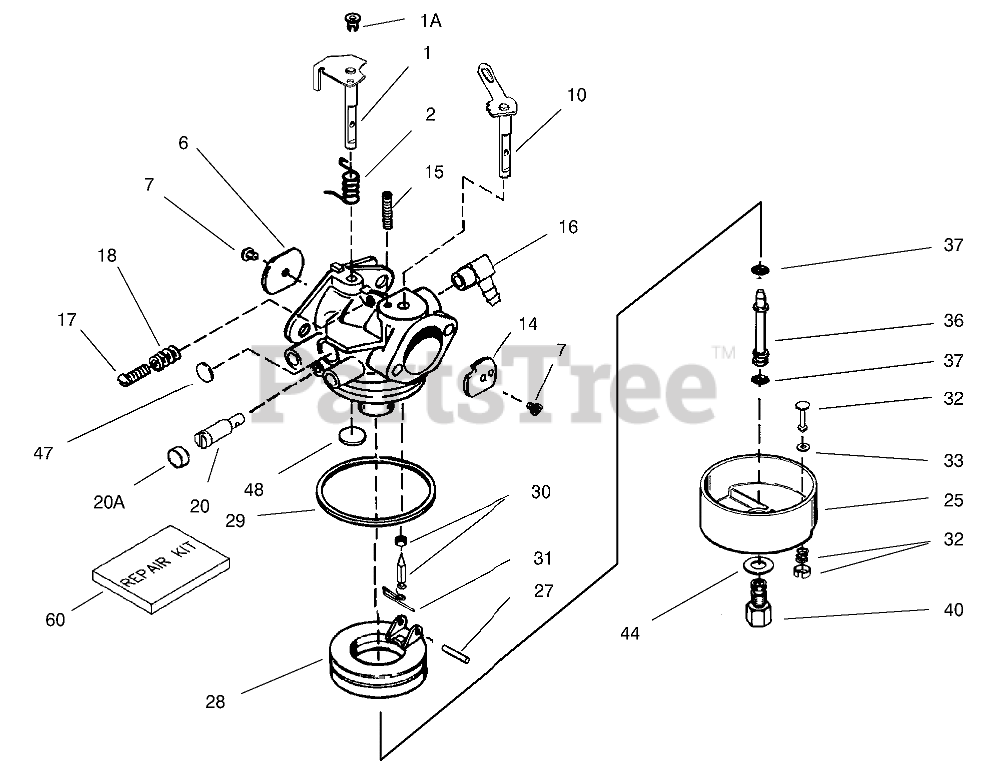

CARBURETOR NO. 640169 Parts Diagram

  • Title

1

Tecumseh 632777

Throttle Shaft and Lever ASM

Note: Original Tecumseh Part

$

$

Not available

1A

Tecumseh 36288

Bushing

Note: Original Tecumseh Part

$1.99

$

Usually ships in 3-12 days

0

2

Tecumseh 631970

Spring-Return, Throttle

Note: Original Tecumseh Part

$4.49

$

Usually ships in 3-12 days

0

6

Tecumseh 640109

Shutter-Throttle

Note: Original Tecumseh Part

$13.99

$

Usually ships in 3-12 days

0

7

Tecumseh 650506

Screw-Shutter

Note: Original Tecumseh Part

$1.49

$

In Stock, Qty 14

0

10

Tecumseh 632778

Choke Shaft and Lever ASM

Note: Original Tecumseh Part

$7.49

$

Usually ships in 3-12 days

0

14

Tecumseh 631753

Choke Shutter

Note: Original Tecumseh Part

$1.99

$

In Stock, only 4 left!

0

15

Tecumseh 630735

Spring-Positioning, Choke

Note: Original Tecumseh Part

$1.99

$

In Stock, only 4 left!

0

16

Tecumseh 632527

Fitting-Fuel

Note: Original Tecumseh Part

$8.49

$

In Stock, only 1 left!

0

17

Tecumseh 651025

Screw-Throttle Crack and Idle Speed

Note: Original Tecumseh Part

$1.99

$

In Stock, only 4 left!

0

18

Tecumseh 630766

Spring-Tension

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 5

0

20

Tecumseh 640027

Screw-Restrictor, Idle

Note: Original Tecumseh Part

$3.99

$

In Stock, only 1 left!

0

20A

Tecumseh 640053

Cap-Screw, Idle Restrictor

Note: Original Tecumseh Part

$1.49

$

In Stock, Qty 5

0

25

Tecumseh 632594A

Float Bowl ASM (Incl. Ref. #32 & 33)

Note: Original Tecumseh Part

$14.99

$

In Stock, only 1 left!

0

27

Tecumseh 631024

Shaft-Float

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 10

0

28

Tecumseh 632019

Float
(Superseded to 632019A)

Note: Original Tecumseh Part

$7.49

$

In Stock, Qty 7

0

29

Tecumseh 631028

O Ring-Bowl, Float
(Superseded to 631028A)

Note: Original Tecumseh Part

$2.49

$

In Stock, Qty 18

0

30

Tecumseh 631021

Inlet Needle, Seat, Clip (Incl. Ref. #31)
(Superseded to 631021B)

Note: Original Tecumseh Part

$6.99

$

In Stock, Qty 20+

0

31

Tecumseh 631022

Clip-Spring

Note: Original Tecumseh Part

$1.99

$

In Stock, only 4 left!

0

32

Tecumseh 27136A

Bowl Drain ASM

Note: Original Tecumseh Part

$7.49

$

In Stock, only 1 left!

0

33

Tecumseh 27554

Gasket-Plunger, Drain

Note: Original Tecumseh Part

$1.49

$

In Stock, Qty 15

0

36

Tecumseh 640013

Tube-Nozzle, Main

Note: Original Tecumseh Part

$6.99

$

In Stock, only 2 left!

0

37

Tecumseh 632547

O-Ring

Note: Original Tecumseh Part

$4.49

$

In Stock, Qty 20+

0

40

Tecumseh 640170

Nut-Bowl, High Speed

Note: Original Tecumseh Part

$7.49

$

Usually ships in 3-12 days

0

44

Tecumseh 27110A

Washer-Nut, Bowl

Note: Original Tecumseh Part

$2.49

$

In Stock, only 3 left!

0

47

Tecumseh 630748

Plug-Welch, Idle Mixture Well

Note: Original Tecumseh Part

$1.99

$

In Stock, only 1 left!

0

48

Tecumseh 631027

Plug-Welch, Atmospheric Vent

Note: Original Tecumseh Part

$1.99

$

In Stock, only 4 left!

0

60

Tecumseh 632760

Repair Kit
(Superseded to 632760B)

Note: Original Tecumseh Part

$27.99

$

In Stock, Qty 5

0
