38546 (824) - Toro 24" Power Shift Snow Thrower (SN: 099000001 - 099999999) (1999) TRACTION DRIVE ASSEMBLY Parts Diagram

24" Power Shift Snow Thrower

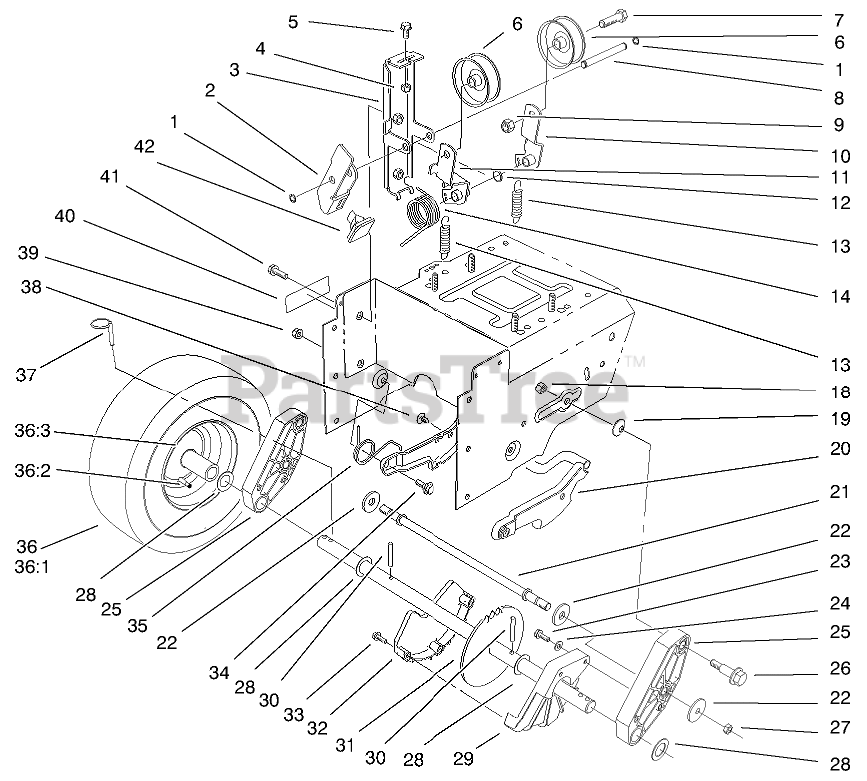

TRACTION DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 32120-46

RING-RETAINING

$2.49

$

Usually ships in 3-6 days

0

2

Toro 63-2810

ARM-BRAKE

$47.99

$

Usually ships in 3-6 days

0

3

Toro 63-2850

IDLER ARM BRACKET ASM

$

$

Not available

4

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

5

Toro 3234-13

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

6

Toro 3-4244

PULLEY-IDLER

$27.99

$

In Stock, only 2 left!

0

7

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

8

Toro 62-0970

PIN-IDLER

$

$

Not available

9

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

10

Toro 93-8045

TRACTION IDLER ARM ASM

$157.99

$

In Stock, only 1 left!

0

11

Toro 93-8046

IMPELLER IDLER ARM ASM

$

$

Not available

12

Toro 3256-38

WASHER-FLAT

$0.99

$

In Stock, only 2 left!

0

13

Toro 63-2870

SPRING-EXTENSION

$9.99

$

In Stock, only 2 left!

0

14

Toro 63-2880

SPRING-TORSION

$

$

Not available

18

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

19

Toro 3290-461

WASHER-SPRING

$5.49

$

In Stock, only 2 left!

0

20

Toro 62-0470-03

LATCH ASM

$165.99

$

Usually ships in 3-6 days

0

21

Toro 66-7720

ROD-LATCH

$72.99

$

Usually ships in 3-6 days

0

22

Toro 63-3340

WASHER-SUPPORT

$4.49

$

Usually ships in 3-6 days

0

23

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

24

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 66-7740

PIVOT ARM ASM

$93.99

$

Usually ships in 3-6 days

0

26

Toro 62-1330

BOLT-SHOULDER

$11.99

$

In Stock, only 1 left!

0

27

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

28

Toro 252-80

WASHER-THRUST

$9.99

$

In Stock, Qty 20+

0

29

Toro 62-1010

GUARD-CHAIN, LH

$

$

Not available

30

Toro 32121-9

PIN-ROLL, SLOTTED

$3.49

$

In Stock, Qty 8

0

31

Toro 63-2111

AXLE ASM

$

$

Not available

32

Toro 62-1000

GUARD-CHAIN, RH

$

$

Not available

33

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

34

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

35

Toro 63-2740

SPRING-LATCH, TORSION

$19.99

$

Usually ships in 3-6 days

0

36

Toro 67-9220

Wheel And Tire ASM

$

$

Not available

36:1

Toro 231-120

TIRE

$299.99

$

Usually ships in 3-6 days

0

36:2

Toro 232-46

TUBE-INNER

$37.99

$

Usually ships in 3-6 days

0

36:3

Toro 241-128

WHEEL

$210.99

$

Usually ships in 3-6 days

0

37

Toro 3290-243

PIN-LYNCH
(Superseded to 107-3039)

$10.99

$

Usually ships in 3-6 days

0

38

Toro 3290-476

FASTENER-PANEL

$2.49

$

Usually ships in 3-6 days

0

39

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

40

Toro 94-2575

Decal-Adjustment (Only On: 38546)

$

$

Not available

40

Toro 66-6860

Decal-Warning (Only On: 38542)

$

$

Not available

41

Toro 3234-7

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

42

Toro 66-8060

PAD-BRAKE

$18.99

$

In Stock, Qty 20+

0
