38545 (828) - Toro 28" Power Shift Snow Thrower (SN: 008000001 - 008999999) (1988) ENGINE ASSEMBLY Parts Diagram

28" Power Shift Snow Thrower

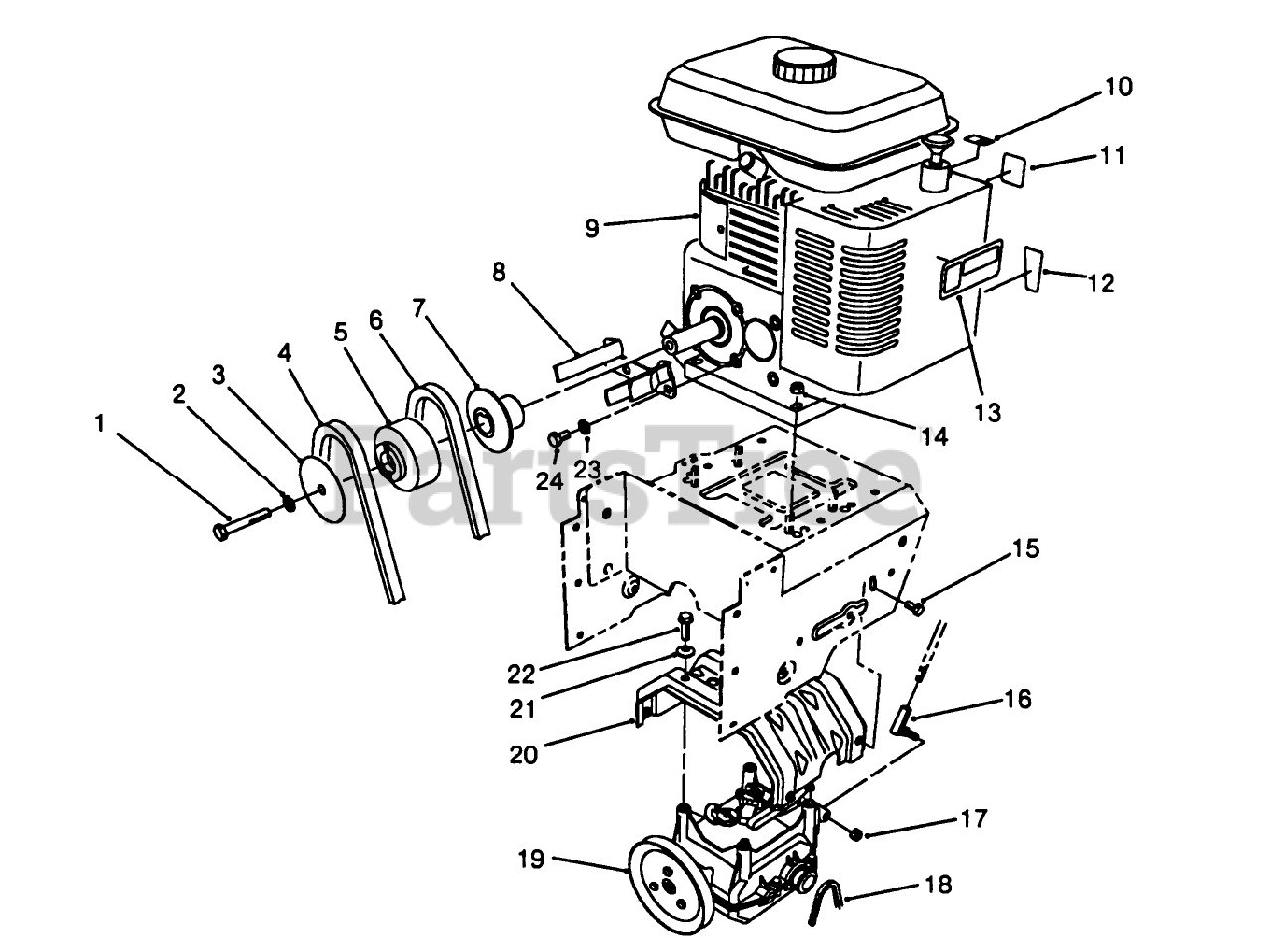

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 3211-9

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

2

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

3

Toro 62-0910

SHEAVE-HALF,IMPELLER

$

$

Not available

4

Toro 63-2963

IMPELLER BELT

$56.99

$

Usually ships in 3-6 days

0

5

Toro 62-0900

ENGINE PULLEY,CENTER

$

$

Not available

6

Toro 63-2952

Belt-Traction

$

$

Not available

7

Toro 62-0890

SHEAVE-HALF,TRACTION

$

$

Not available

8

Toro 63-2980

Guide-Belt
(Superseded to 68-7490)

$

$

Not available

9

Toro 63-3010

Engine-8 hp.

$

$

Not available

10

Toro 63-3490

DECAL-CHOKE

$

$

Not available

11

Toro 63-2470

DECAL-PRIMER/CHOKE

$

$

Not available

12

Toro 63-3190

DECAL-THROTTLE

$

$

Not available

13

Toro 63-2310

DECAL-HOT SURFACE, WARNING
(Superseded to 94-2576)

$

$

Not available

14

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

15

Toro 3234-7

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

16

Toro 63-2640

JOINT-BALL

$

$

Not available

17

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

18

Toro 63-2930

CHAIN

$

$

Not available

19

Toro 62-0190

Transmission Assembly
(Superseded to 66-8030)

$2189.99

$

Usually ships in 3-6 days

0

20

Toro 63-2990

Frame-Transmission
(Superseded to 63-2990-03)

$

$

Not available

21

Toro 3290-461

WASHER-SPRING

$5.49

$

In Stock, only 2 left!

0

22

Toro 11-0590

SCREW-HWHTF
(Superseded to 32144-102)

$3.49

$

Usually ships in 3-6 days

0

23

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

24

Toro 3210-1

SCREW-HH

$7.99

$

In Stock, only 2 left!

0
