385447-3176-H7 - Briggs & Stratton Horizontal Engine Flywheel/Ignition/Starter Group Parts Diagram

Horizontal Engine

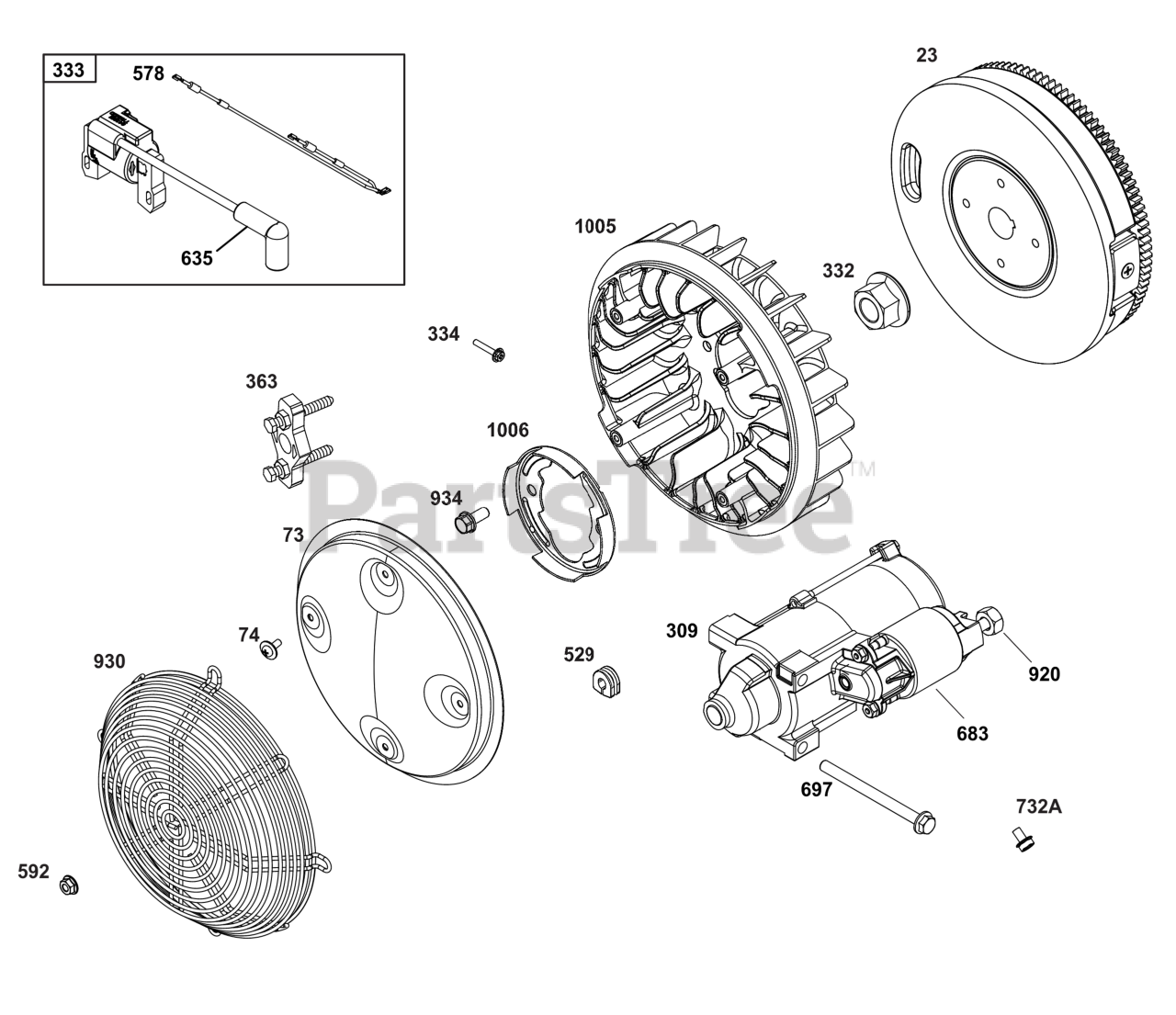

Flywheel/Ignition/Starter Group Parts Diagram

  • Title

23

Briggs & Stratton 841050

FLYWHEEL ASSY

$274.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 841440

SCREEN, Rotating

$37.99

$

In Stock, only 2 left!

0

74

Briggs & Stratton 841441

SCREW
(Superseded to 84007750)

Note: (Rotating Screen)

$3.99

$

Usually ships in 2-12 days

0

309

Briggs & Stratton 847693

MOTOR-STARTER

$249.99

$

In Stock, only 2 left!

0

332

Briggs & Stratton 690887

NUT

$5.49

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 84003819

ARMATURE-MAGNETO

$71.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 692066

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 7

0

363

Briggs & Stratton 19203

PULLER, Flywheel

$23.99

$

In Stock, only 1 left!

0

529

Briggs & Stratton 690744

GROMMET

$7.49

$

Usually ships in 2-12 days

0

578

WIRE ASSEMBLY

Note: (Part information located in Controls Group.)

$

$

Not available

592

Briggs & Stratton 690939

NUT

$3.49

$

In Stock, only 4 left!

0

635

BOOT, Spark Plug

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

683

Briggs & Stratton 845758

NUT

Note: (Starter Solenoid)

$2.99

$

In Stock, only 2 left!

0

697

Briggs & Stratton 806474

SCREW

Note: (Drive Cap)

$5.49

$

Usually ships in 2-12 days

0

732A

Briggs & Stratton 841233

SCREW

Note: (Starter Drive Cover)

$3.49

$

In Stock, Qty 20+

0

920

Briggs & Stratton 847694

SOLENOID, Starter
(Superseded to 84008635)

$61.99

$

In Stock, only 3 left!

0

930

Briggs & Stratton 846284

GUARD, Flywheel Fan

$51.99

$

Usually ships in 2-12 days

0

934

Briggs & Stratton 692062

SCREW

$3.49

$

In Stock, Qty 20+

0

1005

Briggs & Stratton 841439

FAN, Flywheel

$34.99

$

In Stock, only 2 left!

0

1006

Briggs & Stratton 690452

RETAINER, Fan

$10.99

$

Usually ships in 2-12 days

0
