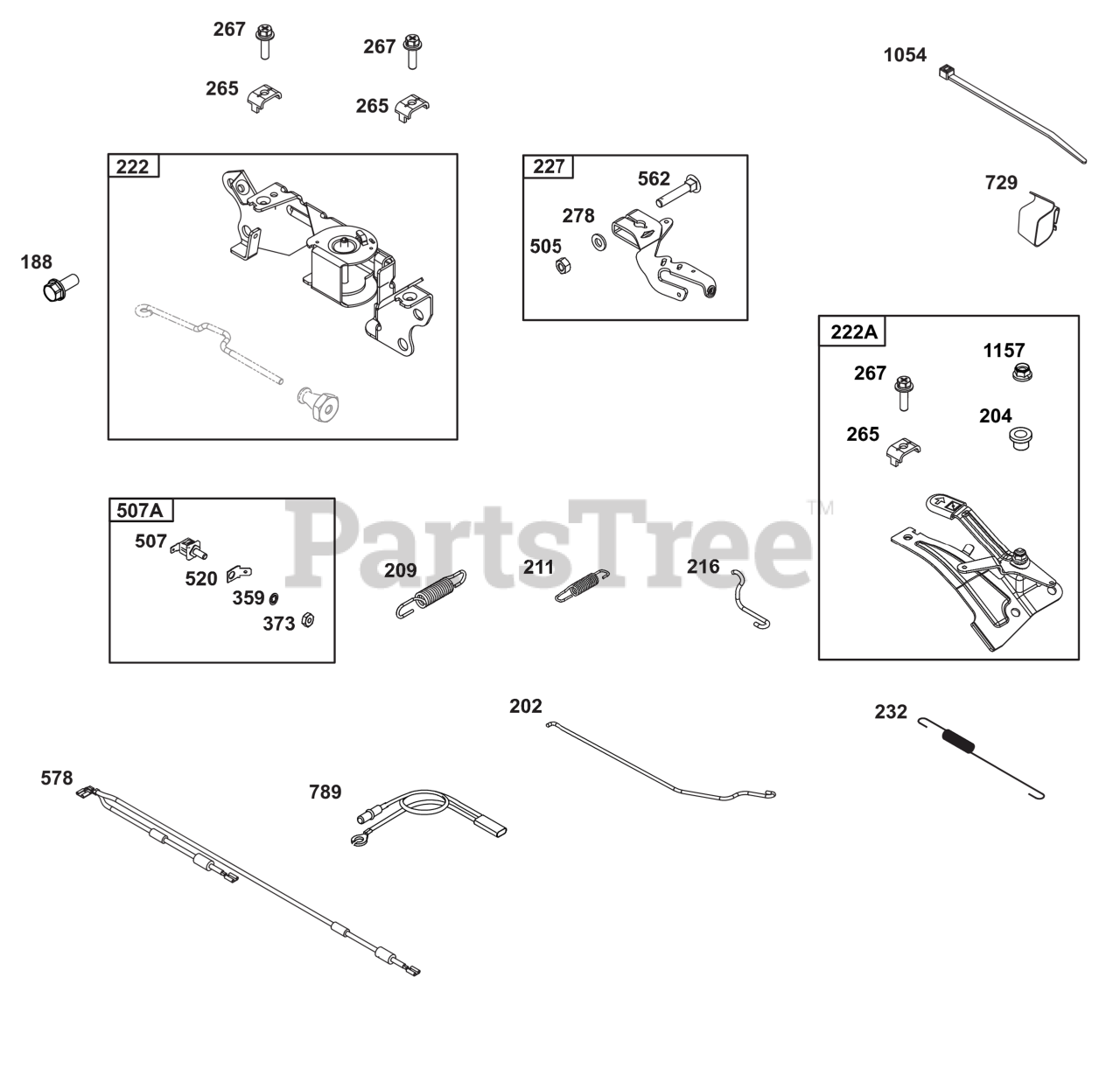

385447-0407-B5 - Briggs & Stratton Horizontal Engine Controls Group Parts Diagram

Horizontal Engine

Controls Group Parts Diagram

  • Title
188

Briggs & Stratton 692062

SCREW

Note: (Control Bracket)

$3.49

$

In Stock, Qty 20+

0

202

Briggs & Stratton 691536

LINK, Mechanical Governor

$9.49

$

Usually ships in 2-12 days

0

204

Briggs & Stratton 692884

BUSHING, Lever

$6.99

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 692070

SPRING, Governor

$5.99

$

In Stock, Qty 10

0

211

Briggs & Stratton 692069

SPRING, Governed Idle

$6.49

$

In Stock, Qty 8

0

216

$6.49

$

In Stock, Qty 20+

0

222

Briggs & Stratton 808454

BRACKET, Control

$38.99

$

In Stock, only 2 left!

0

222A

$38.99

$

In Stock, only 1 left!

0

227

Briggs & Stratton 690236

LEVER, Governor Control

$27.99

$

In Stock, only 1 left!

0

232

Briggs & Stratton 691538

SPRING/LINK, Governor

$9.49

$

In Stock, only 3 left!

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 7

0

267

Briggs & Stratton 841552

SCREW

Note: (Casing Clamp)

$3.49

$

In Stock, only 1 left!

0

278

Briggs & Stratton 842122

WASHER

Note: (Governor Control Lever)

$5.49

$

In Stock, only 1 left!

0

359

Briggs & Stratton 691077

WASHER

Note: (Ground Terminal)

$3.49

$

In Stock, only 2 left!

0

373

Briggs & Stratton 845823

NUT

Note: (Ground Terminal)

$4.99

$

Usually ships in 2-12 days

0

505

Briggs & Stratton 844752

NUT

Note: (Governor Control Lever)

$3.49

$

Usually ships in 2-12 days

0

507

$8.49

$

In Stock, only 3 left!

0

507A

Briggs & Stratton 848341

CONNECTOR, Terminal

$9.99

$

Usually ships in 2-12 days

0

520

Briggs & Stratton 691084

TERMINAL, Ground

$6.49

$

In Stock, only 2 left!

0

562

Briggs & Stratton 690239

BOLT

Note: (Governor Control Lever)

$5.49

$

Usually ships in 2-12 days

0

578

WIRE ASSEMBLY

Note: (Part information located in Flywheel, Ignition, and Starter Group.)

$

$

Not available

729

$5.99

$

Usually ships in 2-12 days

0

789

Briggs & Stratton 844914

HARNESS, Wiring

$42.99

$

Usually ships in 2-12 days

0

1054

$4.49

$

Usually ships in 2-12 days

0

1157

Briggs & Stratton 690713

NUT
(Superseded to 806447)

$

$

Not available
