38543 (824) - Toro 24" Power Shift Snow Thrower (SN: 089000001 - 089999999) (1998) ENGINE ASSEMBLY Parts Diagram

24" Power Shift Snow Thrower

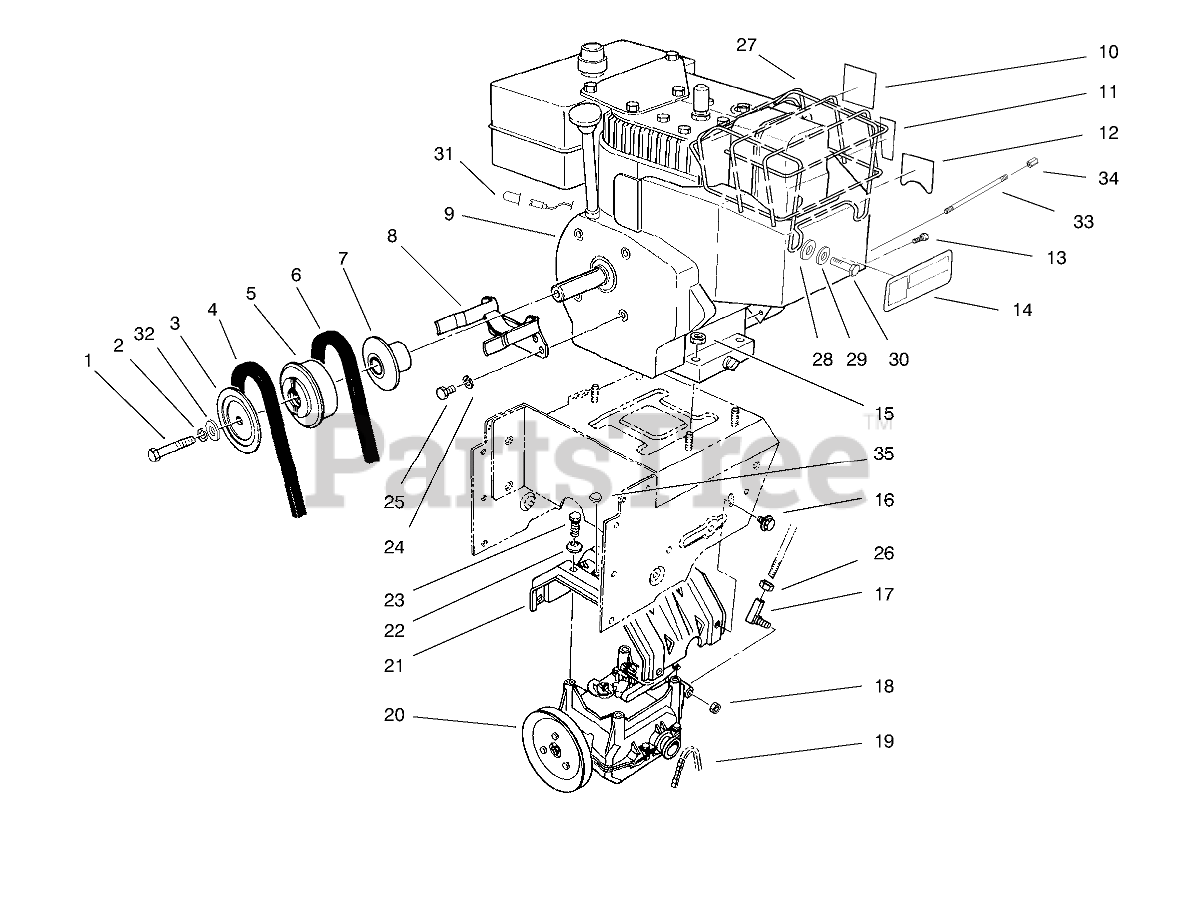

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 3212-8

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

2

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

3

Toro 62-0940

SHEAVE-HALF, IMPELLER

$18.99

$

In Stock, only 1 left!

0

4

Toro 63-2961

V-BELT

$29.99

$

In Stock, only 3 left!

0

5

Toro 62-0930

PULLEY-ENGINE, CENTER

$80.99

$

Usually ships in 3-6 days

0

6

Toro 63-2951

V-BELT-TRACTION

$25.99

$

In Stock, Qty 6

0

7

Toro 62-0920

SHEAVE-HALF, TRACTION

$

$

Not available

8

Toro 68-7510

Guide-Belt
(Superseded to 68-7510-03)

$

$

Not available

9

Engine

Note: Obtain from your local Tecumseh dealer.

$

$

Not available

10

Toro 94-2572

DECAL - PRIMER

$

$

Not available

11

Toro 63-3190

DECAL-THROTTLE

$

$

Not available

12

Toro 63-2410

DECAL-CHOKE

$

$

Not available

13

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

14

Toro 93-1265

DECAL-SURFACE, HOT

$8.49

$

Usually ships in 3-6 days

0

14

Toro 66-6840

DECAL-WARNING, HOT SURFACE

$80.99

$

Usually ships in 3-6 days

0

15

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

16

Toro 3234-7

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

17

Toro 78-2920

BALL-JOINT
(Superseded to 94-7572)

$34.99

$

In Stock, only 2 left!

0

18

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

19

Toro 63-2940

CHAIN

$

$

Not available

20

Toro 66-8030

TRACTION GEARCASE ASM

$2189.99

$

Usually ships in 3-6 days

0

21

Toro 63-2990

Frame-Transmission
(Superseded to 63-2990-03)

$

$

Not available

22

Toro 3290-461

WASHER-SPRING

$5.49

$

In Stock, only 2 left!

0

23

Toro 11-0590

SCREW-HWHTF
(Superseded to 32144-102)

$3.49

$

Usually ships in 3-6 days

0

24

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

25

Toro 3210-1

SCREW-HH

$7.99

$

In Stock, only 2 left!

0

26

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

27

Toro 127-20

Guard-Muffler

Note: Obtain from your local Tecumseh dealer.

$

$

Currently unavailable

28

Toro 32-251-1

Washer-Flat

Note: Obtain from your local Tecumseh dealer.

$

$

Currently unavailable

29

Toro 36-180

Washer-Lock

Note: Obtain from your local Tecumseh dealer.

$

$

Currently unavailable

30

Toro 42-671

Screw

Note: Obtain from your local Tecumseh dealer.

$

$

Currently unavailable

31

Toro 94-2782

CAP-WIRE, LITE

$3.49

$

Usually ships in 3-6 days

0

32

Toro 3256-41

WASHER

$1.99

$

In Stock, Qty 6

0

32

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

33

Toro 289-34

NIPPLE-PIPE

$40.99

$

Usually ships in 3-6 days

0

34

Toro 288-2

CAP-PIPE

$19.99

$

In Stock, only 1 left!

0

35

Toro 95-7947

CAP-PLUG

$

$

Not available
