38543 (824) - Toro 24" Power Shift Snow Thrower (SN: 009000001 - 009999999) (1989) DRIFT BREAKER ASSEMBLY NO. 66-7960 (OPTIONAL) Parts Diagram

24" Power Shift Snow Thrower

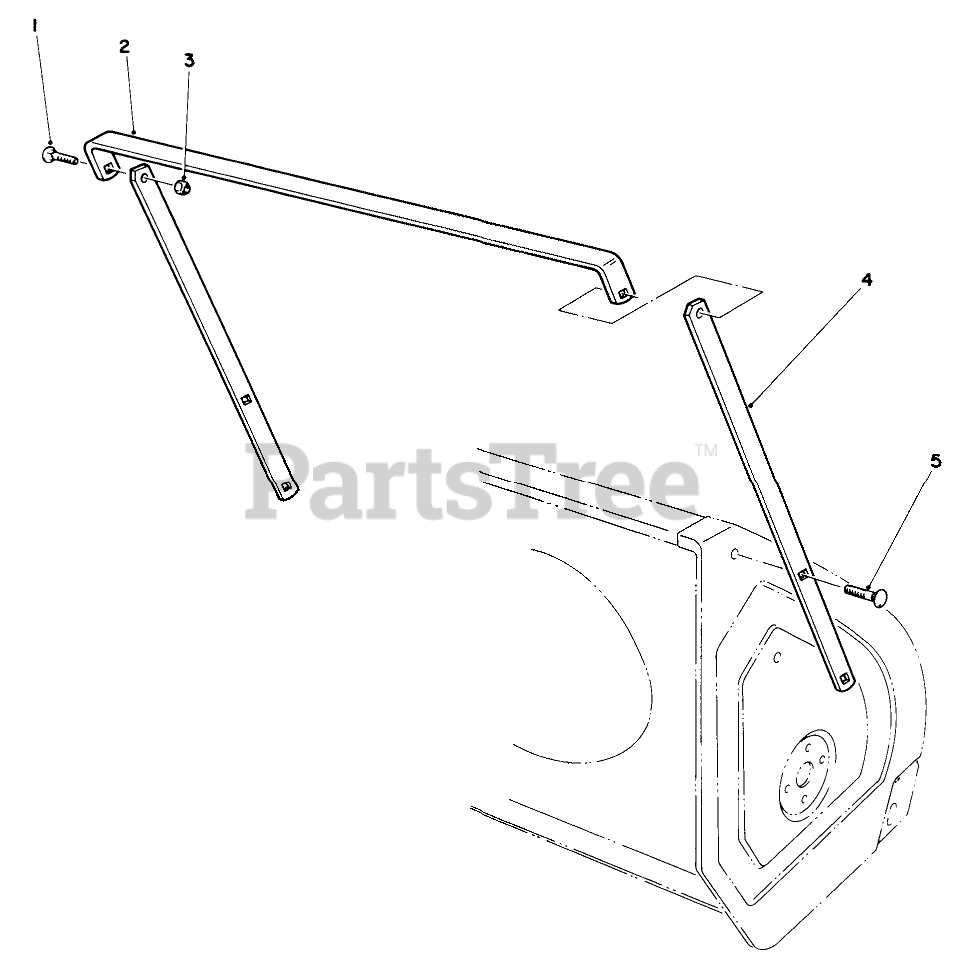

DRIFT BREAKER ASSEMBLY NO. 66-7960 (OPTIONAL) Parts Diagram

  • Title
1

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

2

Toro 68-7180

Breaker-Top, 24 Inch
(Superseded to 68-7180-03)

$

$

Not available

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 68-7170

Breaker-Side
(Superseded to 68-7170-03)

$

$

Not available

5

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 18

0
