38543 (824) - Toro 24" Power Shift Snow Thrower (SN: 008000001 - 008999999) (1988) 24" AUGER GEARCASE ASSEMBLY NO. 62-0440 Parts Diagram

24" Power Shift Snow Thrower

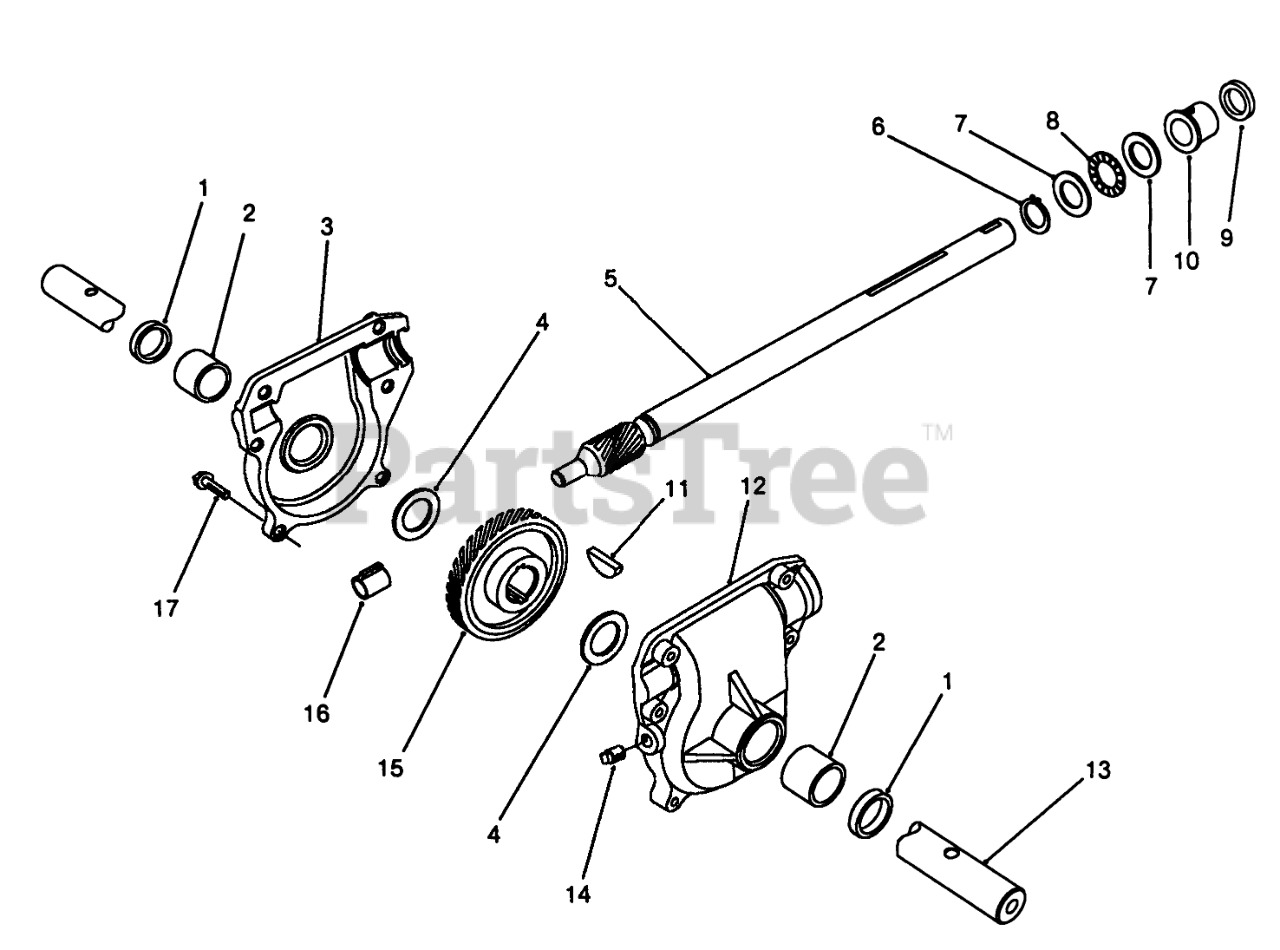

24" AUGER GEARCASE ASSEMBLY NO. 62-0440 Parts Diagram

1

Toro 7-0045

SEAL-OIL

$18.99

$

In Stock, only 2 left!

0

2

Toro 256-237

BUSHING

$17.99

$

In Stock, only 1 left!

0

3

Toro 62-0570

Gearcase Assembly-R.H. (Incl. Ref. #1-2)
(Superseded to 110-3439)

$416.99

$

Usually ships in 3-6 days

0

4

Toro 252-71

WASHER-THRUST

$20.99

$

In Stock, only 3 left!

0

5

Toro 62-1420

Shaft-Impeller
(Superseded to 66-7811)

$282.99

$

Usually ships in 3-6 days

0

6

Toro 32151-33

RING-RETAINING, Ext

$3.99

$

In Stock, only 2 left!

0

7

Toro 252-78

WASHER-THRUST

$27.99

$

In Stock, only 2 left!

0

8

Toro 252-76

BEARING-THRUST

$22.99

$

In Stock, only 4 left!

0

9

Toro 253-149

SEAL-OIL

$13.99

$

In Stock, only 2 left!

0

10

Toro 37-6560

BUSHING-INPUT

$45.99

$

In Stock, only 2 left!

0

11

Toro 3257-10

KEY-WOODRUFF

$6.99

$

Usually ships in 3-6 days

0

12

Toro 62-0580

Gearcase Assembly-L.H. (Incl. Ref. #1-2)
(Superseded to 110-3439)

$416.99

$

Usually ships in 3-6 days

0

13

Toro 62-1530

SHAFT-AUGER

$

$

Not available

14

Toro 281-1

PLUG-PIPE, SQH

$5.99

$

Usually ships in 3-6 days

0

15

Toro 62-0120

GEAR-HELICAL
(Superseded to 138-0696)

$72.99

$

In Stock, only 2 left!

0

16

Toro 62-1150

BUSHING-WORM

$8.49

$

In Stock, only 2 left!

0

17

Toro 32144-22

SCREW

$0.99

$

Usually ships in 3-6 days

0
