38542 (824) - Toro 24" Power Shift Snow Thrower (SN: 099000001 - 099999999) (1999) ENGINE ASSEMBLY Parts Diagram

24" Power Shift Snow Thrower

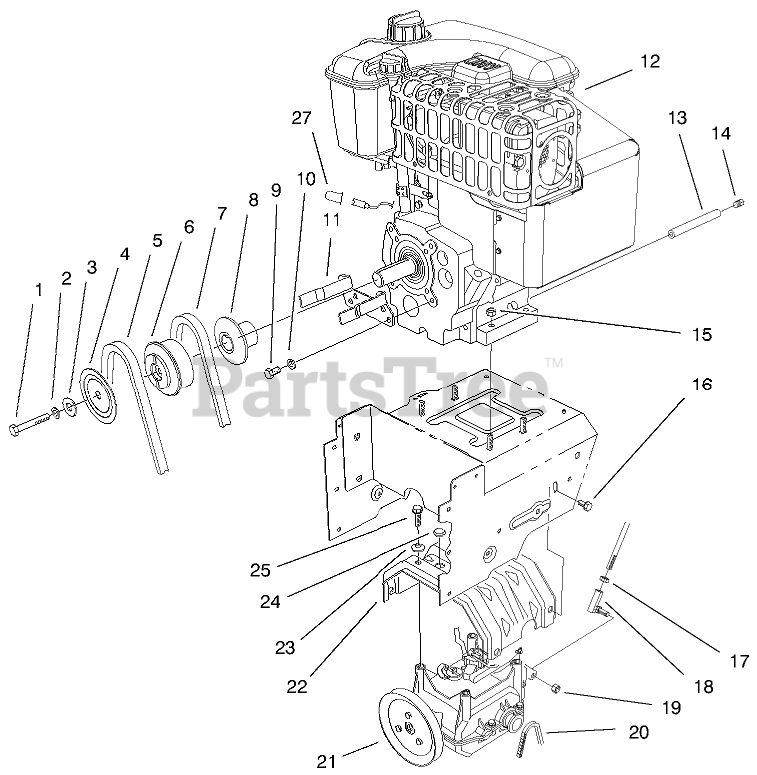

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 3212-8

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

2

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

3

Toro 3256-41

WASHER

$1.99

$

In Stock, Qty 6

0

4

Toro 62-0940

SHEAVE-HALF, IMPELLER

$18.99

$

In Stock, only 1 left!

0

5

Toro 63-2961

V-BELT

$26.99

$

In Stock, only 3 left!

0

6

Toro 62-0930

PULLEY-ENGINE, CENTER

$70.99

$

Usually ships in 3-6 days

0

7

Toro 63-2951

V-BELT-TRACTION

$22.99

$

In Stock, Qty 7

0

8

Toro 62-0920

SHEAVE-HALF, TRACTION

$

$

Not available

9

Toro 3210-1

SCREW-HH

$6.99

$

In Stock, only 2 left!

0

10

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

11

Toro 68-7510-03

BELT GUIDE ASM

$

$

Not available

12

Engine-Tecumseh (OHSK80-221201A)

$

$

Not available

13

Toro 289-34

NIPPLE-PIPE

$34.99

$

Usually ships in 3-6 days

0

14

Toro 288-2

CAP-PIPE

$16.99

$

In Stock, only 1 left!

0

15

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

16

Toro 3234-7

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

17

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

18

Toro 78-2920

BALL-JOINT
(Superseded to 94-7572)

$34.99

$

In Stock, only 2 left!

0

19

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

20

Toro 63-2940

CHAIN

$66.99

$

Usually ships in 3-6 days

0

21

Toro 66-8030

TRACTION GEARCASE ASM

$1930.99

$

Usually ships in 3-6 days

0

22

Toro 63-2990-03

TRANSMISSION FRAME ASM

$

$

Not available

23

Toro 3290-461

WASHER-SPRING

$5.49

$

In Stock, only 2 left!

0

24

Toro 95-7947

CAP-PLUG

$

$

Not available

25

Toro 11-0590

SCREW-HWHTF
(Superseded to 32144-102)

$3.49

$

Usually ships in 3-6 days

0

27

Toro 94-2782

CAP-WIRE, LITE

$3.49

$

Usually ships in 3-6 days

0
