38540 (824) - Toro 24" Power Shift Snow Thrower (SN: 069000001 - 069999999) (1996) ENGINE TECUMSEH MODEL HMSK80-155386T Parts Diagram

24" Power Shift Snow Thrower

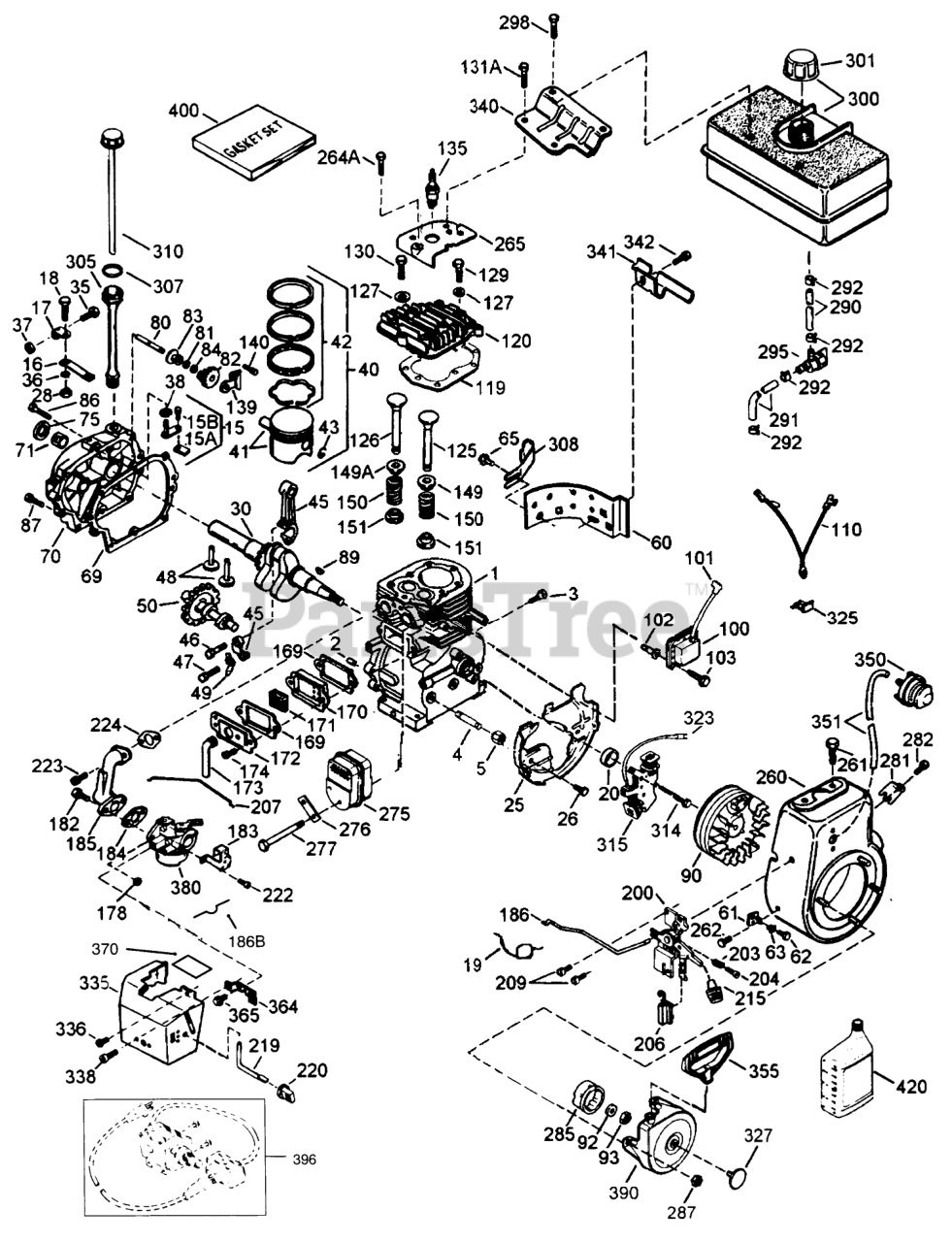

ENGINE TECUMSEH MODEL HMSK80-155386T Parts Diagram

  • Title

1

Tecumseh 35385

Cylinder Asm (Incl. Ref. #2, 20, & 72)

$311.99

$

Usually ships in 3-12 days

0

2

Tecumseh 27652

Pin-Dowel

$2.49

$

Usually ships in 3-12 days

0

3

Tecumseh 650820

Screw (1/4-20x1/2)

$3.99

$

In Stock, Qty 15

0

4

Toro XXXXX

Nipple-Pipe

$

$

Currently unavailable

5

Tecumseh 30969

Cap-Pipe

$5.49

$

In Stock, only 1 left!

0

15

Tecumseh 30699C

Governor (Incl. Ref. #15A & 15B)

$17.99

$

In Stock, only 1 left!

0

15A

Tecumseh 30700

Yoke-Governor

$1.99

$

In Stock, only 1 left!

0

15B

Tecumseh 650494

Screw (6-40x5/16)

$1.99

$

Usually ships in 3-12 days

0

16

Tecumseh 33454

Lever-Governor
(Superseded to 33454A)

$10.99

$

In Stock, only 1 left!

0

17

Tecumseh 29916

Clamp-Lever, Governor

$1.99

$

In Stock, only 2 left!

0

18

Tecumseh 650548

Screw
(Superseded to 651018)

$1.99

$

In Stock, Qty 9

0

19

Tecumseh 34663

Spring-Throttle

$1.99

$

In Stock, only 1 left!

0

20

Tecumseh 35319

Seal-Oil

$4.99

$

In Stock, only 2 left!

0

25

Tecumseh 36460

Baffle-Housing, Blower
(Superseded to 37853)

$11.99

$

In Stock, only 1 left!

0

26

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 2 left!

0

28

Tecumseh 30322

Nut-Lock

$1.99

$

Usually ships in 3-12 days

0

30

Tecumseh 35571A

Crankshaft

$166.99

$

Usually ships in 3-12 days

0

35

Tecumseh 29826

Screw

$1.99

$

In Stock, only 4 left!

0

36

Tecumseh 29918

Washer-Lock

$1.99

$

In Stock, Qty 5

0

37

Tecumseh 29216

Nut-Lock

$1.99

$

In Stock, only 3 left!

0

38

Tecumseh 29642

Ring-Retaining

$100.99

$

In Stock, only 2 left!

0

40

Tecumseh 34552

Piston, Pin & Ring Set (Std.)
(Superseded to 40049)

$

$

Not available

40

Tecumseh 34553

Piston, Pin & Ring Set (.010" OS)
(Superseded to 40012)

$

$

Not available

40

Tecumseh 34554

Piston, Pin & Ring Set (.020" OS)

$

$

Not available

41

Tecumseh 34329A

Piston & Pin Asm (Std.) (Incl. Ref. #43)
(Superseded to 40049)

$

$

Not available

41

Tecumseh 34330A

Piston & Pin Asm (.010" OS) (Incl. Ref. #43)
(Superseded to 40012)

$

$

Not available

41

Tecumseh 34331A

Piston & Pin Asm (.020" OS) (Incl. Ref. #43)

$

$

Not available

42

Tecumseh 34332

Ring Set (Std.)
(Superseded to 40049)

$

$

Not available

42

Tecumseh 34333

Ring Set (.010" OS)

$

$

Not available

42

Tecumseh 34334

Ring Set (.020" OS)

$38.99

$

In Stock, only 1 left!

0

43

Tecumseh 27888

Ring-Retaining, Piston Pin

$1.99

$

Usually ships in 3-12 days

0

45

Tecumseh 35373A

Connecting Rod Asm (Incl. Ref. #46, 47, & 49)
(Superseded to 36897A)

$48.99

$

In Stock, only 1 left!

0

46

Tecumseh 650908

Bolt-Rod
(Superseded to 651063)

$1.99

$

In Stock, only 3 left!

0

47

Tecumseh 650882

Bolt-Rod
(Superseded to 651033A)

$

$

Not available

48

Tecumseh 34034

Lifter-Valve
(Superseded to 34034A)

$10.99

$

In Stock, only 3 left!

0

49

Tecumseh 35374

Dipper-Oil

$1.99

$

In Stock, only 4 left!

0

50

Tecumseh 35375

Camshaft (MCR)

$

$

Not available

60

Tecumseh 33273A

Extension-Housing, Blower

$7.49

$

Usually ships in 3-12 days

0

61

Tecumseh 34126

Bracket

$1.99

$

Usually ships in 3-12 days

0

62

Tecumseh 650760

Screw (8-32 x 3/8)

$1.99

$

In Stock, only 3 left!

0

63

Tecumseh 28545

Grommet

$1.99

$

In Stock, Qty 5

0

65

Tecumseh 650128

Screw

$5.49

$

In Stock, only 2 left!

0

69

Tecumseh 35262A

Gasket-Cover, Cylinder
(Superseded to 37342)

Note: Included in Gasket Set 36450

$11.99

$

In Stock, only 1 left!

0

70

Tecumseh 35376

Cylinder Cover (Incl. Ref. #71, 75, & 80)
(Superseded to 38027)

$

$

Not available

71

Tecumseh 35377

Bushing-Crankshaft

$11.99

$

In Stock, only 3 left!

0

75

Tecumseh 35319

Seal-Oil

$4.99

$

In Stock, only 2 left!

0

80

Tecumseh 31845

Shaft-Governor
(Superseded to 37587)

$

$

Not available

81

Tecumseh 30590A

Washer-Flat

$1.99

$

In Stock, Qty 7

0

82

Tecumseh 35378

Governor Gear Asm (Incl. Ref. #81)

$3.99

$

Usually ships in 3-12 days

0

83

Tecumseh 30588A

Spool-Governor

$1.99

$

In Stock, only 4 left!

0

84

Tecumseh 29193

Ring-Retaining

$1.99

$

In Stock, only 4 left!

0

86

Tecumseh 650833

Screw (1/4-20x1-3/16)

$1.99

$

Usually ships in 3-12 days

0

87

Tecumseh 650832

Screw (1/4-20x1-11/16)

$

$

Not available

89

Tecumseh 32589

Key-Flywheel

$1.49

$

In Stock, Qty 6

0

90

Tecumseh 611093

Flywheel ASM

$

$

Not available

92

Tecumseh 650880

Washer-Belleville

$1.99

$

In Stock, only 3 left!

0

93

Tecumseh 650881

Nut-Flywheel

$1.99

$

Usually ships in 3-12 days

0

100

Tecumseh 35135

Solid State ASM
(Superseded to 35135B)

$62.99

$

Usually ships in 3-12 days

0

101

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, only 3 left!

0

102

Tecumseh 650872

Stud
(Superseded to 651024)

$3.99

$

In Stock, only 2 left!

0

103

Tecumseh 651007

Screw (T-15, 10-24 x 15/16)

$1.99

$

In Stock, only 4 left!

0

110

Tecumseh 35253

Ground Wire

$6.49

$

In Stock, only 2 left!

0

119

Tecumseh 36448

Gasket-Head, Cylinder

Note: Included in Gasket Set 36450

$9.99

$

In Stock, only 2 left!

0

120

Tecumseh 36449

Head-Cylinder

$

$

Not available

125

Tecumseh 27878A

Exhaust Valve (Std.) (Incl. Ref. #151)

$23.99

$

Usually ships in 3-12 days

0

125

Tecumseh 27880A

Exhaust valve (1/32" OS) (Incl. Ref. #151)

$

$

Not available

126

Tecumseh 34035

Intake Valve (Std.) (Incl. Ref. #151)

$15.99

$

In Stock, only 1 left!

0

126

Tecumseh 34036

Intake Valve (1/32" OS) (Incl. Ref. #151)

$

$

Not available

127

Tecumseh 650691

Washer-Flat

$1.99

$

Usually ships in 3-12 days

0

129

Tecumseh 650727

Screw (5/16-18x1-25/32)

$3.99

$

In Stock, only 1 left!

0

130B

Tecumseh 6021A

Screw (5/16-18x1-1/2)

$1.99

$

In Stock, only 3 left!

0

131A

Tecumseh 650713

Screw
(Superseded to 651055)

$1.99

$

In Stock, Qty 5

0

135

Tecumseh 35395

Spark Plug-Resistor (R J19 L M)

$3.49

$

In Stock, Qty 16

0

139

Tecumseh 33369

Bracket-Gear, Governor

$8.49

$

In Stock, only 1 left!

0

140

Tecumseh 650836

Screw (10-24x1/2)
(Superseded to 650965)

$

$

Not available

149

Tecumseh 27882

Cap-Spring, Valve

$1.99

$

In Stock, only 4 left!

0

149A

Tecumseh 35862

Cap-Spring, Valve

$9.49

$

Usually ships in 3-12 days

0

150

Tecumseh 27881

Spring-Valve

$3.99

$

In Stock, only 2 left!

0

151

Tecumseh 32581

Keeper-Spring, Valve

$6.49

$

In Stock, Qty 10

0

169

Tecumseh 27896A

Gasket-Cover, Valve

Note: Included in Gasket Set 36450

$1.49

$

In Stock, Qty 8

0

170

Tecumseh 28423

Body-Breather

$13.99

$

In Stock, only 1 left!

0

171

Tecumseh 28424

Element-Breather

$3.99

$

In Stock, only 3 left!

0

172

Tecumseh 28425

Cover-Valve

$7.49

$

In Stock, only 1 left!

0

173

Tecumseh 35350

Tube-Breather

$6.49

$

Usually ships in 3-12 days

0

174

Tecumseh 650128

Screw

$5.49

$

In Stock, only 2 left!

0

178

Tecumseh 29752

Nut and Lock Washer (1/4-28)

$1.99

$

In Stock, only 1 left!

0

182

Tecumseh 30088A

Screw (1/4-28x1)

$1.99

$

In Stock, only 4 left!

0

183A

Tecumseh 34587

Bracket-Choke
(Superseded to 34587B)

$9.49

$

In Stock, only 1 left!

0

184

Tecumseh 33263

Gasket-Carburetor To Intake Pipe

Note: Included in Gasket Set 36450

$1.49

$

In Stock, Qty 20+

0

185

Tecumseh 33877

Pipe-Intake

$48.99

$

Usually ships in 3-12 days

0

186

Tecumseh 34667

Link-Governor

$1.99

$

Usually ships in 3-12 days

0

186A

Tecumseh 36652

Spring-Choke

$7.49

$

In Stock, Qty 5

0

200

Tecumseh 34677

Control Bracket (Incl. Ref. #19, 203, 204 & 206)

$54.99

$

In Stock, only 1 left!

0

203

Tecumseh 31342

Spring-Compression

$5.99

$

In Stock, only 1 left!

0

204

Tecumseh 650549

Screw
(Superseded to 651029)

$1.99

$

In Stock, only 2 left!

0

206

Tecumseh 610973

Terminal

$3.99

$

In Stock, Qty 5

0

207

Tecumseh 33878

Link-Throttle

$6.99

$

In Stock, only 2 left!

0

209

Tecumseh 650821

Screw (10-32 x 1/2)

$1.99

$

In Stock, only 3 left!

0

215

Tecumseh 35440

Knob-Control

$3.99

$

In Stock, only 1 left!

0

219

Tecumseh 34586

Rod-Choke

$5.49

$

In Stock, only 1 left!

0

220

Tecumseh 35438

Knob-Control

$3.99

$

In Stock, only 2 left!

0

222

Tecumseh 28820

Screw (10-32 x 1/2)
(Superseded to 651081)

$4.49

$

In Stock, only 3 left!

0

223

Tecumseh 650378

Screw (T-30, 5/16-18x1-3/32)

$1.99

$

In Stock, only 3 left!

0

224

Tecumseh 27915A

Gasket-Pipe, Intake

Note: Included in Gasket Set 36450

$5.99

$

In Stock, Qty 19

0

260

Tecumseh 35447A

Housing-Blower
(Superseded to 37961)

$

$

Not available

261

Tecumseh 650788

Screw (5/16-18x3/4)

$1.99

$

In Stock, only 1 left!

0

262

Tecumseh 29747B

Screw

$1.99

$

In Stock, Qty 9

0

264A

Tecumseh 650802

Screw (1/2-20x5/8)

$1.99

$

In Stock, Qty 5

0

265

Tecumseh 33272B

Cover-Cylinder Head
(Superseded to 33272D)

$7.49

$

Usually ships in 3-12 days

0

275

Tecumseh 35056

Muffler

$62.99

$

In Stock, only 2 left!

0

276

Tecumseh 31588

Plate-Locking

$4.99

$

In Stock, Qty 20+

0

277

Tecumseh 651007

Screw (T-15, 10-24 x 15/16)

$1.99

$

In Stock, only 4 left!

0

281

Tecumseh 33013

Screw

$3.99

$

Usually ships in 3-12 days

0

282

Tecumseh 650760

Screw (8-32 x 3/8)

$1.99

$

In Stock, only 3 left!

0

285

Tecumseh 35985B

Cup-Starter
(Superseded to 35985C)

$13.99

$

In Stock, only 1 left!

0

287

Tecumseh 29752

Nut and Lock Washer (1/4-28)

$1.99

$

In Stock, only 1 left!

0

290

Tecumseh 29774

Line-Fuel (8.62)

$34.99

$

In Stock, Qty 6

0

291

Tecumseh 30705

Line-Fuel

$16.99

$

In Stock, only 2 left!

0

292

Tecumseh 26460

Clamp-Line, Fuel

$1.49

$

In Stock, Qty 20+

0

295

Tecumseh 35857

Valve-Shut Off, Fuel

$13.99

$

Usually ships in 3-12 days

0

298

Tecumseh 650665

Screw (1/4-15x7/8)

$1.99

$

In Stock, only 3 left!

0

300

Tecumseh 34156A

Fuel Tank (Incl. Ref. #292 & 301)

$54.99

$

Usually ships in 3-12 days

0

301

Tecumseh 35355

Cap-Fuel
(Superseded to 37845)

$8.99

$

In Stock, Qty 10

0

305

Tecumseh 35554

Tube-Fill, Oil

$19.99

$

In Stock, only 1 left!

0

307

Tecumseh 35499

O-Ring

$1.49

$

In Stock, only 3 left!

0

308

Tecumseh 35540

Clip-Tube, Fill

$1.99

$

In Stock, only 2 left!

0

310

Tecumseh 36205

Gauge Oil ASM

$10.99

$

In Stock, only 1 left!

0

314

Tecumseh 650873

Screw (1/4-20 x 3/4)

$1.99

$

Usually ships in 3-12 days

0

315

Tecumseh 611111

Alternator Coil (18 Watt) (Incl. Ref. #323)

$68.99

$

Usually ships in 3-12 days

0

323

Tecumseh 611118

Terminal

$1.99

$

Usually ships in 3-12 days

0

325

Tecumseh 29443

Clip-Wire

$1.99

$

In Stock, Qty 5

0

327

Tecumseh 35392

Plug Starter

$1.99

$

Usually ships in 3-12 days

0

335

Tecumseh 35057A

Cover-Carburetor
(Superseded to 36547A)

$70.99

$

In Stock, only 1 left!

0

336

Tecumseh 650765

Screw (10-32x1/2)

$1.49

$

In Stock, only 4 left!

0

338

Tecumseh 28942

Screw (10-32 x 3/8)

$1.49

$

In Stock, only 4 left!

0

340

Tecumseh 34155

Bracket-Tank, Fuel

$

$

Not available

341

Tecumseh 34154

Bracket-Tank, Fuel (Black)

$

$

Not available

342

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 2 left!

0

350

Tecumseh 570682

Primer-Asm
(Superseded to 570682A)

$10.99

$

In Stock, Qty 6

0

351

Tecumseh 32180C

Line-Primer

$6.99

$

In Stock, only 4 left!

0

355

Tecumseh 590574

Handle-Starter, Mitten Grip

$5.49

$

In Stock, only 1 left!

0

364

Tecumseh 33377

Bracket-Carburetor
(Superseded to 37659)

$

$

Not available

365

Tecumseh 650767

Screw (8-32x27/64)

$1.49

$

In Stock, only 4 left!

0

380

Tecumseh 632334A

Carburetor (Incl. Ref. #184)

$136.99

$

Usually ships in 3-12 days

0

390

Tecumseh 590733

Starter-Rewind
(Superseded to 590789)

$87.99

$

In Stock, only 1 left!

0

396

Tecumseh 33329D

Starter-Electric (110 Volt)
(Superseded to 33329E)

$

$

Not available

400

Tecumseh 36450A

Gasket Set
(Superseded to 36450C)

$21.99

$

In Stock, only 1 left!

0

420

Tecumseh 730226

Oil-Engine (SAE 5W30)
(Superseded to 730226B)

$13.99

$

In Stock, Qty 10

0
